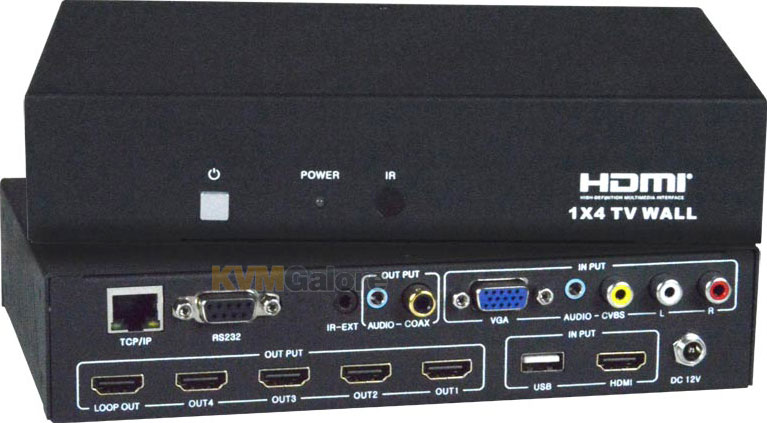

2x2 Multi-Format HD Video-Wall Controller

Model No. SPLITMUX-VWC-4HDLC In stock

2x2 Multi-Format HD Video-Wall Controller
Buy this item and earn 1,059 ClubPoints.

SPLITMUX-VWC-4HDLC: Display the video from one HDMI, VGA or composite video source across four 1080p HDMI monitors

cascade two processors to create video walls up to 3x3 (9 screens)

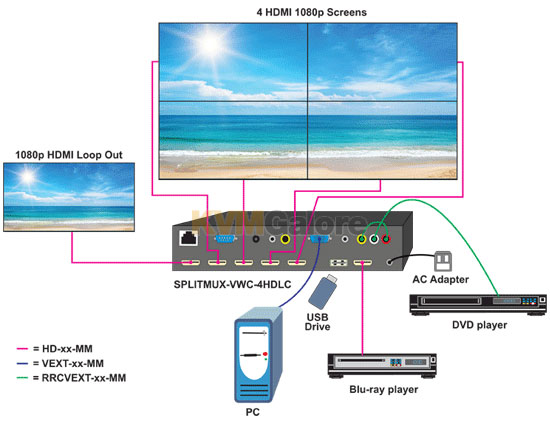

SPLITMUX® Multi-Format HD Video-Wall Controller allows you to display the video from one HDMI, VGA or composite video source across four 1080p HDMI monitors.

Two processors can be cascaded to create a video wall up to 3x3 (9 screens). Additionally, it can be used as a video splitter, video converter and video presentation switch.

HDMI Features Supported
• x.v.Color, sYCC601 color, Adobe RGB color and Adobe YCC601 color
• Dolby TrueHD, DTS-HD Master Audio, Dolby Digital, and DTS
• Bandwidth up to 225 MHz (6.75Gbps)
• Lip Sync

Features and Benefits
• Supports video wall configurations with displays in landscape or portrait orientations
• Landscape (horizontal) orientation: 1x2, 1x3, 1x4, 2x1, 3x1, 4x1, 2x2
• Portrait (vertical) orientation: 1x2, 1x3, 1x4
• Cascade two processors to create video walls with up to 9 screens - 2x3, 3x2, 2x4, 4x2, and 3x3
• Versatile bezel compensation ability accommodates any screen frame width, and allows for accurate display of the image
• Independent video in to video out resolution
• Supports HDTV resolutions to 1080p
• HDCP compliant
• Fluid, real-time video performance with 60 frames per second (fps)
• Integrated USB media player - play content from a portable USB drive
• Any DVI source or display can be connected by using the DVI-HD-xx-MM cable (not included)
• Control the video wall controller through Ethernet, RS232 serial port, or IR remote
• Ideal for a wide range of digital signage applications, including: retail stores, restaurants, corporate lobbies, entertainment venues, trade shows, airports, and more
• Cables not included

Required output cables
4x HDMI, male-male

Required input cables
1x HDMI, male-male
or
1x VGA+audio, male-male
or
1x VGA, male-male + 3.5mm audio, male-male
or
1x Composite+audio, male-male
