UNIMUX Dual-Monitor 4K DisplayPort USB KVM Switch, 2-Ports

Model No. UNIMUX-DP4K-2DH In stock

UNIMUX Dual-Monitor 4K DisplayPort USB KVM Switch, 2-Ports
Buy this item and earn 289 ClubPoints.

UNIMUX-DP4K-2DH: 2-port dual-monitor 4K DisplayPort USB KVM switch with built-in USB 3.2 hub

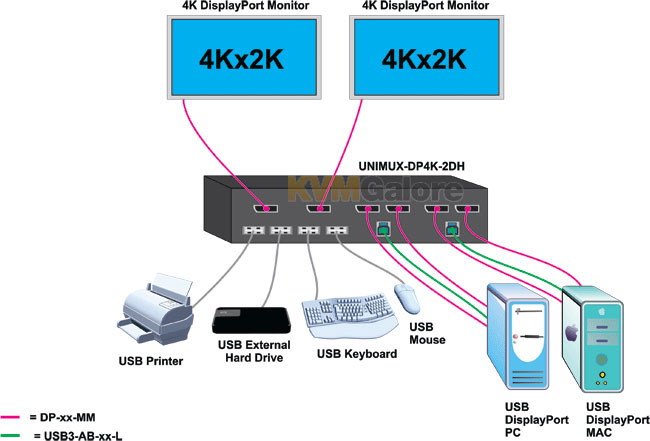

control two dual-head Ultra-HD 4K 60Hz DisplayPort USB computers with one USB keyboard/mouse and two 4K monitors


• Dual Head
• Ultra-HD 4K 60Hz 4:4:4 Resolution
• 21.6 Gbps
• DisplayPort 1.2
• USB 3.2

UNIMUX™ dual-monitor 4K DisplayPort USB KVM switch with built-in USB 3.2 hub allows a user to control two dual-head Ultra-HD 4KK 60Hz 4:4:4 USB computers with one USB keyboard, USB mouse and two 4K DisplayPort monitors.

Supported DisplayPort Features
• DisplayPort 1.2
• Dolby True HD, DTS HD Master, and stereo audio
• YCbCr 4:4:4, YCbCr 4:2:2, and RGB
• Up to 12-bit Color
• Bandwidth up to 21.6 Gbps

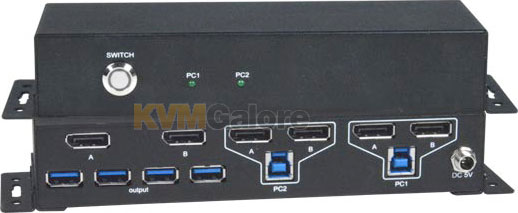

Front Panel Interface
• Press the button on the front panel interface to switch between ports
• LEDs indicate currently selected port

Keyboard Control
• Use the keyboard commands the switch to select ports
• Double press "Scroll Lock" or "Num Lock" to switch between ports
• Supported on Windows computers only

Features and Benefits
• Supports Ultra-HD 4K resolution up to 3840x2160 @ 60Hz YCbCr 4:4:4, and HDTV resolutions to 1080p @ 144Hz
• HDCP compliant
• Compatible with dual-head USB computers (PC and Mac)
• Control the switch through the front panel button or keyboard commands (eyboard commands available on Windows computers only)
• Four transparent USB 3.2 ports for connecting USB devices such as keyboards, mice, printers, game controllers, USB flash drives, touch screen monitors, whiteboards, etc.
• Supports SuperSpeed (5 Gbps), high-speed (480 Mbps), full-speed (12 Mbps), or low-speed (1.5 Mbps) USB devices
• Backwards compatible with USB 2.0/1.1
• EDID pass-through supported
• Quick and easy plug-and-play installation – no drivers required
• Integrated mounting brackets for easy surface/wall mounting
• Cables are not included

Required Cables (per Port)
2x DisplayPort, male to male
1x USB Type-A to Type-B

Note: When switching between computers, the screen layout will not be as you leftit – all open windows will be pushed to the top left corner of the main display
