E-PLSD: View sensor value, name/location, unit of measurement, and alert status

for any/all sensors connected to E-2D/5D/16D

ENVIROMUX programmable LED sensor display allows users to view the data from any or all NTI ENVIROMUX^® sensors configured on an E-2D/5D/16D, including cascaded units, internal sensors, external sensors, digital inputs, output relays, IP devices, SNMP sensors, power supplies, events, and smart alerts.

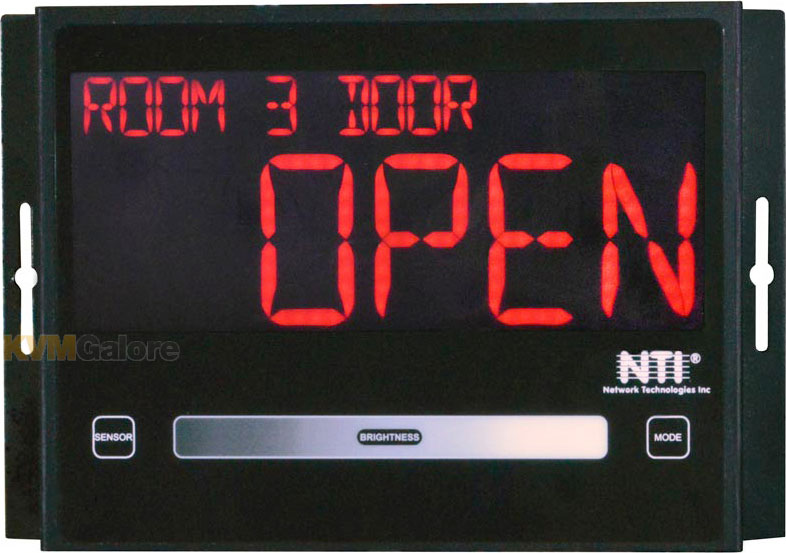

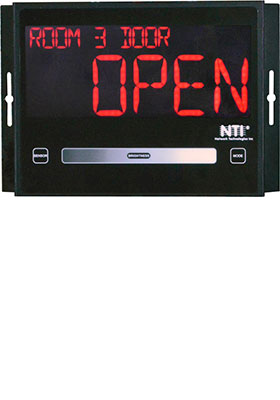

ENVIROMUX programmable LED sensor display features 14-segment LED characters. The LED display characters will be green when sensor status is normal, yellow when a sensor is in non-critical alert (warning), and red when in critical alert status (alarm).

The LED display window is 7.62W x 3.09H in. There are five characters for sensor value reading (1.09W x 2.02H in.) and fourteen characters for displaying sensor name/location which are customizable through E-2D/5D/16D web interface. The display also features three characters for indicating unit of measure for the sensor value being displayed.

Touch-Sensitive Buttons
• Use the "SENSOR" button to manually go to the next sensor to be displayed - it stops auto-scan for 30 seconds, and then resumes auto-scan
• Use the "BRIGHTNESS" button to adjust the LED intensity/color
• Use the "MODE" button to switch C to F for temperature sensors

Configure/Program the LED Display Using E-2D/5D/16D Web Interface
• Drag and drop feature for user to select desired sensors to be shown on the LED display
• Allows user to set sensor order to be displayed
• User-selectable display duration for each sensor (in seconds) before it switches to the next sensor status being displayed (AKA "Scanning") - Default: 10 seconds
• Enable sensors in warning/alarm status to be the only ones displayed/rotated
• Will rotate/scan the sensors in normal status once all sensors in warning/alarm have been cleared
• Sensor configuration pages feature sensor nickname field – nickname is shared with any/all LED displays
• Nickname supports 14 characters, that way sensor name does not scroll
• If no nickname is entered, the LED Display will use the description, which will scroll if longer than 14 characters
• User-selectable scrolling time - Default: 300ms per character

One female RJ45 port for connecting an E-TRHM-7 temperature/humidity sensor
• E-TRHM-7 sensor can be extended up to 500 feet from E-PLSD using 24 AWG CAT-5/5e/6 cable
• Applications from -4 to 140°F (-20 to 60°C) and 0 to 90% relative humidity
• Temperature accuracy: ±0.90°F (±0.50°C) for -4 to 14°F (-20 to -10°C); ±0.72°F (±0.40°C) for 14 to 140°F (-10 to 60°C)
• Humidity accuracy (at 86°F/30°C): 10 to 80% relative humidity, ±3%; 80 to 90% relative humidity, ±4%

Compatible with E-2D/5D/16D
• Interfaces with the E-2D/5D/16D via the RJ45 sensor port
• Supports CAT-5/5e/6/6a cable (24 AWG) up to 1000 feet (305 m) (not included)
