ENVIROMUX Vertical Liquid Level Float Switch, Stainless Steel, 10cm - Model No. E-LLS-SF-10CM - KVMGalore® | Tech Solutions Made Easy™
NTI
  • MSRP $30.00
  • Savings$0.01
  • Our Price $29.99

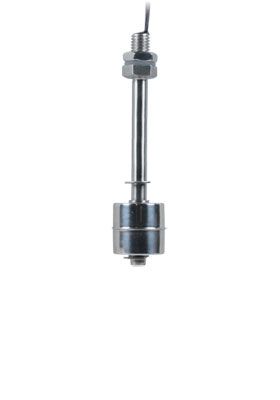

ENVIROMUX Vertical Liquid Level Float Switch, Stainless Steel, 10cm

Model No. E-LLS-SF-10CM In stock

ENVIROMUX Vertical Liquid Level Float Switch, Stainless Steel, 10cm
Buy this item and earn 30 ClubPoints.

E-LLS-SF-10CM: ENVIROMUX vertically-mounted float switch

for installing inside a tank, top or bottom


Magnets within the float actuate a highly reliable and repeatable hermetically sealed reed switch as the float rises and lowers with liquid level.

Configure for normally open or normally closed circuit connection.

When installed on top of the tank and used for sensing when liquid rises to a certain level (default setting), the sensor will be "normally closed" and will open when the liquid reaches that level.

When installed on the bottom of the tank and used for sensing the drop in the liquid level beyond a certain point, the sensor will be "normally open" and will close when the liquid drops to that level.

To change the default setting to "normally open", simply remove the bottom clip; remove, flip and replace the float; and reinstall the clip.

• Single-pole single-throw (SPST) circuitry
• Includes two gel-filled butt splice connectors for extending the cable length up to 1,000 feet
• Connects to digital input or RJ45 sensor port on an ENVIROMUX 2D/5D/16D; Mini; Micro
