RACKMUX-4K17-N-4HD18GB: Rack-mount 4K LCD KVM drawer with a built-in 4-port KVM switch

to control up to four Ultra-HD 4K/60 18Gbps HDMI/USB computers

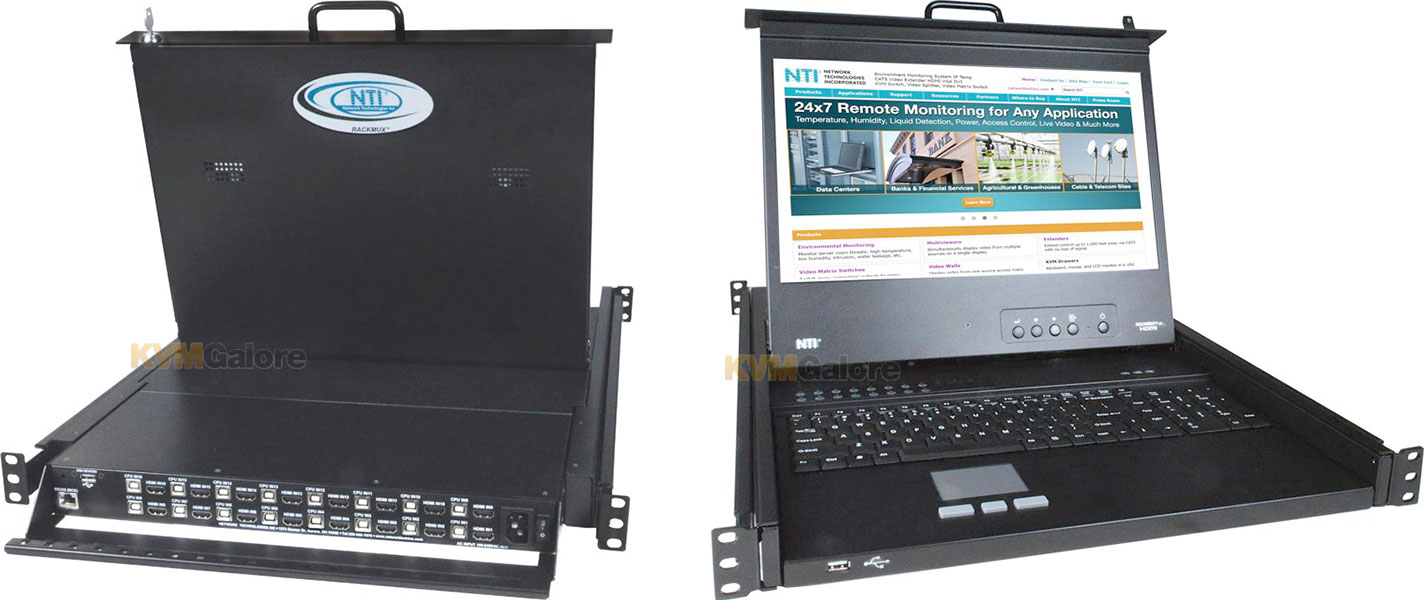

RACKMUX^® 4K KVM drawer with built-in 4K 60Hz HDMI USB KVM switch combines a rack-mount 4K LCD monitor, keyboard, touchpad mouse and a 4K 60Hz HDMI USB KVM switch in a space-saving 1RU industrial strength drawer.

Features and Benefits
• Forward-folding 17.3" TFT/LCD monitor.
• Supports Ultra-HD 4K (3840x2160 @ 60Hz RGB/YUV 4:4:4)
• Compatible with USB computers (PC and Mac) with HDMI outputs
• Multiplatform support: Windows 7 and later, Windows Server 2008 and later, Linux, FreeBSD, and Mac OS 10 and later
• Control the switch through the front panel buttons, keyboard commands, OSD, or RS232
• Torque-friction hinges – monitor does not wobble, spring, or slam shut
• Compact, heavy-duty tactile keyboard with 17-key numeric keypad
• Three-button touchpad mouse supports single-finger gestures
• Two transparent USB 2.0 ports for connecting USB devices, such as USB flash drives, printers, CAC card readers, touch screen monitors, whiteboards, etc.
• Rugged steel construction with durable powder coat finish
• LCD auto-shutoff in closed position
• Features NTI's patented true autoboot USB switching – all attached computers can be booted simultaneously
• Drawer locks into place when open to prevent it from sliding in and out of the rack
• Designed to be a one-person job when installing the drawer
• Cable management tray included
• Flash upgradeable

Materials Included
• RACKMUX KVM drawer with integrated UNIMUX HD4K 18GB switch
• IEC power cord, country specific
• Single-person installation mounting kit
• DB9 female-to-RJ45 female adapter
• 5 foot RJ45-to-RJ45 CAT-5 patch cable
• Cable management tray + 4pc #6-32 x 1/4" flat head black screws
• 18 pcs of 6" cable ties
• Cables are not included

Required Cables (per port)
1x HDMI, male-male
1x USB, Type-A to Type-B
