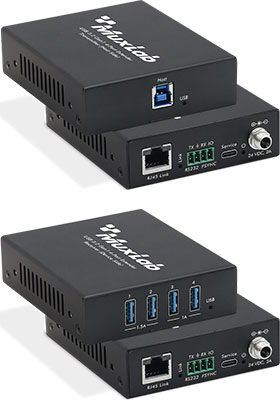

500530: USB 3.2 Gen1 4-port extender kit

328 feet (100 m)

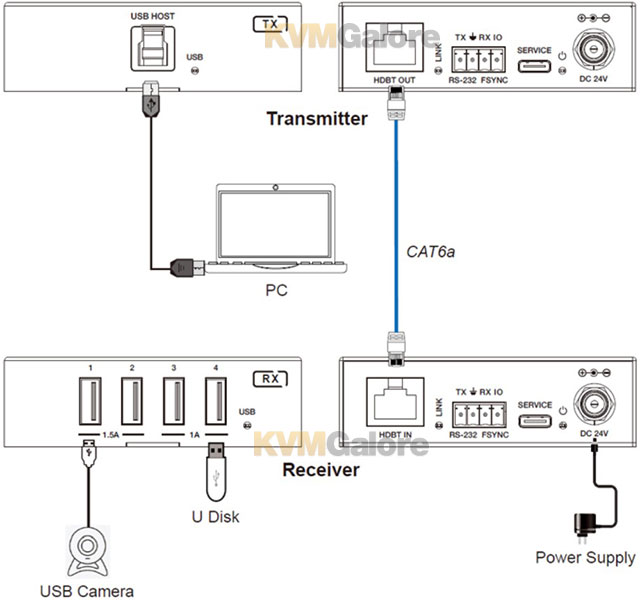

The USB 3.2 Gen1 4-port extender kit (model: 500530) enables USB 3.2 Gen1 connectivity at data rates up to 5Gbps and extends true USB up to 328 feet (100 m) over standard CAT-6a UTP.

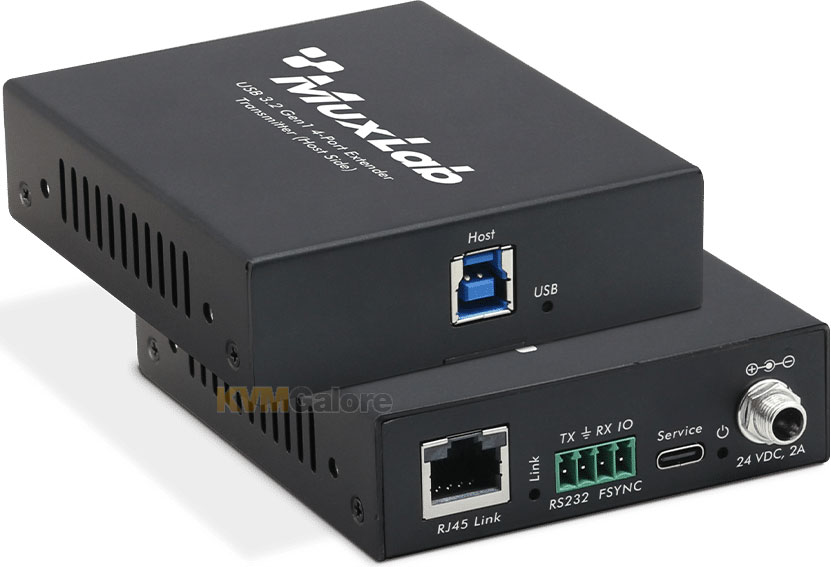

The Transmitter connects to the host via a USB 3.2 Gen1 Type-B (input) cable, and features 1x FSYSNC GPIO input and 1x RS-232 pass-through.

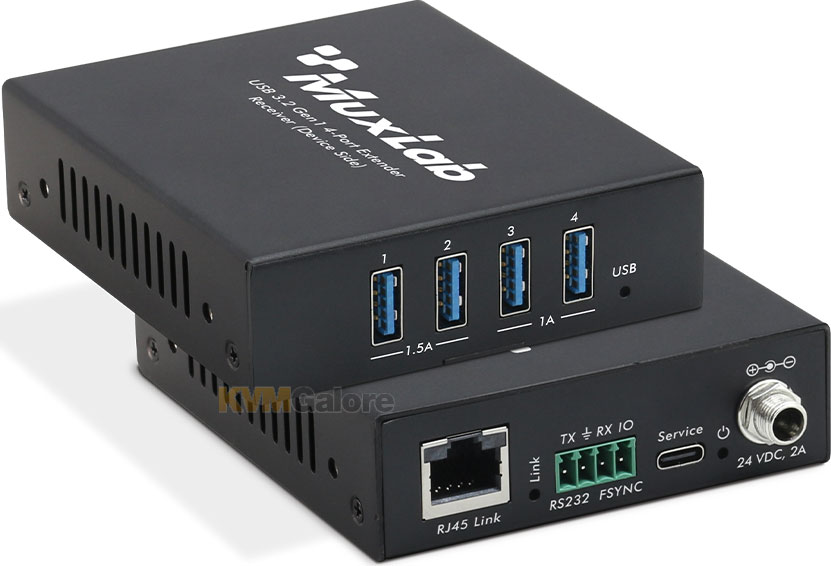

The Receiver features four USB 3.2 Gen1 Type-A ports, 1x FSYSNC GPIO output and 1x RS-232 pass-through.

The device also supports 24V bi-directional PoC.

The USB 3.2 Gen1 4-port extender kit is true plug and play, requires no additional software drivers, and is compatible with all major operating systems.

The unit supports a wide variety of USB extension applications including security, industrial control, digital signage, scientific data acquisition and other implementations of USB standards.

Features and Benefits
• Extension of USB 3.2 Gen1 up to 328 feet (100 m) over CAT-6a cable
• USB 3.2 Gen1 connectivity with data transfer rate up to 5Gbps
• Backwards compatible with USB 2.0 and USB 1.1
• Hardware acceleration for isochronous and bulk transfer
• USB Type-A port 1 and 2 support 5VDC/1.5A, port 3 and 4 support 5VDC/1A on the Receiver
• Support RS-232 pass-through and FSYNC GPIO pass-through (for industry camera use)
• Support bi-directional 24VDC PoC
• Simple plug and play, no driver and setting installation required

Package Contents
1x USB 3.2 Gen1 Transmitter
1x USB 3.2 Gen1 Receiver
1x 24VDC/2A Locking Power Supply
2x 4-pin 3.5mm Phoenix Connectors (Male)
4x Mounting Ears
8x Screws (KM3*4)
Cables are not included

Required Cable Connecting to Host
1x USB Type-A to USB Type-B or
1x USB Type-C to USB Type-B
