500424-US: Send one HDMI audio/video signal to four remote screens

over HDBaseT CATx at 4K/30 Ultra-HD

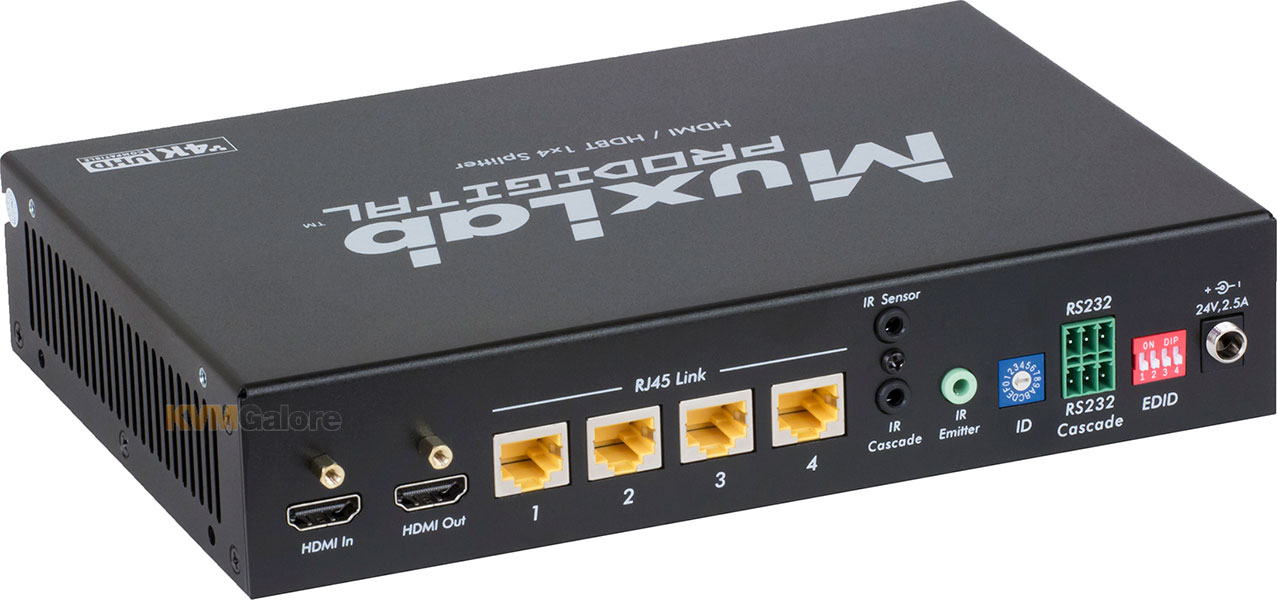

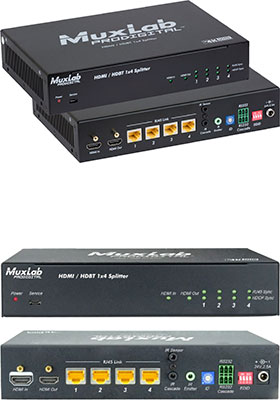

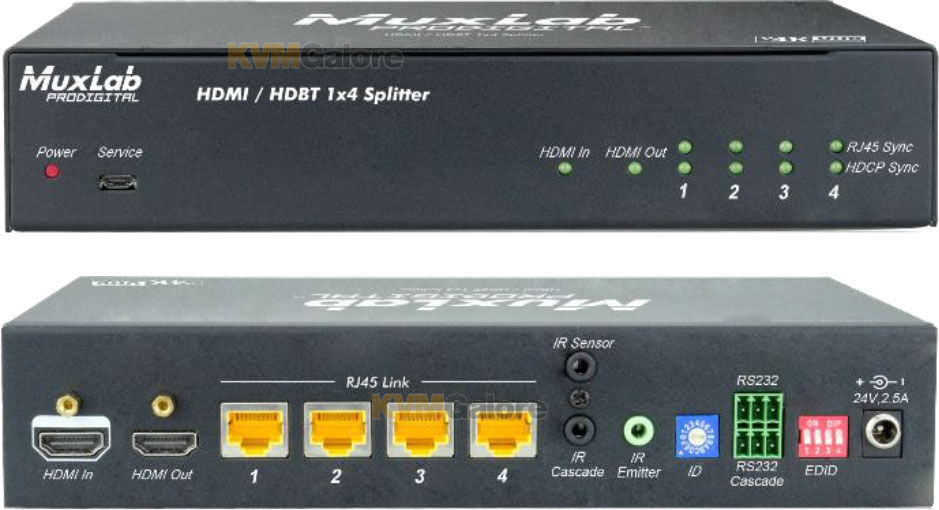

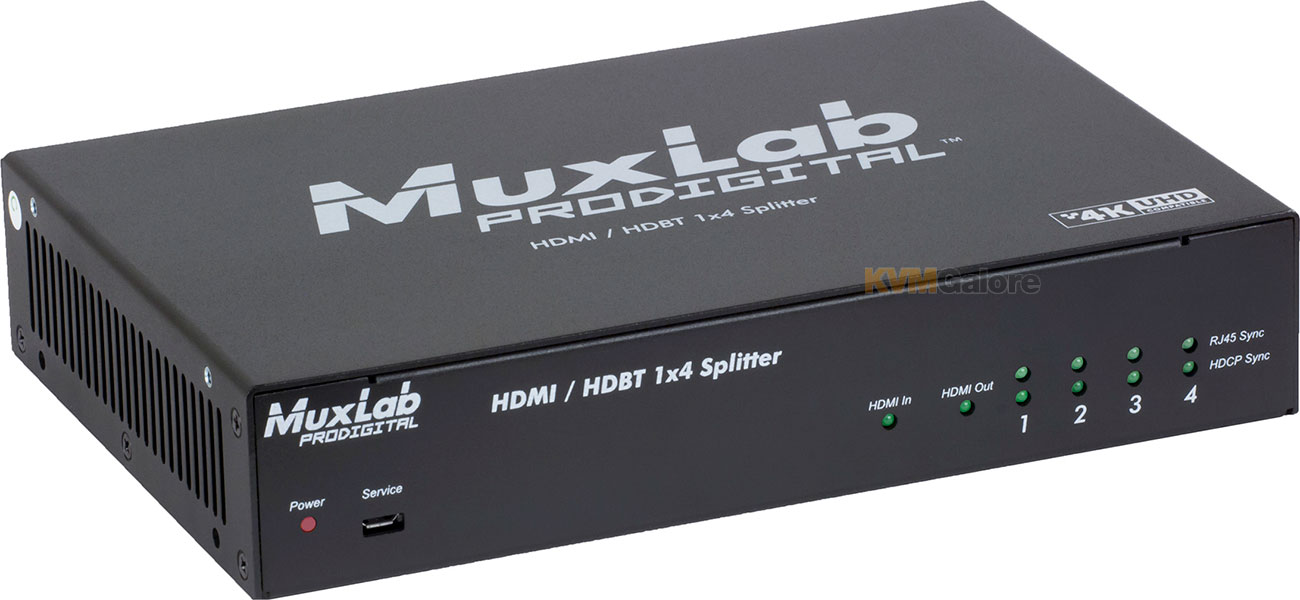

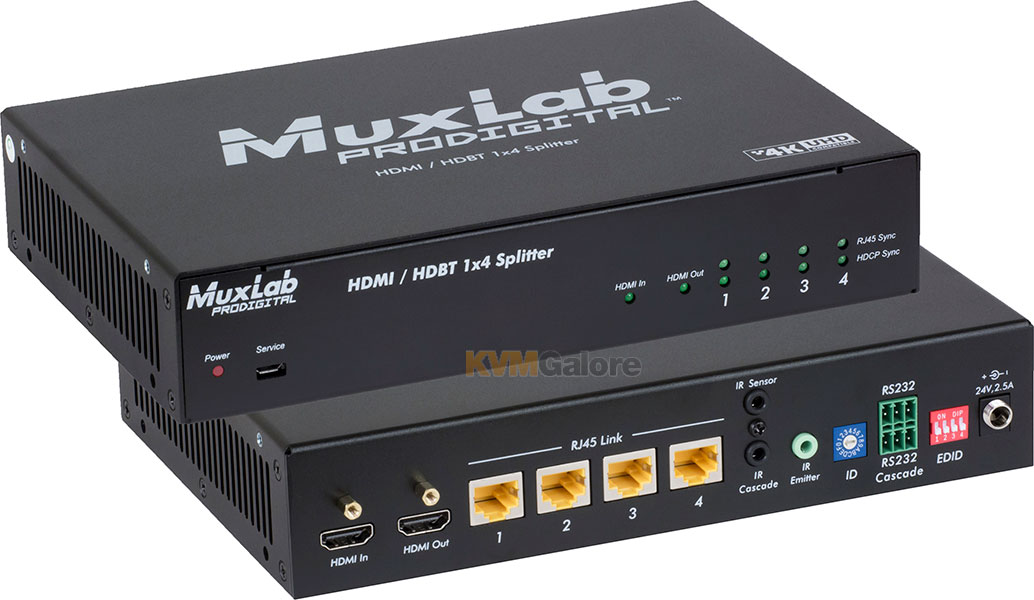

MuxLab's Ultra-HD/4K HDMI/HDBT 1x4 audio/video splitter is an HDBaseT splitter accepting one HDMI input signal and distributing it to 4 HDBaseT remote outputs, plus one HDMI output for local monitoring or for cascading up to four other splitters.

MuxLab's Ultra-HD/4K HDMI/HDBT 1x4 audio/video splitter allows uncompressed 4K @ 30Hz HDMI, RS232 and IR signals to be transmitted over a single CAT-5e/6 cable up to 131 feet (40 m), and a 1080p signal up to 230 feet (70 m).

MuxLab's Ultra-HD/4K HDMI/HDBT 1x4 audio/video splitter is also capable of bi-directional IR transmission and EDID management.

As companion devices for the extended remote HDBaseT signals, the 500454-RX UHD-4K HDMI/RS232 HDBaseT Receiver or the 500451-RX UHD-4K HDMI HDBaseT Receiver (without RS232 support) are recommended (see listing below).

Use the HDMI local output to cascade the HDMI signal up to 4 times with additional 500424 splitters.

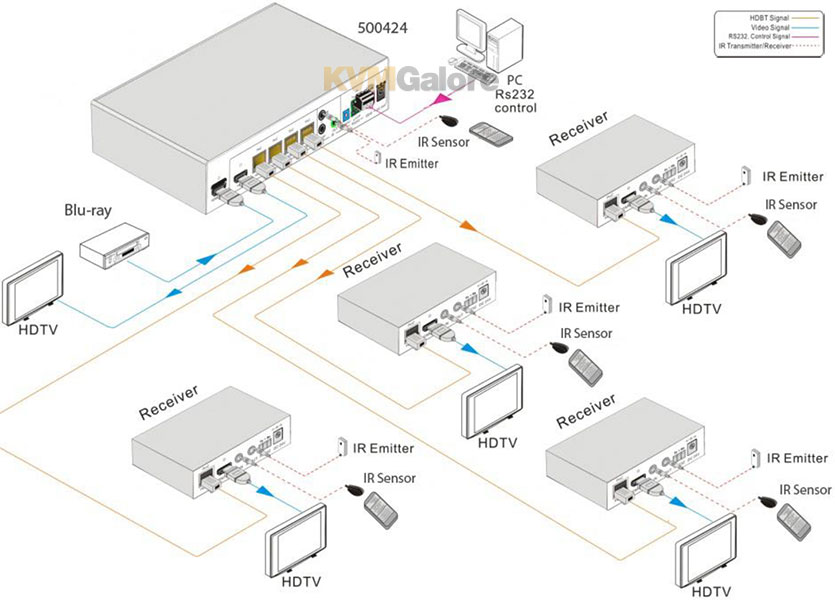

Applications include: Commercial and residential AV systems, classroom training systems, digital signage, boardroom systems, collaborative PC systems, medical information systems.

Features and Benefits
• Distribute one HDMI source to four remote displays
• Compliant with HDMI 1.4 and 3D
• Supports up to 4K @ 30Hz (4:4:4)
• HDCP 1.4 compliant
• Supports PCM, Dolby True HD, and DTS-HD Master Audio
• Transmits 4K @ 30Hz up to 131 feet (40 m)
• Transmits 1080p @ 60Hz up to 230 feet (70 m)
• Supports cascading via local HDMI output up to 4 times with additional 500424 splitters, including IR and RS232 cascading
• Supports bi-directional IR and RS232 control and cascade control of 500424
• Supports bi-directional IR and RS232 control of end devices (i.e. source and display devices)
• Supports RS232 and IR transmission for remote control
• EDID management
• Connectors on rear for neater cabling
• Real time display of working status via LED indicator diagnostics
• Convection cooling, no fan needed
• Anti-static case design, providing good protection for long term and stable performance

Package Content
1x HDMI/HDBaseT 1x4 splitter
2x Mounting brackets
8x Screws
1x 3.5mm male to male audio cable
1x RS232 cable (3 pin Terminal Block to DB9)
1x RS232 cable (3 pin Terminal Block type)
1x 24VDC, 2.5A power adapter
1x Power Cord
4x Plastic Feet

Video cables are not included

Required Cables
1x HDMI, male-male (from source)
1x HDMI, male-male (local display or cascade)
