HDMI over one shielded twisted pair receiver

for up to 295 feet extension

Note: Transmitter units are purchased separately

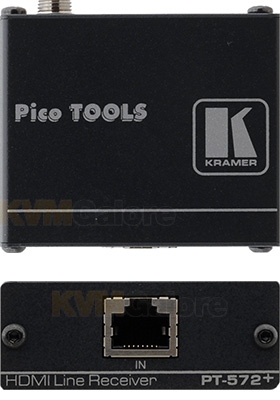

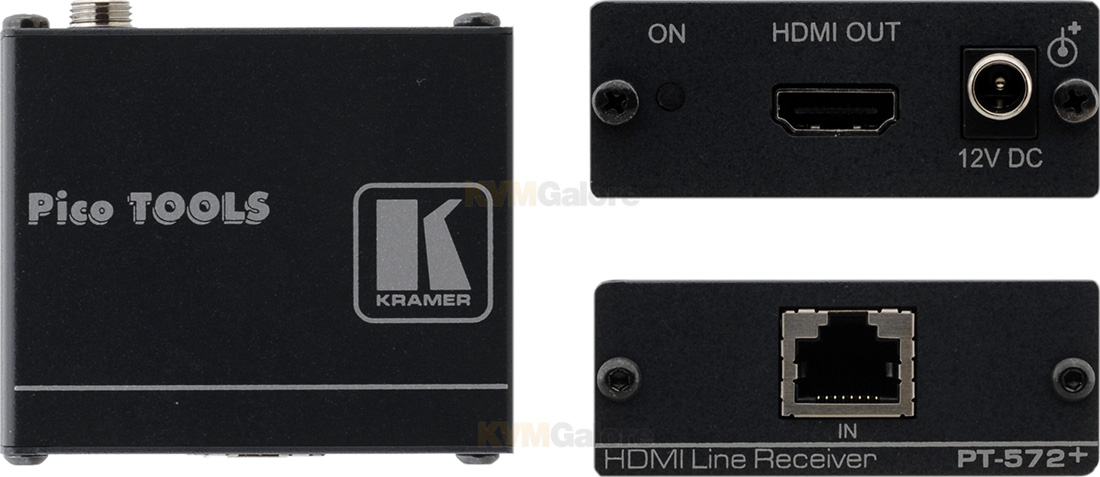

PT-572+ is a DGKat™ twisted pair receiver for HDMI signals. PT-571 transmitter (purchased separately) converts an HDMI signal to a single twisted pair signal and the PT-572+ converts the twisted pair signal back to an HDMI signal.

Applications
• Board, conference, and training rooms
• Presentation systems
• Signal distribution and home theater

System Range
• Up to 295 feet (90 m) at 1080p on shielded BC-DGKat7a23 cable
• Up to 230 feet (70 m) at 1080p on shielded BC-DGKat623 cable
• Up to 100 feet (30 m) at 1080p on shielded BC-DGKat524 cable
• Up to 328 feet (100 m) at 1080i on shielded BC-DGKat7a23 cable
• Up to 295 feet (90 m) at 1080i on shielded BC-DGKat524 cable
• Up to 295 feet (90 m) at 1080i, on shielded BC-DGKat623 cable

Features and Benefits
• Max. Data Rate - 4.95Gbps (1.65Gbps per graphic channel)
• HDTV Compatible
• HDCP Compliant
• DGKat™ Signal Integration - Kramer's unique technology for converting TMDS as well as control and communication to signals that run over twisted pair cables. We strongly recommend using Kramer DGKat™ cables designed specifically for optimum performance
• HDMI Support - x.v.Color™, HDMI Uncompressed Audio Channels, Dolby TrueHD, DTS-HD
• 3D Pass-Through
• Cable - Requires shielded twisted pair (STP) cable. For optimum range and performance use, use Kramer's BC-DGKat524 & BC-DGKat623 cables. Note that the transmission range depends on the signal resolution, graphics card and display used. The distance using non-Kramer CAT-5, CAT-6, and CAT-7 cables may not reach these ranges. Use only shielded cable where both ends of the shield are soldered to ground
• EDID PassThru - Passes EDID signals between the source and display
• Status LED - Lights red when receiving power only, orange when output and power are attached, and yellow when both an active input and output are attached
• Power Connect™ System - A single connection to the transmitter or the receiver powers the system when the devices are within 295 feet (90 m) of each other
• Ultra-Compact Pico TOOLS™ - 4 units can be rack mounted side-by-side in a 1U rack space with the optional RK-4PT rack adapter
