HDMI, bidirectional RS232 and infrared (IR) over one shielded twisted pair receiver

for Up to 295 feet extension

Note: Transmitter unit is purchased separately

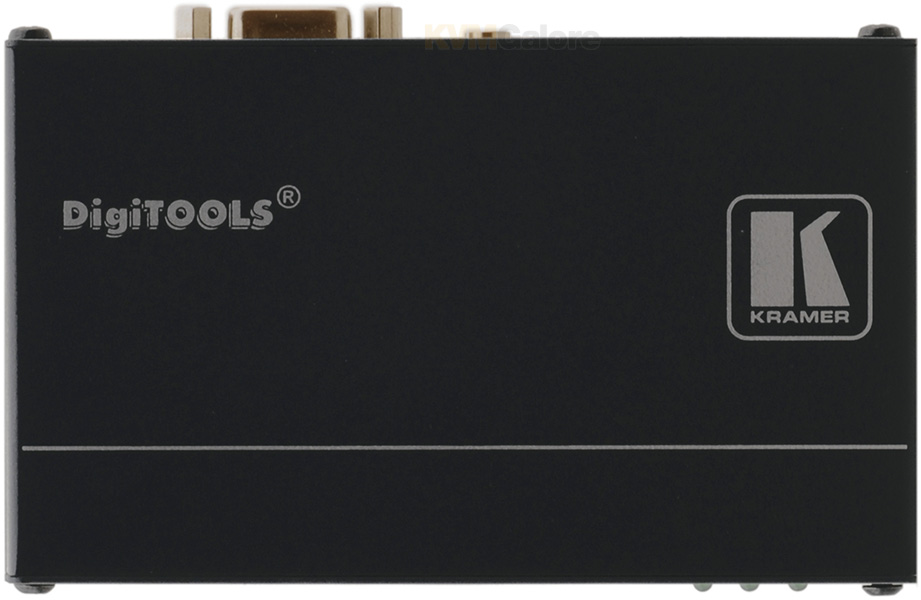

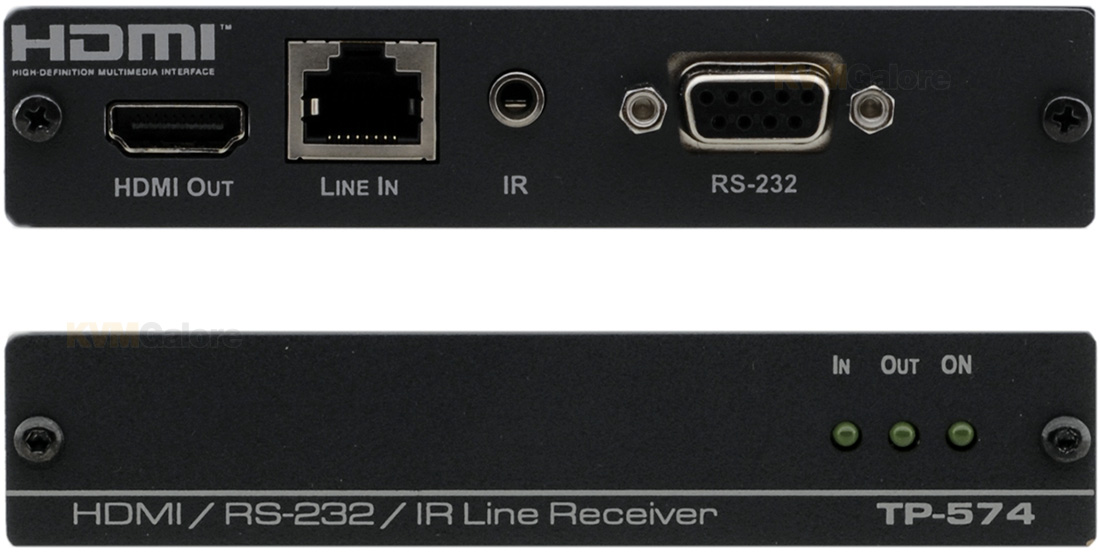

TP-574 is a DGKat™ twisted pair receiver for HDMI, bidirectional RS-232 and infrared signals.

The TP-573 transmitter (purchased separately) converts the input signals to a twisted pair signal and the TP-574 receiver converts it back to HDMI, RS-232 and infrared signals.

Applications
• Home theater
• Presentation and multimedia applications
• Rental and staging

System Range
• Up to 295 feet (90 m) at 1080p on shielded BC-DGKat7a23 cable
• Up to 230 feet (70 m) at 1080p on shielded BC-DGKat623 cable
• Up to 100 feet (30 m) at 1080p on shielded BC-DGKat524 cable
• Up to 295 feet (90 m) at 1080i on shielded BC-DGKat524 cable
• Up to 295 feet (90 m) at 1080i on shielded BC-DGKat623 cable
• Up to 328 feet (100 m) at 1080i on shielded BC-DGKat7a23 cable

Features and Benefits
• Max. Data Rate - 4.95Gbps (1.65Gbps per graphic channel)
• HDTV Compatible
• HDCP Compliant
• HDMI Support - Deep Color, x.v.Color™, Lip Sync, HDMI Uncompressed Audio Channels, Dolby TrueHD, DTS-HD
• 3D Pass-Through
• EDID PassThru - Passes EDID signals between the source and display
• Bidirectional RS-232 & IR Interface. - 38400 max baud rate
• Cable - Requires shielded twisted pair (STP) cable
• For optimum range and performance use, use Kramer's BC-DGKat524, BC-DGKat623 and BC-DGKat7a23 cables
• DGKat™ Signal Integration - Kramer's unique technology for converting TMDS as well as control and communication to signals that run over twisted pair cables
• We strongly recommend using Kramer DGKat™ cables designed specifically for optimum performance
• Power Connect System™ - A single connection to the transmitter powers both units
• Compact DigiTOOLS^® - 3 units can be rack mounted side-by-side in a 1U rack space with the optional RK-3T rack adapter

Need help with product selection?
Call KVMGalore at 1-800-636-3434, or submit your question on KVMGalore HelpCenter.

Notes:
• Transmission range depends on the signal resolution, graphics card and display used
• The distance using non-Kramer CAT-5, CAT-6, and CAT-7 cables may not reach these ranges
• Use only shielded cable where both ends of the shield are soldered to ground
