8x8 4K60 HDMI 2.0 matrix video switch

• 4K60 (4:4:4) resolution
• Audio breakaway and ARC
• Flexible switching and routing
• Remote control and management

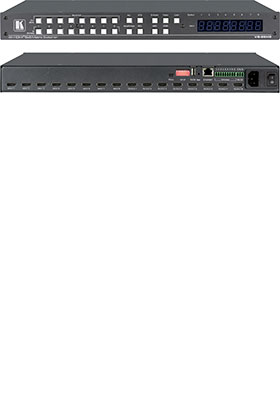

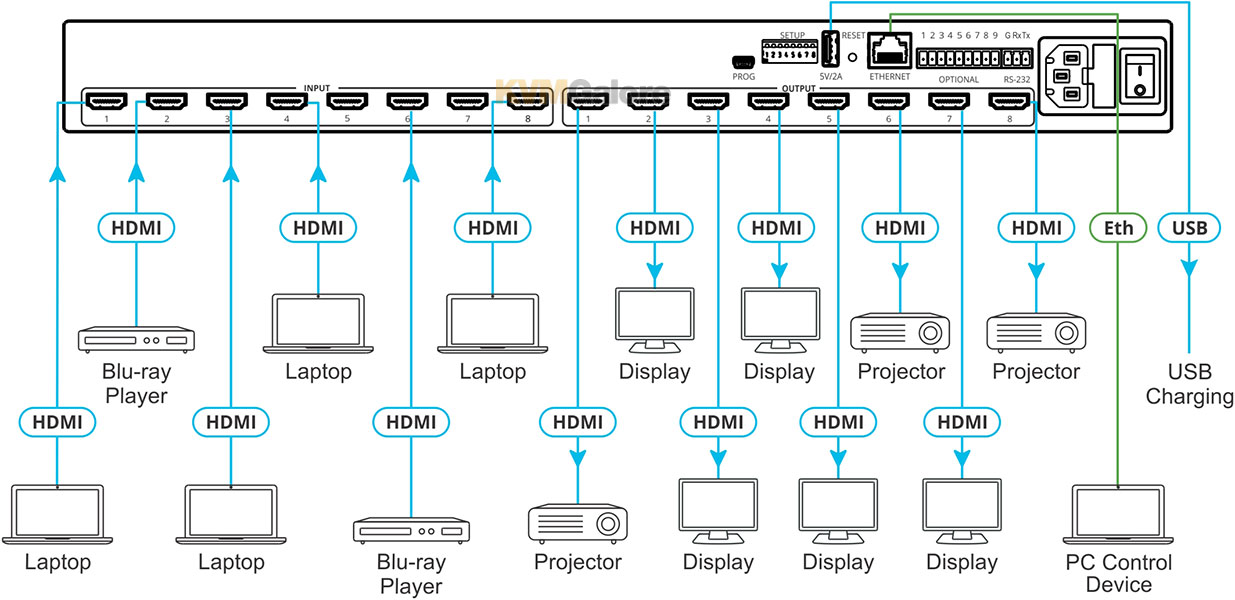

VS-88H2 is a high-quality matrix video switch with eight HDMI inputs independently routable to eight HDMI outputs. It supports integrated audio matrix; enables independent and flexible audio and ARC extraction, insertion and routing between any HDMI ports.

The matrix video switch offers a flexible audio scheme where any HDMI digital audio input can be routed to any HDMI digital audio output. In addition, an ARC matrix is supported to produce AV matrices.

Exceptional Quality
• Flexible and Safe Matrix Routing — Clean switching between inputs, with smooth and safe transition between presented content on displays, for convenient presentation experience of end-users
• Auto Switcher Ease of Use — Automatically plays the switched source signal on the connected display according to user-configured preferences, such as priority or last-connected input
• HDMI Signal Switching — HDCP 2.2 compliant, supporting deep color, ARC, up to 7.1 uncompressed audio channels, and 3D, as specified in HDMI 2.0

Advanced and User-Friendly Operation
• I-EDIDPro™ Kramer Intelligent EDID Processing™ — Individual EDID management per input for flexibly capturing and storing EDID from output-connected displays or custom files. Intelligent EDID handling and processing ensures plug and play operation for HDMI source and display systems
• Independent Audio Breakaway and Routing — The digital audio signals passing through to the selectable outputs, and ARC (Audio Return Channel) signals from the output-connected displays, are extracted, converted to analog audio signals, and input to the built-in audio matrix. Flexible matrix routing enables insertion of any audio input signal to any AV matrix output port
• Simple Control — Remote IP-controller connection, browser operation webpage, or local panel buttons, and multiple preset configurations, for easy and fully flexible user ports selection, signals routing, and matrix control

Flexible Connectivity
• Secured Web-UI Operation — User credentials authentication for secured web-UI access and operation
• Comprehensive Management — Local panel-button operation, remote IP-driven firmware upgrade and management via user-friendly embedded web pages, built-in test video patterns for outputs and displays diagnostics, and remote IP or local serial service and management via API commands and responses communication, for flexible service options and ensure lasting, field proven deployment
• Easy and Elegant Installation — 19" enclosure for rack mounting in a 1U rack space with included rack ears and universal 100-240V AC power supply.

Controlling your VS-88H2

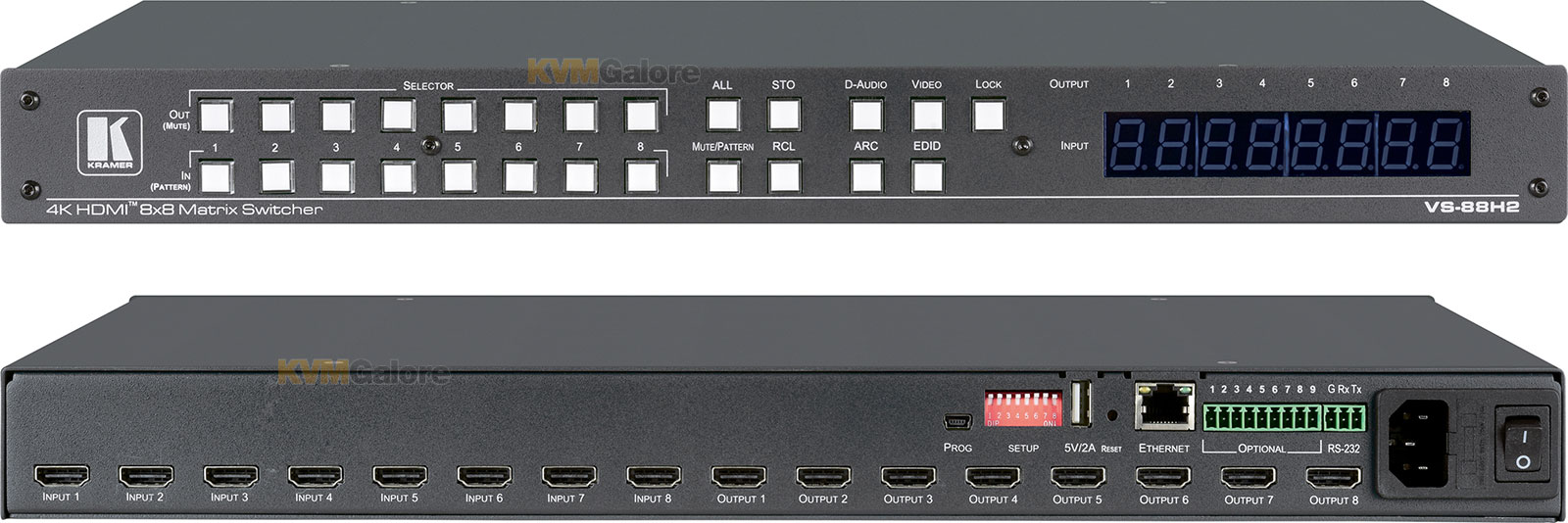

Control your matrix video switch directly via the front panel push buttons, or:
• By RS-232 serial commands transmitted by a touch screen system, PC, or other serial controller
• Via the Ethernet using built-in user-friendly web pages

Included Accessories
1x Power adapter cord
2x Rack ears
