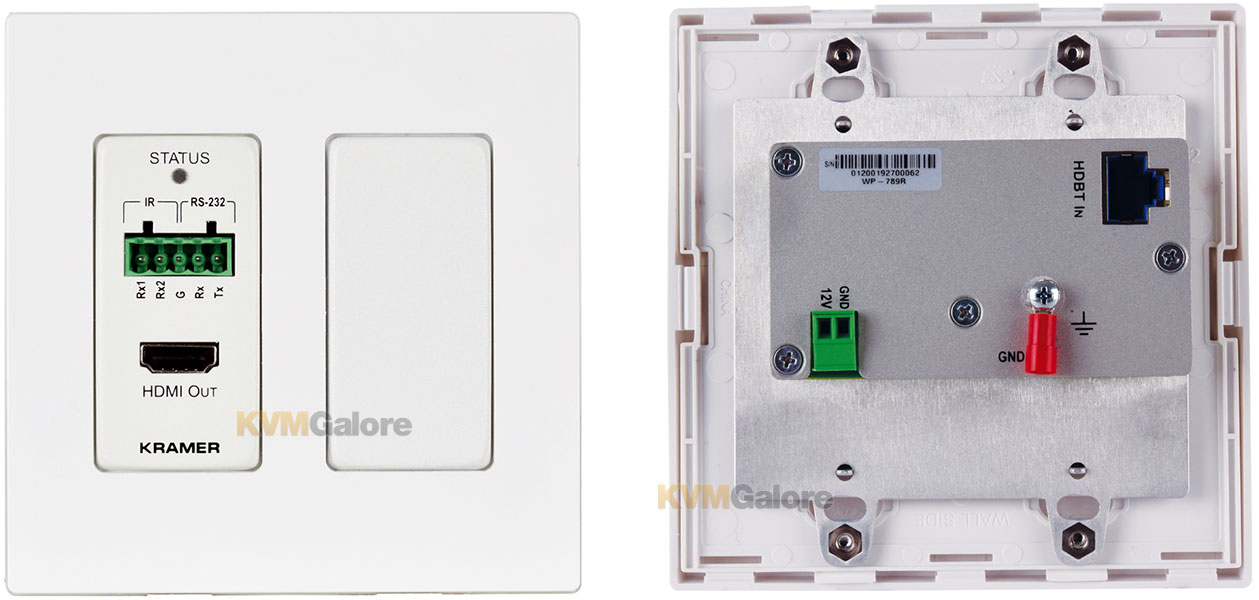

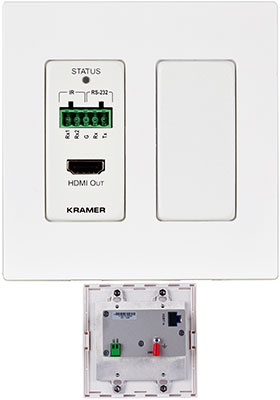

4K60 4:2:0 HDMI 2-gang PoE wall-plate receiver

with RS-232 and IR over HDBaseT

Note: Transmitter unit is purchased separately

• HDBaseT 1.0 receiver
• Powered by PoE (power over Ethernet/HDBaseT)
• Up to 130 feet (40 m) at 4K @ 60Hz (4:2:0)
• Up to 230 feet (70 m) at 1080p
• Control extension

WP-789R is a high-performance, HDBaseT wall-plate receiver for 4K @ 60Hz (4:2:0) HDMI and HDCP 2.2 signals over twisted pair.

It converts the transmitted HDBaseT signal into an HDMI signal.

It extends video signals up to 130 feet (40 m) over Kramer copper cables at 4K @ 60Hz (4:2:0) 24bpp video resolution and provides even further reach for lower HD video resolutions.

This wall-plate is powered through PoE (Power over Ethernet) over the twisted pair cable.

High Performance Receiver
Professional HDBaseT receiver for providing long-reach signals over twisted pair copper infrastructures. WP-789R is a standard extender that can be connected to any market-available HDBaseT-compliant extension product. For optimum extension reach and performance, use recommended Kramer cables.

Reliable PoE (power over Ethernet) Powering
Auto-senses the extension line PoE status, and accepts power from a remote PoE provider such as a PoE matrix, with optional mains powering from connected power adapter.

HDMI Signal Extension
Supports HDCP 2.2, deep color, x.v.Color™, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS-HD, 2K, 4K, and 3D as specified in HDMI 2.0.

EDID Pass-through
Pass-through algorithm ensures Plug and Play operation for HDMI source and display systems.

Multi-channel Audio Extension
Up to 32 channels of digital stereo uncompressed signals for supporting studio-grade surround sound.

Low Profile Wall-Plate
Designed for elegant, in-wall deployment behind a wall-mounted flat panel display. Minimizes the depth of the installation, especially when connected with a Kramer right-angle HDMI cable.

Cost-Effective Maintenance
Power and connectivity status LED indicator facilitates easy local maintenance and troubleshooting.

Easy Installation
Fits into standard US, EU and UK 2-gang in-wall box size, supporting decorative integration with room deployed user interfaces such as electrical switches. Wall-plate installation is fast and cost-effective via a single twisted pair cable, providing both video signal and power (PoE) connections.

Features and Benefits
• High Performance Standard Extender - Professional HDBaseT extender for providing signals and powering over twisted-pair copper infrastructures - can be connected to any market-available HDBaseT-compliant extension product
• PoE (power over Ethernet) - Auto-senses the extension line PoE status and accepts power from a remote PoE provider such as a PoE matrix
• HDMI Signal Extension - Supports deep color, x.v.Color™, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS-HD, 2K, 4K, and 3D as specified in HDMI 2.0. EDID and CEC signals are passed through between the source and the display
• I-EDIDPro™ Kramer Intelligent EDID Processing™ - Intelligent EDID pass-through algorithm that ensures plug and play operation for HDMI source and display systems
• Multi-Channel Audio Extension - Up to 32 channels of digital stereo uncompressed signals for supporting studio-grade surround sound
• Bidirectional RS-232 Extension - Serial interface data flows in both directions, allowing data transmission and device control
• Bidirectional Infrared Extension - IR interface data flows in both directions, allowing remote control of peripheral devices located at either end of the HDBaseT extension
• Cost-Effective Maintenance - Status LED indicators facilitate easy local maintenance and troubleshooting. Local firmware upgrade via RS-232 connection ensures lasting, field-proven deployment
• Wall-plates fit into standard US 2-gang in-wall box sizes, supporting decorative integration with room-deployed user interfaces such as electrical switches

Applications
• Decorative wall-mounted display installations in visitor centers, museums, auditoriums and boardrooms
• Cruise ships and yachts with low-profile display installations on lean walls
• Any display deployments with limited space for receiver installation

Included Accessories
1x Power adapter
1x Power cord
