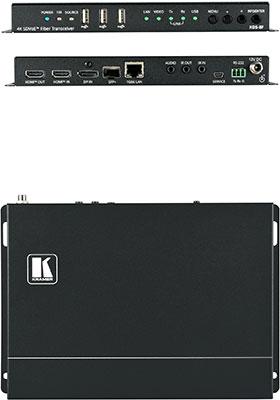

KDS-8F

Model No. KDS-8F In stock

KDS-8F
Buy this item and earn 1,995 ClubPoints.

Zero latency SDVoE* video streaming transceiver

with USB support for 4K HDR over 10G network via fiber optic


• User configured as encoder or decoder
• 4K @ 60Hz (4:4:4) video resolution
• Fully standard and compliant SDVoE codec
• Streaming Support - Multicast, Unicast
• USB over IP
• Video wall and multiview support
• Managed by KDS-8-MNGR

KDS-8F is a high-performance, zero latency, 4K @ 60Hz (4:4:4) video streaming transceiver for streaming via Ethernet over single-mode and multi-mode optical fiber.

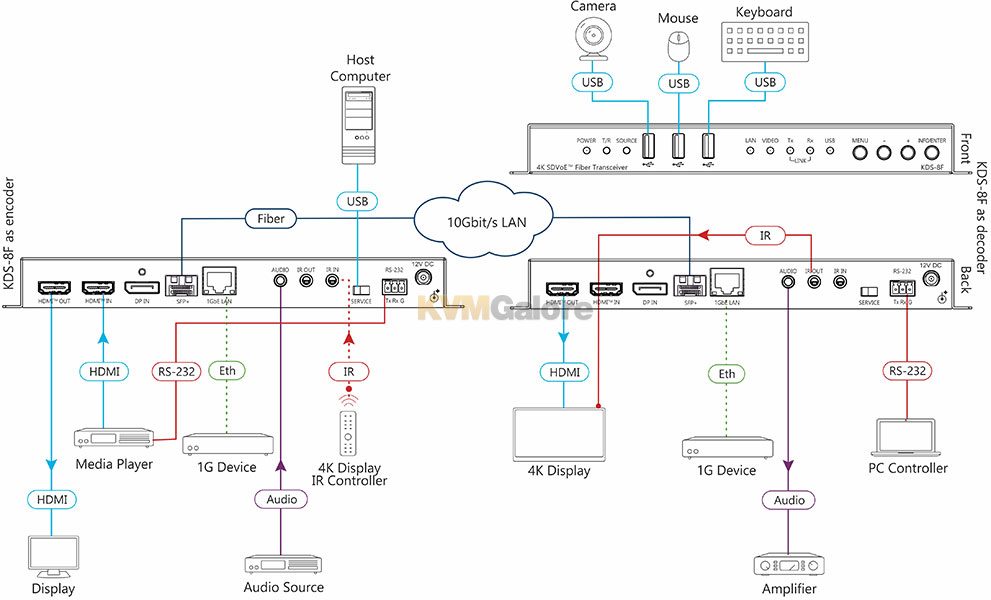

KDS-8F can be set as either an encoder or decoder.

As an encoder, it encodes and streams the HDMI or DisplayPort input along with IR, RS-232, analog audio and USB, over an IP network.

As a decoder, it receives the encoded signal and decodes it for output.

Features and Benefits
• High-Performance Video Streaming Transceiver - Streams up to 4K @ 60Hz (4:4:4) resolution signals over a 10G network interface, providing lossless compression
• Maximum Compatibility - Fully standard and compliant SDVoE™ codec, enables compatibility with other software and hardware streaming platforms
• Streamlined Management and Configuration - Kramer KDS-8-MNGR device (sold separately) provides a central point of management and enables creating multiple virtual matrices, video walls and multi-view configurations. In addition, KDS-8-MNGR supports preset configurations that can be activated using Kramer Control
• HDCP 2.2 Compliant
• HDR Support
• Genlock and Fastswitch modes support
• Works with High-Speed 10G Network Switch - Managed switch provides multicast, jumbo frames, IGMP snooping and fast leave
• Analog Audio Embedding - Provides an unbalanced analog audio port for embedding audio into the streaming signal
• Bi-directional USB over IP - Create a point-to-point USB interface extension between two transceivers where USB interface devices connected to one transceiver can communicate with a host computer connected to the other transceiver
• Bi-directional IR and RS-232 over IP - Control an IR or serial device located on the decoder side from the encoder and vice versa
• Video Wall Support
• Multiview Support

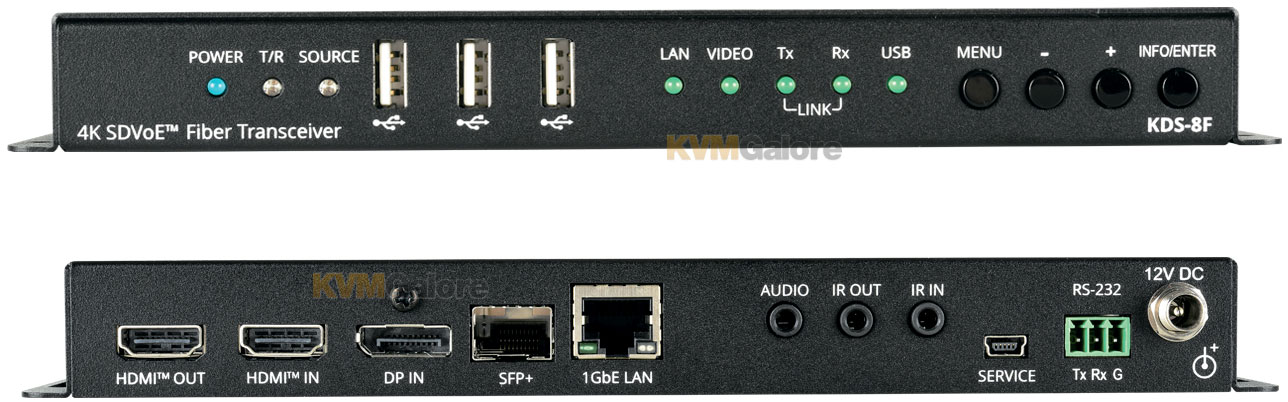

• Easy, Cost-Effective Maintenance - LED indicators for main power, Tx/Rx mode setting, HDMI/ DisplayPort video source detection, USB connection and Tx and Rx transmission enable easy local maintenance and troubleshooting
• Simple System Management - Remote system management support to enable quick and efficient remote system and device life-cycle management

Applications
• Medical facilities and hospitals
• Government facilities
• Live entertainment
• Control centers
• Large scale matrixes

Included Accessories
1x Power adapter
1x Multimode SFP+ transceiver module
4x Rubber feet

* Software-defined video-over-Ethernet
