DVI (HDCP) over twisted pair receiver

Note: Transmitter units are purchased separately

• Max. Data Rate - 4.95Gbps (1.65Gbps per graphic channel)
• HDCP Compliant
• EDID Pass-Thru
• Requires STP Cable
• Rack Kit - RK-4PT

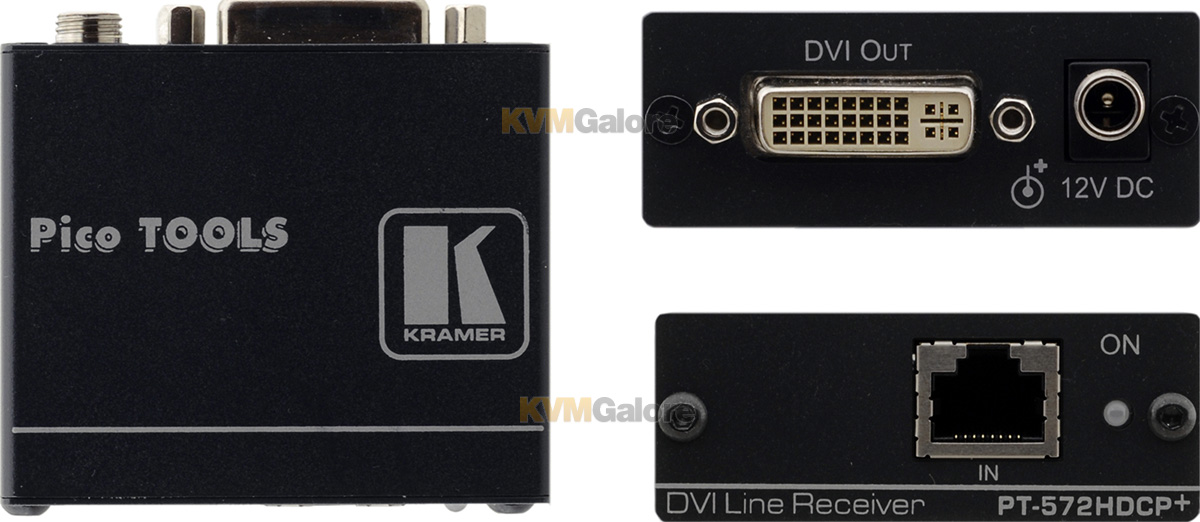

• Size - Ultra-Compact Pico TOOLS™ - 4 units can be rack mounted side-by-side in a 1U rack space with the optional RK-4PT rack adapter.

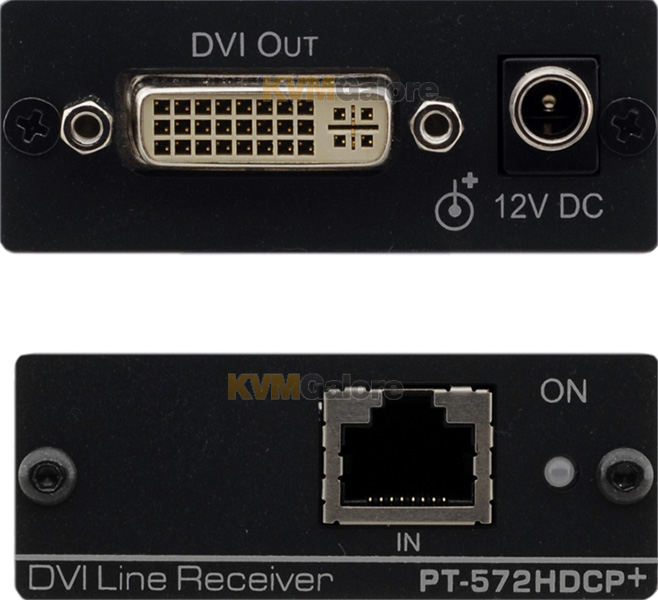

PT-572HDCP+ is a DGKat™ twisted-pair receiver for DVI signals. PT-571HDCP transmitter (purchased separately) converts the DVI to twisted pair signal and sends it to PT-572HDCP+ receiver which converts the twisted pair signal back to a DVI signal.

System Range
• Up to 262 feet (80 m) at 1600x1200 on shielded BC-DGKat7a23 cable
• Up to 230 feet (70 m) at 1600x1200 on shielded BC-DGKat623 cable
• Up to 98 feet (30 m) at 1600x1200 on shielded BC-DGKat524 cable
• Up to 328 feet (100 m) at 1280x1024 on shielded BC-DGKat7a23 cable
• Up to 295 feet (90 m) at 1280x1024 on shielded BC-DGKat524 cable
• Up to 295 feet (90 m) at 1280x1024 on shielded BC-DGKat623 cable

Features and Benefits
• Max. Data Rate - 4.95Gbps (1.65Gbps per graphic channel)
• HDTV Compatible
• HDCP Compliant
• DGKat™ Signal Integration - Kramer’s unique technology for converting TMDS as well as control and communication to signals that run over twisted pair cables. We strongly recommend using Kramer DGKat™ cables designed specifically for optimum performance
• Cable - Requires STP (shielded twisted pair) cable
• For optimum range and performance, use Kramer's BC-DGKat524, BC-DGKat623 or BC-DGKat7a23 cables
• EDID PassThru - Passes EDID signals between the source and display
• Power Connect™ System - A single connection to the transmitter or the receiver powers the system when the devices are within 295 feet (90 m) of each other
• Ultra-Compact PicoTOOLS™ - 4 units can be rack mounted side-by-side in a 1U rack space with the optional RK-4PT rack adapter

Need help with product selection?
Call KVMGalore at 1-800-636-3434, or submit your question on KVMGalore HelpCenter.

Note: Transmission range depends on the signal resolution, graphics card and display used - The distance using non-Kramer CAT-5, CAT-6, and CAT-7 cables may not reach these ranges
