4x1 4K/18G wall-plate HDMI, DisplayPort & USB switcher / HDBaseT transmitter

328 feet (100 m), with IR, RS-232 extension, IP control, CEC Manager™, ARC, audio de-embed and PoH support

Note: Receiver unit is purchased separately - see listing below

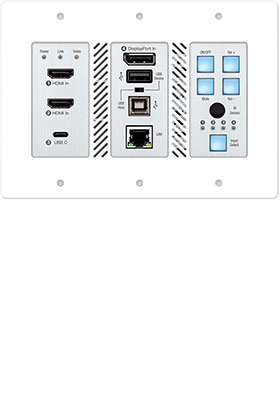

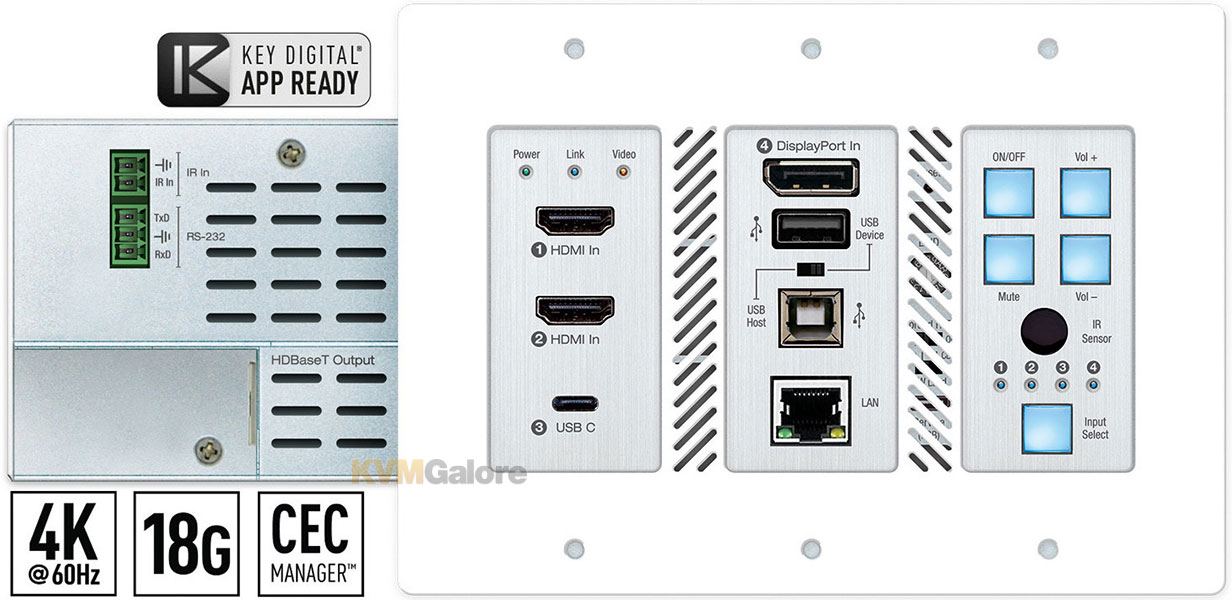

Key Digital^® KD-X4x1WUTx is an HDBaseT wall-plate transmitter + universal presentation switcher + soft-codec enabling interface with two HDMI, one DisplayPort, and one USB-C inputs, as well as one USB Type-A and USB Type-B connection.

KD-X4x1WUTx is ideal for professional video installations in conference rooms, class rooms, lecture halls, auditoriums, and more.

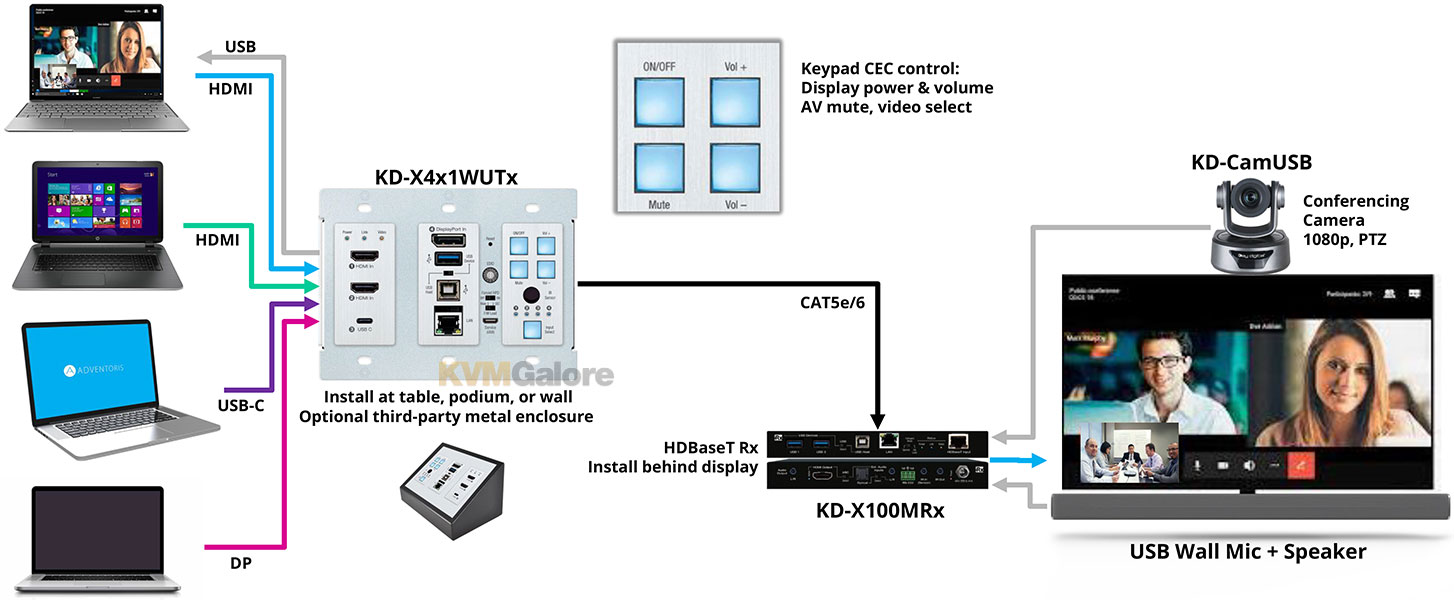

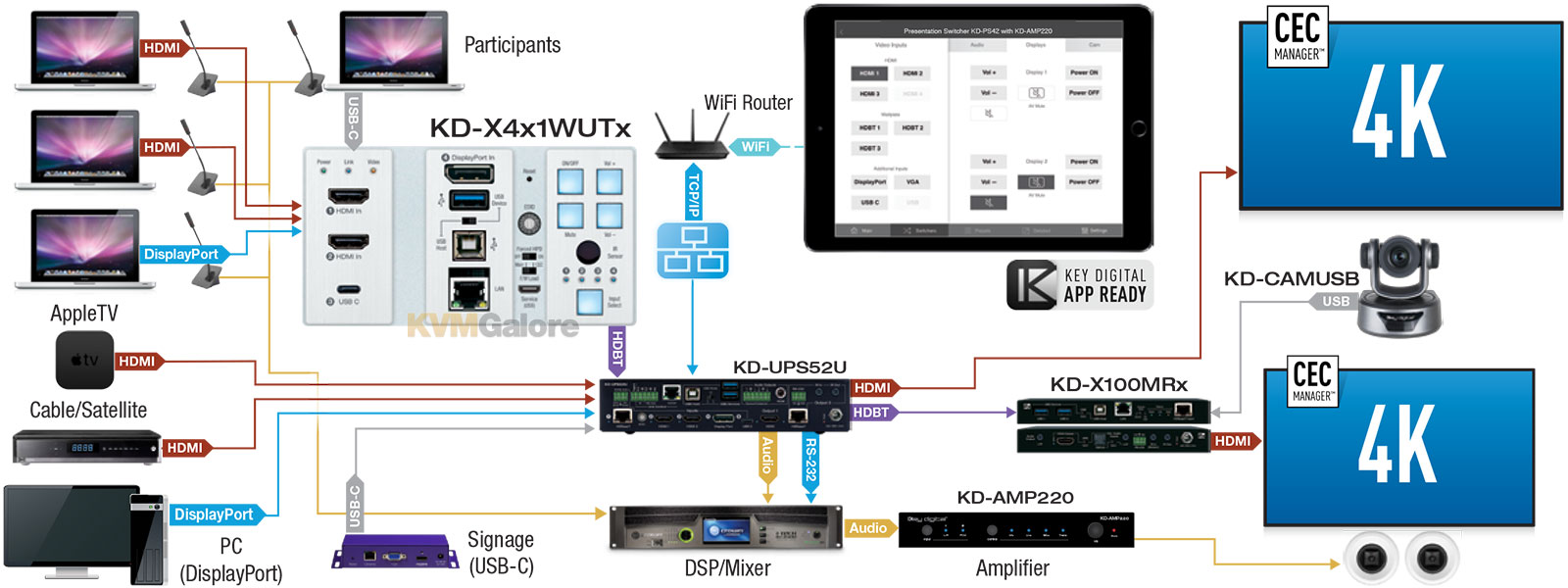

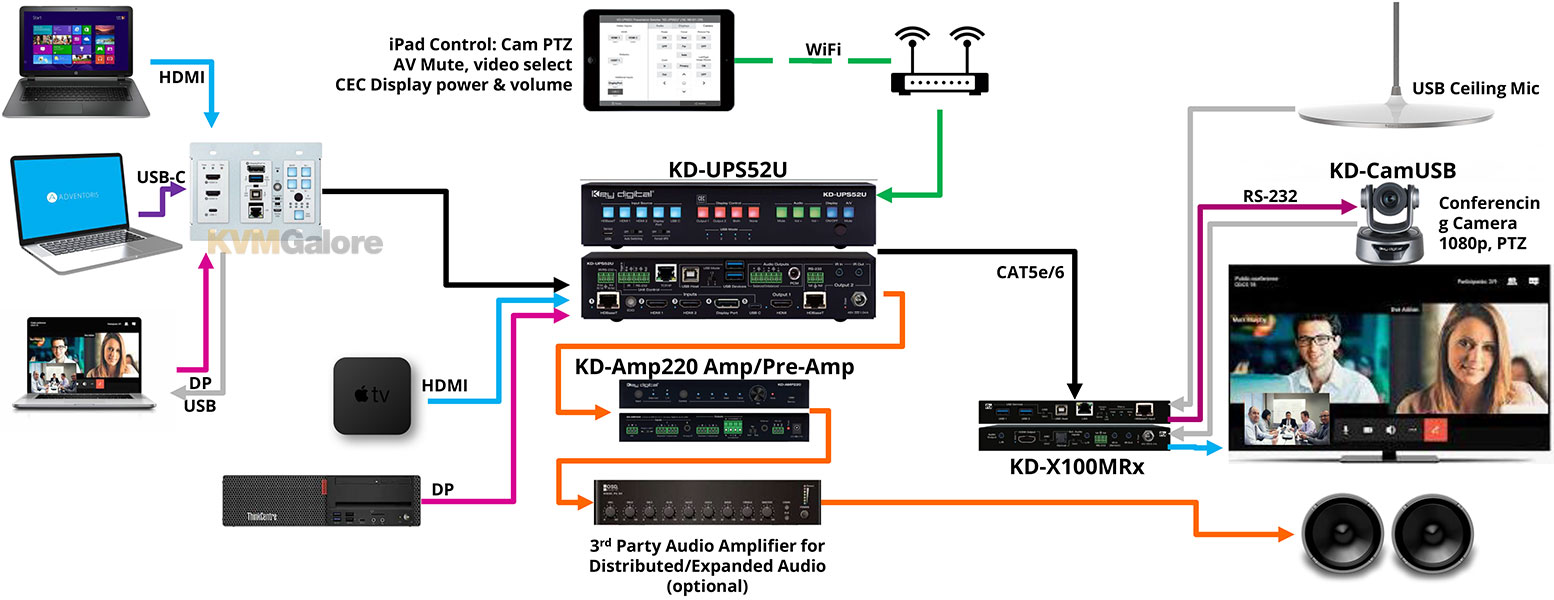

KD-X4x1WUTx is natively received by KDX100MRx black box HDBaseT Rx or by KD-UPS52U presentation switcher. Both Rx options have audio de-embedding for ease of integration with audio systems. Additional Key Digital presentation switchers also support integration with KD-X4x1WUTx.

KD-X4x1WUTx features push-button or TCP/IP switching selection of the desired source and is KD-App Ready. Key Digital CEC Manager™ enables basic controls of the connected display for a simplistic all-in-one integration system.

KD-X4x1WUTx is HDCP 2.2 compliant and supports 4K/Ultra-HD 24/25/30/60 (4:4:4) resolutions with up to 18Gbps bandwidth. 4K/Ultra-HD signals are extended up to 328 feet (100 m) and 1080p up to 492 feet (150 m) via single CAT-5e/6 cable.

In addition to AV signals, KD-X4x1WUTx extends USB 2.0, IR, RS-232 for controlling remotely located equipment.

The wall-plate unit fits in a standard US three-gang box and is powered by the Rx unit or presentation switcher for convenient installation.

Features and Benefits
• Presentation Switching: 2x HDMI, 1x DisplayPort, and 1x USB-C source selection by push-button or IP control
• Installation: Fits in standard US 3-gang wall box or table and wall AV boxes
• Rx Options: Native integration with KD-X100MRx black box HDBaseT Rx or KD-UPS52U Presentation Switcher. Future Rx options may be available
• Soft-Codec Enabling System: USB Host + Device ports on wall plate and chosen Rx / Presentation Switch create connectivity hub for professional USB cameras and microphones, audio DSP, keyboard, mouse, or touchscreen display with connected computer
• Ultra HD/4K: Supports up to 4096x2160 or 3840x2160 24/25/30/60hz at 4:4:4 (signals up to 18Gbps bandwidth)
• Auto-Sensing: Automatic selection of newly detected source and switching from newly disconnected source when enabled
• CEC Manager™: Power, volume, and muting controls of the connected displays/projectors without any additional control wiring
• KD-App Ready: Network scan & detect populates pre-built GUI including connected display/projector controls via CEC Manager™
• Ease of Integration: Complete configuration using Key Digital Management Software™ Pro
• HDCP Licensing: Fully licensed and compatible with HDCP 2.2
• HDR10: More life-like images through a greater range of luminance levels
• Power Over HDBaseT: Wall-plate unit powered by Rx/Presentation Switch unit
• Installation: Tx unit designed for installation in standard US three-gang box
• 4K/Ultra-HD (18G) Signal Extension: Up to 100m / 328 feet
• 1080p Signal Extension: Up to 150m / 492 feet
• Deep Color Support: Up to Ultra-HD/4K 30Hz 4:4:4/12 bits or 60Hz 4:4:4/8 bit
• Full Buffer System™: Manages TMDS re-clocking / signal re-generation, HDCP authentication to source & display, EDID Control handshake, and Hot Plug Detection Voltage
• EDID Management: Internal library with 15 internal EDID handshakes including 4K with HDR in addition to native EDID data copied from the Rx display/device
• IR Sensor: Wall-plate collects line-of-sight IR from remote(s) without external IR wiring
• RS-232: Bi-Directional control to/from Tx and Rx/Presentation Switch unit
• Lossless compressed digital audio: Support for Dolby® TrueHD, Dolby® Digital Plus, Dolby Atmos®, and DTS-HD Master Audio™
• Control System Support: Fully controllable by all TCP/IP and RS-232 supported control systems via open API: Compass Control® Pro, AMX®, Crestron®, KNX®, RTI®, Savant, URC®, Leviton® etc.

Included Accessories
1x USB-A to USB Micro Data Cable
6x Aluminum decora plate (qty 1) + Decora mounting screws with flat head
6x Gang-box mounting screws
1x 3-pin phoenix terminal
1x 2-pin phoenix terminal
