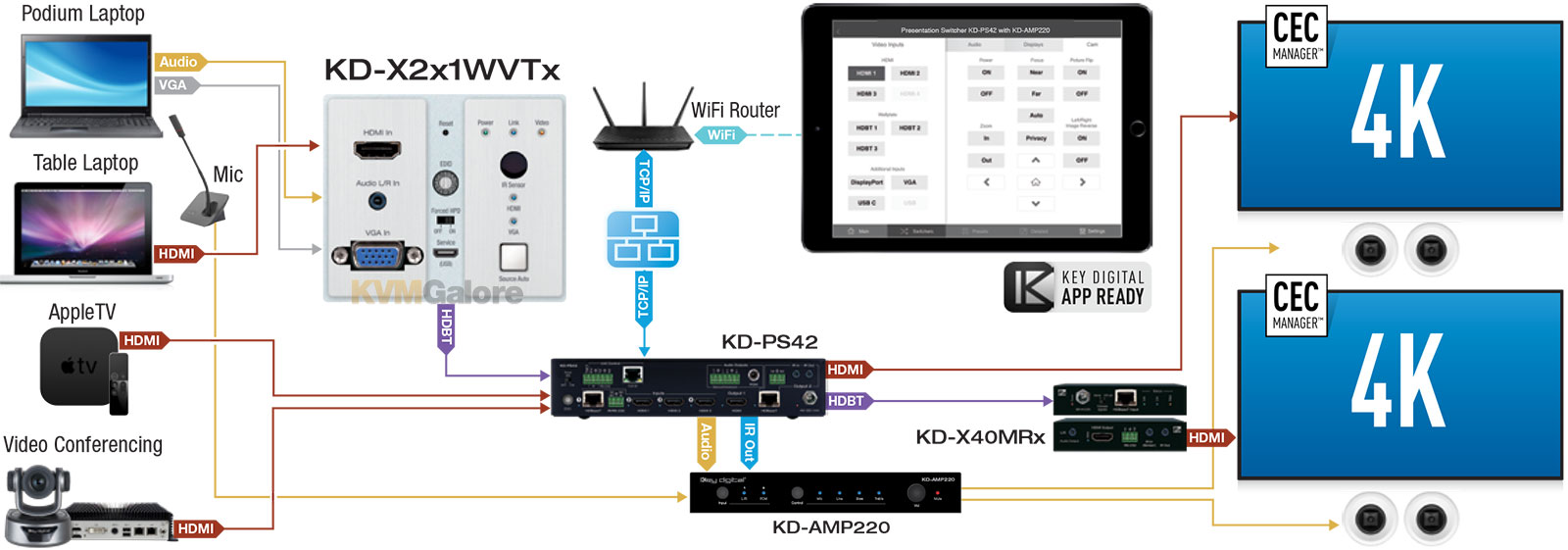

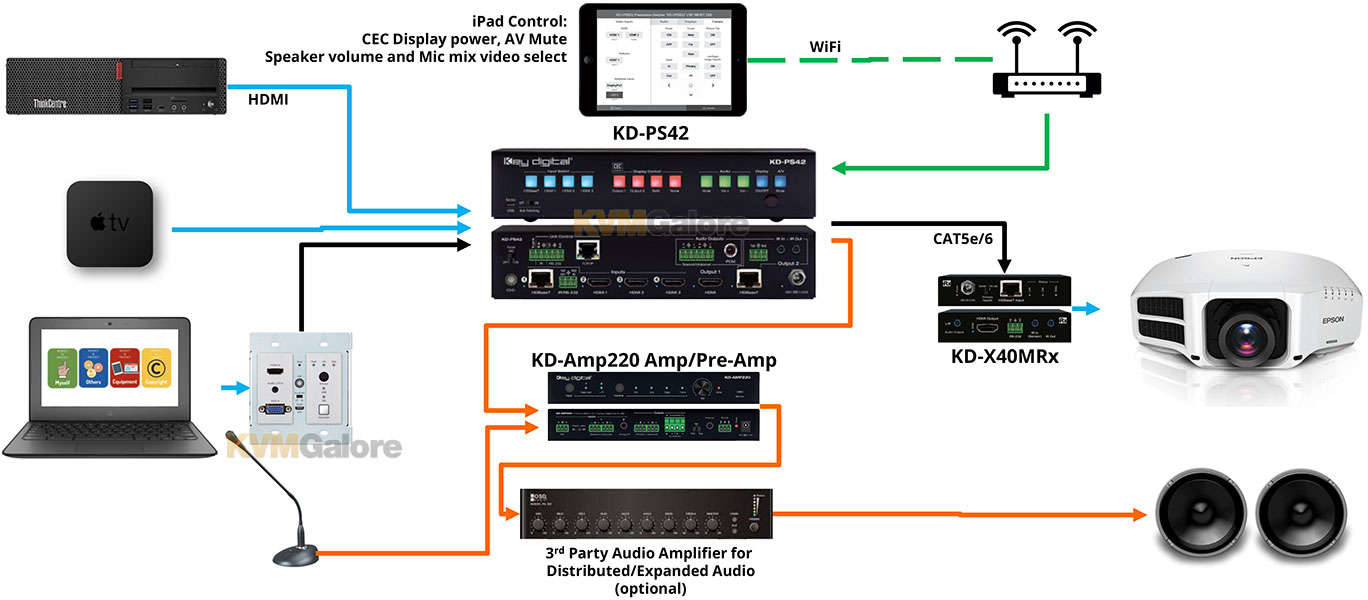

Image 4 of 4 - Classroom, lecture hall, conference room, board room applications - Complete presentation system for large spaces. Presenter may plug in laptop or share content from Air Play or dedicated PC. User controls CEC projector, speech and audio volume using Key Digital App. view

KD-X2x1WVTx

Model No. KD-X2X1WVTX In stock

KD-X2x1WVTx
Buy this item and earn 527 ClubPoints.

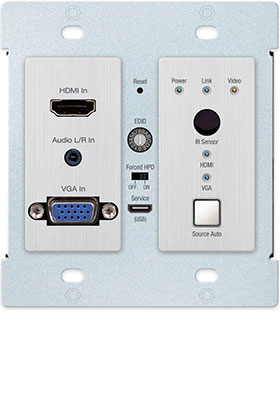

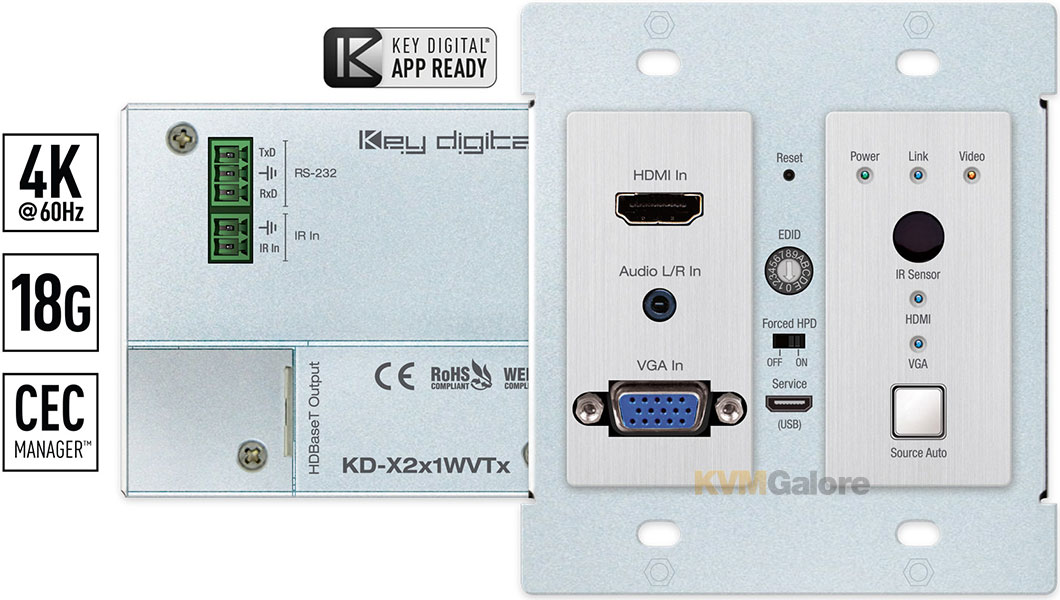

2x1 4K/18G dual-gang wall-plate HDMI & VGA switcher / HDBaseT transmitter

131 feet (40 m), with IR, RS-232 extension and PoH support


Note: Receiver unit is purchased separately - see listing below

Key Digital® KD-X2x1WVTx is an HDBaseT wall-plate transmitter + presentation switcher with one HDMI and one VGA (with analog audio) input, ideal for professional video installations in conference rooms, huddle spaces, class rooms, and more.

KD-X2x1WVTx is natively received by KD-X40MRx black box HDBaseT Rx or by KD-PS42 presentation switcher. Both Rx options have audio de-embedding for ease of integration with audio systems.

Additional Key Digital presentation switchers also support integration with KD-X2x1WVTx. KD-X2x1WVTx is HDCP 2.2 compliant and supports 4K/Ultra-HD 24/25/30/60 (4:4:4) resolutions with up to 18Gbps bandwidth.

4K/Ultra-HD signals are extended up to 131 feet (40 m) and 1080p up to 230 feet (70 m) via single CAT-5e/6 cable.

In addition to AV signals, KD-X2x1WVTx extends IR and RS-232 for controlling remotely located equipment.

The wall-plate unit fits in a standard US dual-gang box and is powered by the Rx unit / presentation switch or presentation switcher for convenient installation.

Key Digital warrantyFeatures and Benefits
• Presentation Switching: 1x HDMI and 1x VGA with analog audio sources selected by push-button
• Rx Options: Native integration with KD-X40MRx black box HDBaseT Rx and KD-PS42 presentation switcher. Other Rx options available
• Ultra-HD/4K: Supports up to 4096x2160 or 3840x2160 24/25/30/60hz at 4:4:4 (signals up to 18Gbps bandwidth)
• Auto-Sensing: Automatic selection of newly detected source and switching from newly disconnected source when enabled
• Audio Conversion: VGA video and analog audio to HDMI
• Video Scaling: Aspect ratio, resolution set, image size, image position, image phase, and color tone processing of VGA signals ensures proper display
• HDCP Licensing: Fully licensed and compatible with HDCP 2.2
• HDR10: More life-like images through a greater range of luminance levels
• Power over HDBaseT: Wall-plate unit powered by Rx/presentation switch unit
• Installation: Tx unit designed for installation in standard US dual-gang box. Silver Decora plate included
• 4K/Ultra-HD (18G) Signal Extension: Up to 40m / 131 feet
• 1080p Signal Extension: Up to 70m / 230 feet
• Deep Color Support: Up to Ultra-HD/4K 60Hz 4:2:0 12bits or 4:2:2 12bits
• Full Buffer System™: Manages TMDS re-clocking / signal re-generation, HDCP authentication to source & display, EDID Control handshake, and Hot Plug Detection Voltage
• EDID Management: Internal library with 15 internal EDID handshakes including 4K with HDR in addition to native EDID data copied from the Rx display/device
• VGA EDID: Unique EDID handshake provided to VGA source and HDMI source
• IR Sensor: Wall-plate collects line-of-sight IR from remote(s) without external IR wiring
• RS-232: Bi-directional control to/from Tx and Rx/presentation switch unit
• Unit Control: via USB for initial installation steps
• Lossless Compressed Digital Audio: Dolby® TrueHD, Dolby® Digital Plus, DTS-HD Master Audio™, and Dolby® Atmos

Included Accessories
4x Aluminum decora plate (qty 1) + Decora mounting screws with flat head
4x Gang-box mounting screws
2x Mounting bracket
1x 3-pin phoenix terminal
1x 2-pin phoenix terminal
