2x1 4K/18G dual-gang wall-plate HDMI & DisplayPort switcher / HDBaseT transmitter

131 feet (40 m), with IR, RS-232 extension and PoH support

Note: Receiver unit is purchased separately - see listing below

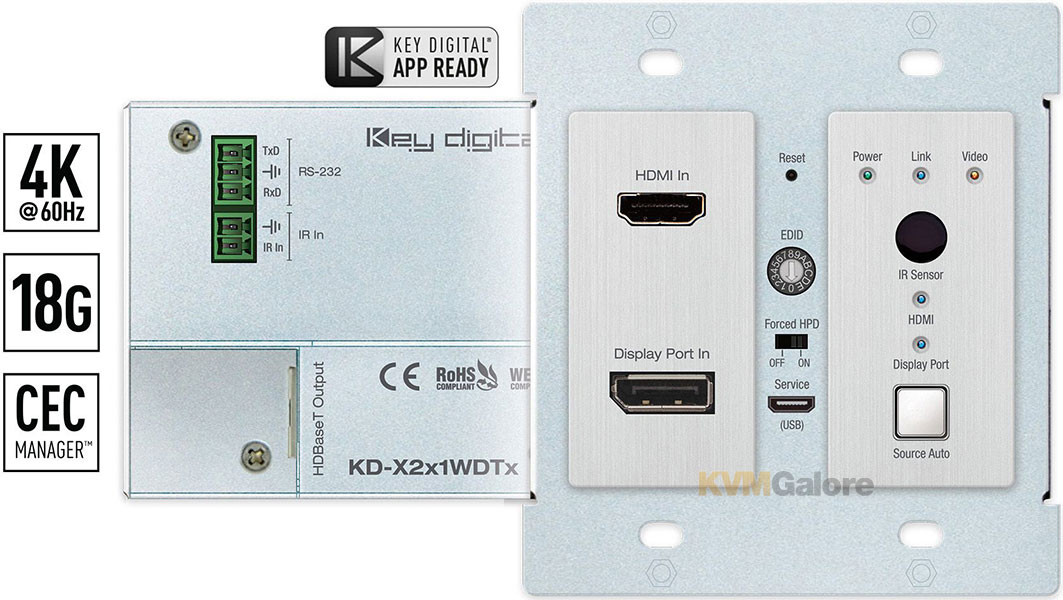

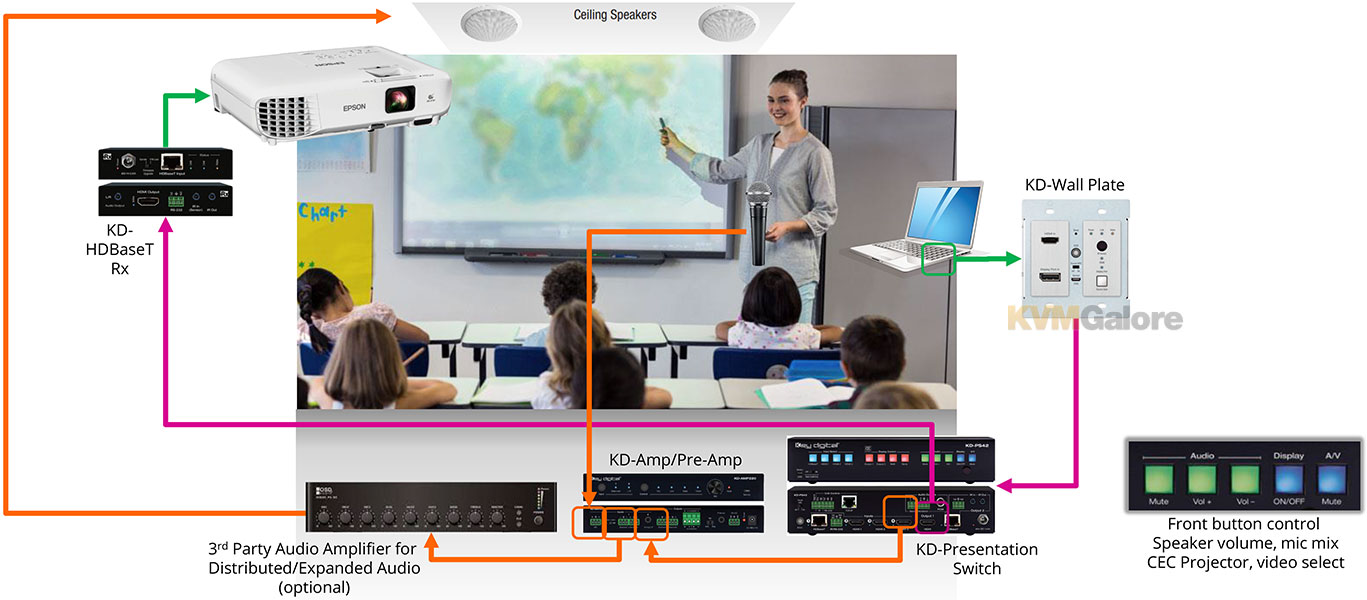

Key Digital^® KD-X2x1WDTx is an HDBaseT wall-plate transmitter + presentation switcher with one HDMI and one DisplayPort input, ideal for professional video installations in conference rooms, huddle spaces, class rooms, and more.

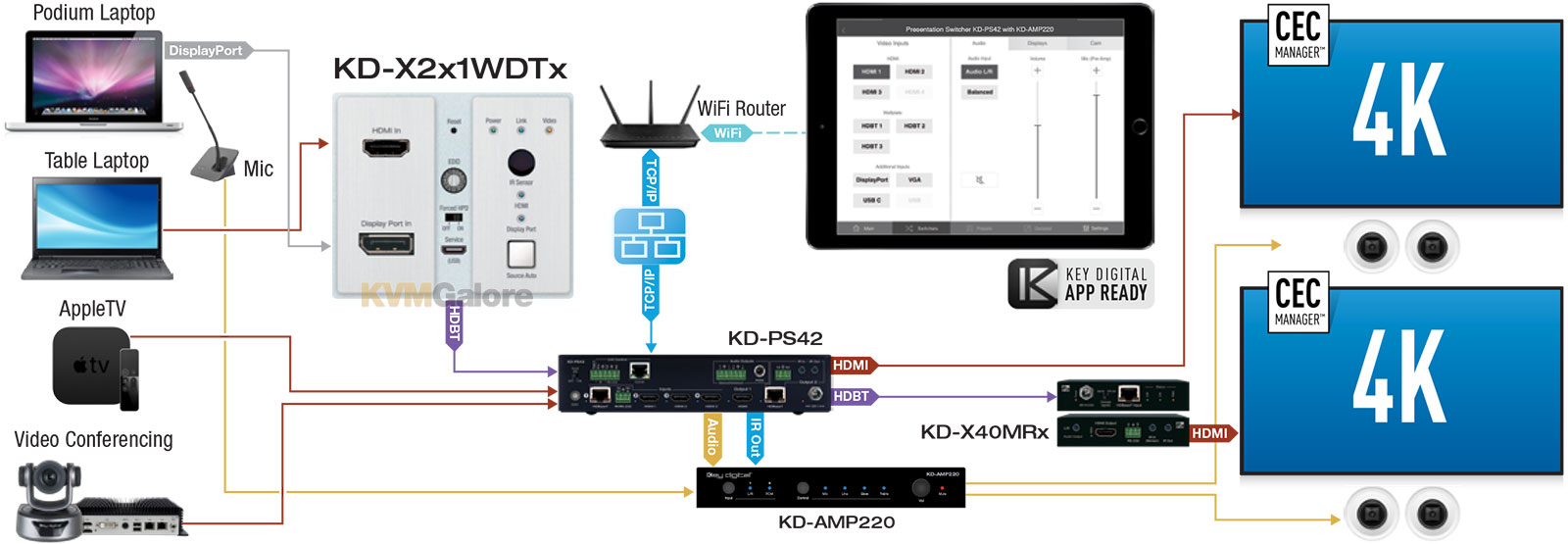

KD-X2x1WDTx is natively received by KD-X40MRx black box HDBaseT Rx or by KD-PS42 presentation switcher. Both Rx options have audio de-embedding for ease of integration with audio systems.

Additional Key Digital presentation switchers also support integration with KD-X2x1WDTx. KD-X2x1WDTx is HDCP 2.2 compliant and supports 4K/Ultra-HD 24/25/30/60 (4:4:4) resolutions with up to 18Gbps bandwidth.

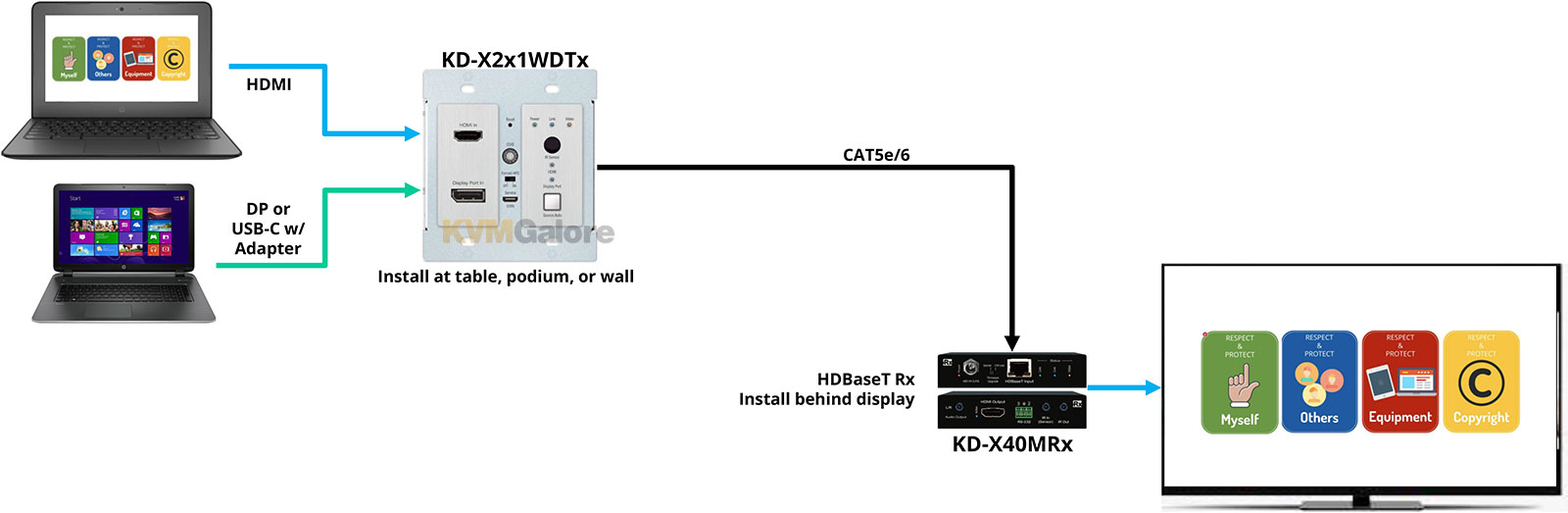

4K/Ultra-HD signals are extended up to 131 feet (40 m) and 1080p up to 230 feet (70 m) via single CAT-5e/6 cable.

In addition to AV signals, KD-X2x1WDTx extends IR and RS-232 for controlling remotely located equipment.

The wall-plate unit fits in a standard US dual-gang box and is powered by the Rx unit / presentation switch or presentation switcher for convenient installation.

Features and Benefits
• Presentation Switching: 1x HDMI and 1x DisplayPort sources selected by push-button
• Rx Options: Native integration with KD-X40MRx black box HDBaseT Rx and KD-PS42 presentation switcher. Other Rx options available
• Ultra-HD/4K: Supports up to 4096x2160 or 3840x2160 24/25/30/60hz at 4:4:4 (signals up to 18Gbps bandwidth)
• Auto-Sensing: Automatic selection of newly detected source and switching from newly disconnected source when enabled
• HDCP Licensing: Fully licensed and compatible with HDCP 2.2
• HDR10: More life-like images through a greater range of luminance levels
• Power over HDBaseT: Wall-plate unit powered by Rx/presentation switch unit

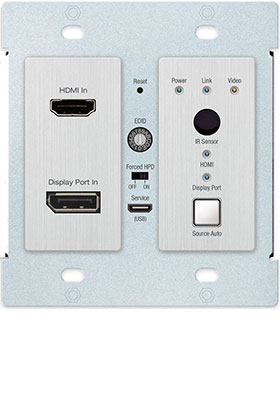

• Installation: Tx unit designed for installation in standard US dual-gang box. Silver Decora plate included
• 4K/Ultra-HD (18G) Signal Extension: Up to 40m / 131 feet
• 1080p Signal Extension: Up to 70m / 230 feet
• Deep Color Support: Up to Ultra-HD/4K 60Hz 4:2:0 12bits or 4:2:2 12bits
• Full Buffer System™: Manages TMDS re-clocking / signal re-generation, HDCP authentication to source & display, EDID Control handshake, and Hot Plug Detection Voltage
• EDID Management: Internal library with 15 internal EDID handshakes including 4K with HDR in addition to native EDID data copied from the Rx display/device
• IR Sensor: Wall-plate collects line-of-sight IR from remote(s) without external IR wiring
• RS-232: Bi-directional control to/from Tx and Rx/presentation switch unit
• Unit Control: via USB for initial installation steps
• Lossless Compressed Digital Audio: Dolby® TrueHD, Dolby® Digital Plus, DTS-HD Master Audio™, and Dolby® Atmos

Included Accessories
4x Aluminum decora plate (qty 1) + Decora mounting screws with flat head
4x Gang-box mounting screws
2x Mounting bracket
1x 3-pin phoenix terminal
1x 2-pin phoenix terminal
