5x1 4K 18G HDMI and HDBaseT switcher

with two mirrored outputs (local HDMI and HDMI over HDBaseT 328 foot extension), USB 2.0, audio de-embed, IR, RS-232, IP control, PoH, CEC Manager™

Key Digital^® KD-UPS52U is a 4K/18G KD-App ready universal presentation switcher + soft-codec enabling interface with CEC Manager™, auto switching, and audio de-embedding creating a user friendly, simplified presentation system.

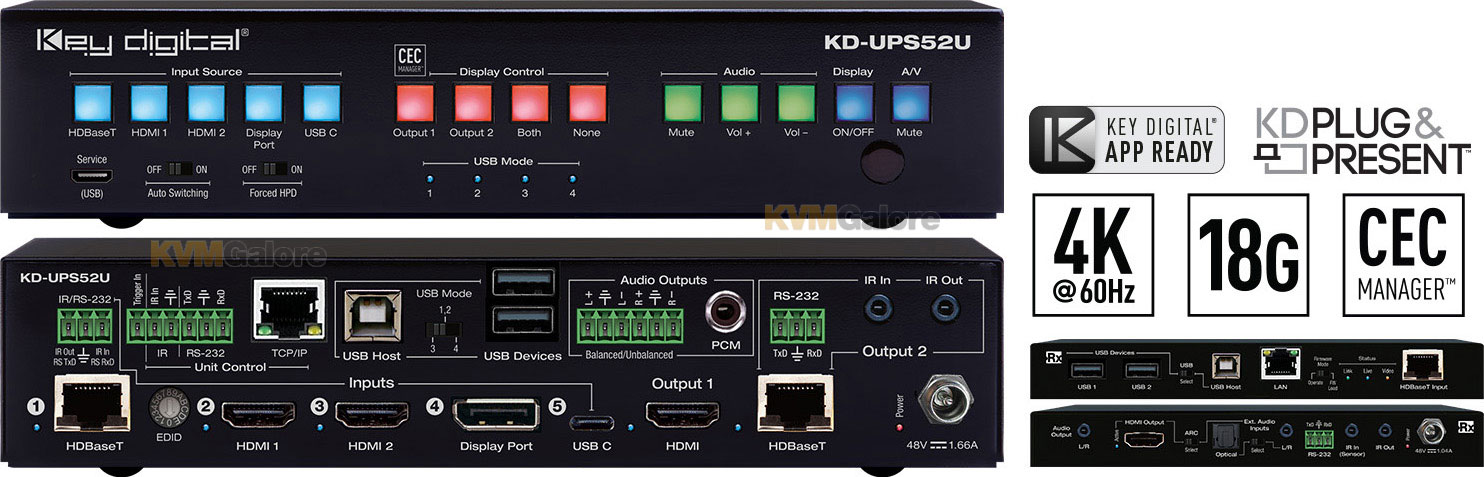

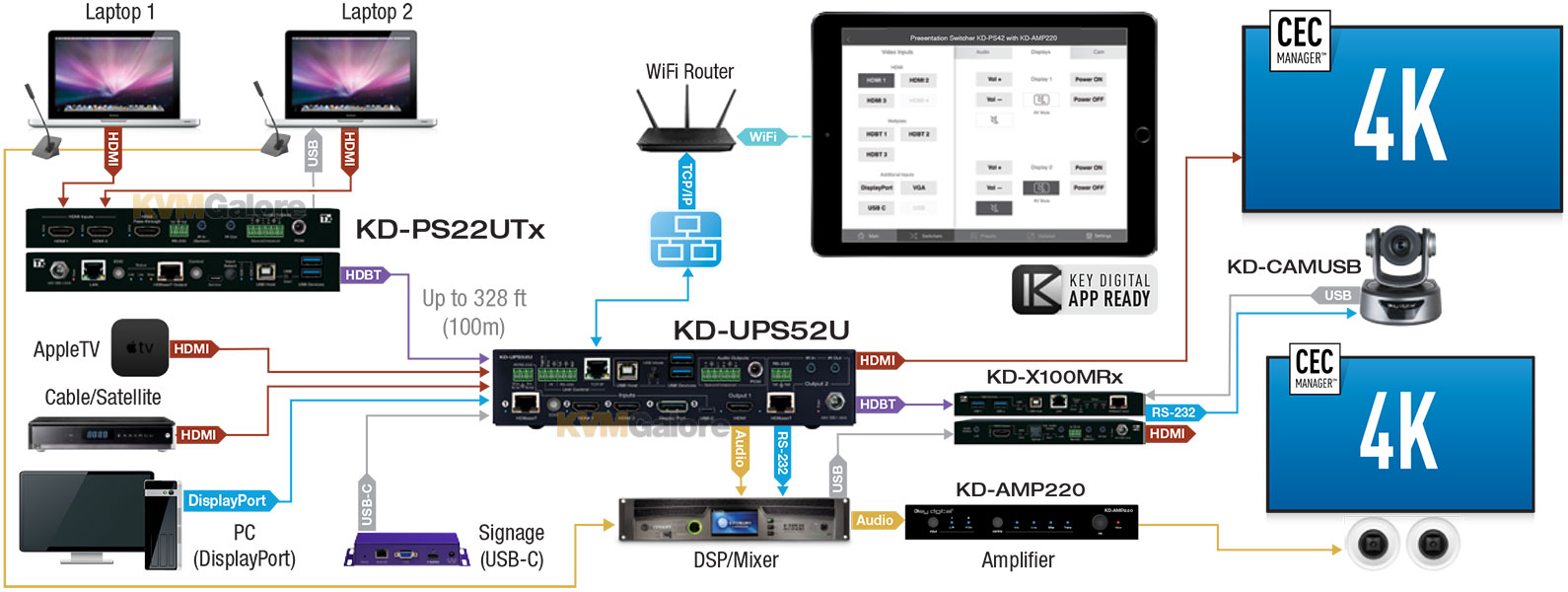

KD-UPS52U features 2xHDMI, 1x DisplayPort, 1x USB-C, and 1x HDBaseT inputs which integrates natively with universal presentation + USB switching wall plate transmitters, KD-X4x1WUTx, or KD-X3x1WUTx, or table mounted KD-PS22UTx (each sold separately).

KD-UPS52U also features 2x USB Type-A and 1x USB Type-B connectors, enabling connected laptops and computers to connect with web cams, USB microphones, touchscreen displays, conferencing DSPs, and more.

Mirrored HDMI and HDBaseT outputs enable audience + presenter views and the HDBaseT output marries in with the included KD-X100MRx for integrating monitors or projectors up to / 328 feet (100 m) away when the selected source is outputting 4K/Ultra-HD (up to 492 feet at 1080p).

Designed for professional audio video installations in conference rooms, board rooms, classrooms, lecture halls, auditoriums, and more, KD-UPS52U enables multiple video sources to be
displayed on up to two connected displays while analog (balanced/unbalanced) and digital (PCM) audio deembed ports feed audio of the selected source into an amplifier, DSP, or sound bar.

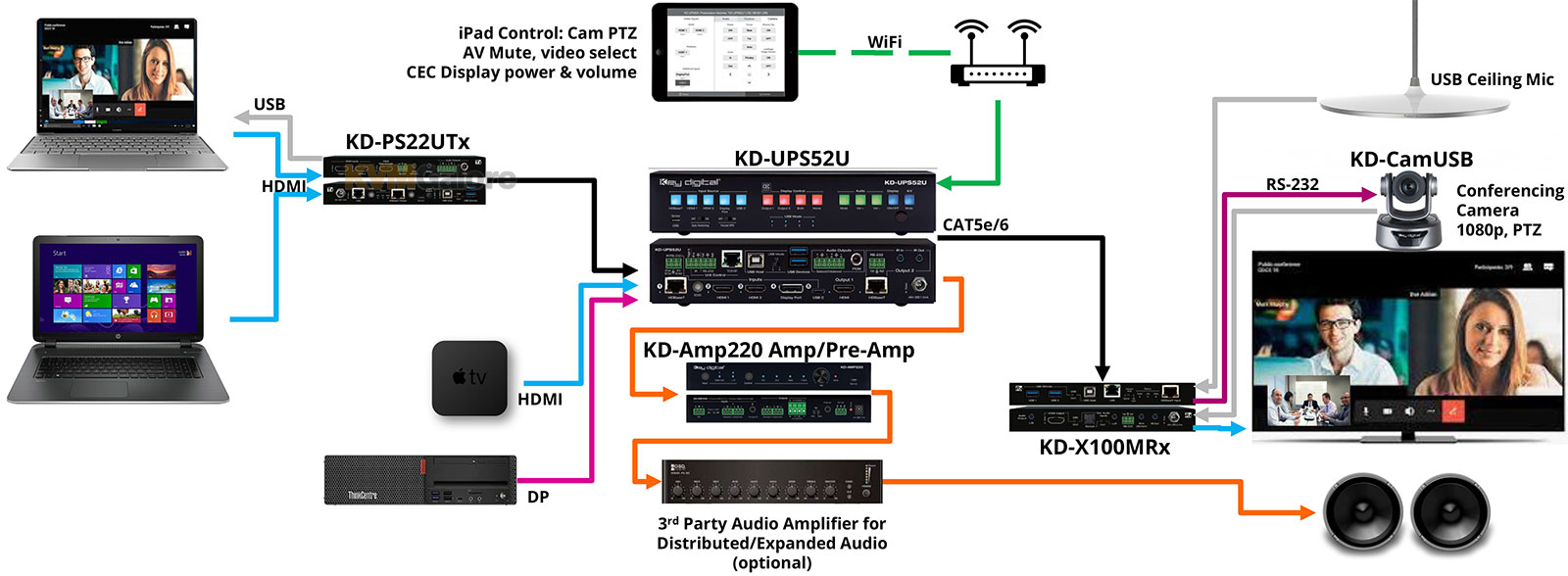

Integrating KD-UPS52U with KD-AMP220 and KD-CAMUSB will enable an app-ready all-in-one solution for control of video switching, sound and speech enforcement, and PTZ camera control.

Key Digital CEC Manager™ enables basic controls of the connected displays for a simplistic all-in-one integration system.

KD-UPS52U presentation switcher supports all SD, HD, VESA and Ultra-HD/4K video standards with HDR header information included in a variety of 4K EDID handshakes.

In addition to IR, RS-232, and TCP/IP control, KD-UPS52U can also be controlled via trigger voltage and features status-monitoring LEDs.

Features and Benefits
• Presentation Switcher Kit: Includes KD-UPS52U and KD-X100MRx. Add KD-X4x1WUTx wall plate HDBaseT Tx for plug-in on walls, floor and table boxes
• Presentation Switching: 1x HDBaseT, 2x HDMI, 1x DisplayPort, 1x USB-C source selection by push button, IP, RS-232, IR, auto switching, or trigger control
• Soft-Codec Enabling System: USB Host + Device ports on KD-UPS52U, KDX4x1WUTx wall plate transmit (sold separately) and KD-100MRx (included) create connectivity hub for professional USB cameras and microphones, audio DSP, keyboard, mouse, or touchscreen display with connected computer
• PTZ USB Camera Integration: Integrates natively with KD-CAMUSB for full PTZ control via KD-App and more
• Ultra HD/4K: Supports up to 4096x2160 or 3840x2160 24/25/30/60hz at 4:4:4 (signals up to 18Gbps bandwidth)
• Auto-Sensing: Automatic selection of newly detected source and switching from newly disconnected source when enabled
• CEC Manager™: Power, volume, and muting controls of the connected display/ projector without any additional control wiring. Selection of desired CEC command recipient
• Audio De-embedding: Audio of the selected source is de-embedded at the unit’s analog L/R balanced/unbalanced and PCM digital audio connectors
• ARC / eARC: Audio may be returned from the connected display or Rx (KD-X100MRx) unit and output on the external analog & digital outputs
• KD-AMP220 Control Mode: Command forward to KD-AMP220 for an all-in-one user-friendly control UI of video switching, audio and speech enforcement
• HDCP Licensing: Fully licensed and compatible with HDCP 2.2
• HDR10: More life-like images through a greater range of luminance levels
• Power over HDBaseT: Rx unit (included) and wall plate Tx unit (sold separately) powered by KD-UPS52U
• Installation: Half-rack width with rack mounting ears included
• 4K/Ultra-HD (18G) Signal Extension: Up to 100m / 328 feet
• 1080p Signal Extension: Up to 150m / 492 feet
• Deep Color Support: Up to Ultra-HD/4K 30Hz 4:4:4/12 bits or 60Hz 4:4:4/8 bit
• Full Buffer System™: Manages TMDS re-clocking / signal re-generation, HDCP authentication to source & display, EDID Control handshake, and Hot Plug Detection Voltage
• EDID Management: Internal library with 15 internal EDID handshakes including 4K with HDR in addition to native EDID data copied from the Rx display/device
• RS-232: Bi-Directional control to/from Tx and Rx/Presentation Switch unit
• Unit Control Mode: Provides TCP/IP and RS-232 control and status of/from Tx unit
• Lossless compressed digital audio: Support for Dolby® TrueHD, Dolby® Digital Plus, Dolby Atmos®, and DTS-HD Master Audio™
• Control System Support: Fully controllable by all TCP/IP and RS-232 supported control systems via open API: Compass Control® Pro, AMX®, Crestron®, KNX®, RTI®, Savant, URC®, Leviton® etc.
• KD-App Ready: Network scan & detect populates pre-built GUI including connected display/projector controls via CEC Manager

Included Accessories
1x Power supply (48V/1.66A, 80W)
1x Remote control and battery set (model KD-RMPS)
2x Mounting bracket (L-Bracket)
4x L-Bracket mounting screw
1x Half-rack ear mount
1x Short rack ear
