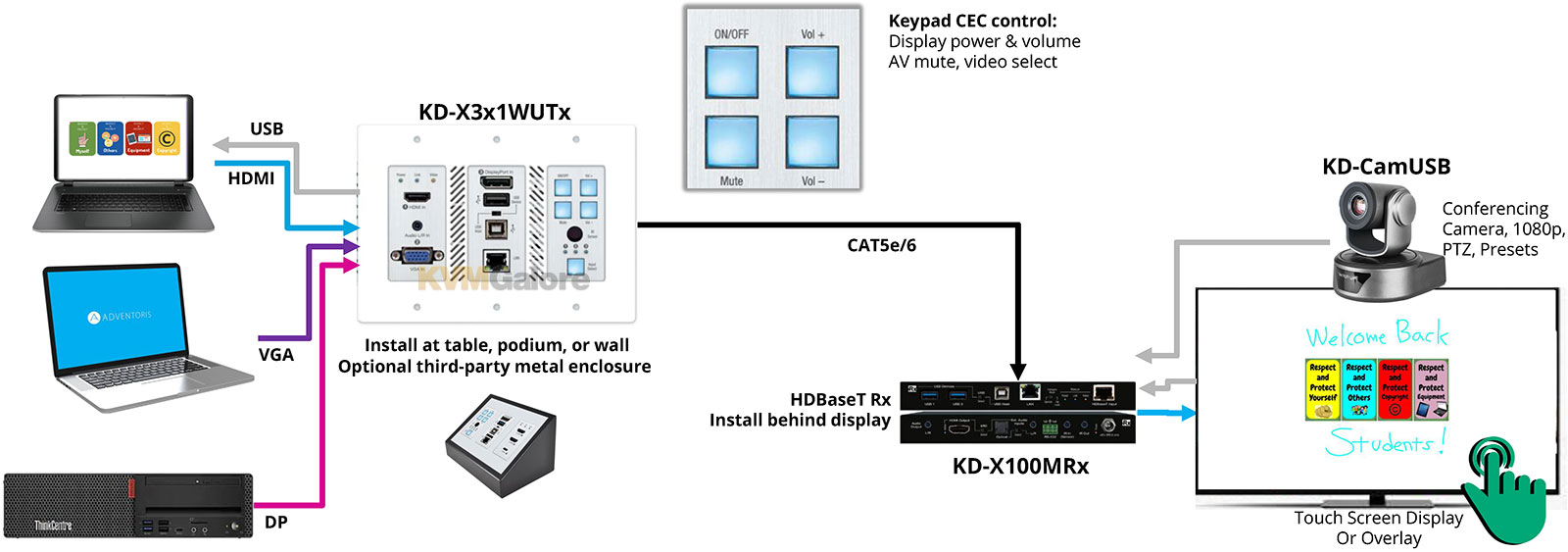

Image 2 of 3 - Application: Hybrid / Remote Classroom</BR>
Products shown: KD-X3x1WUTx, KD-X100MRx, KD-CamUSB</BR>
System Delivery: Connect USB and HDMI, Display Port, or VGA to your computer to present content and provide remote students an HD 1080p professional view of the classroom. CEC controls the monitor power and volume with no additional programming required. view

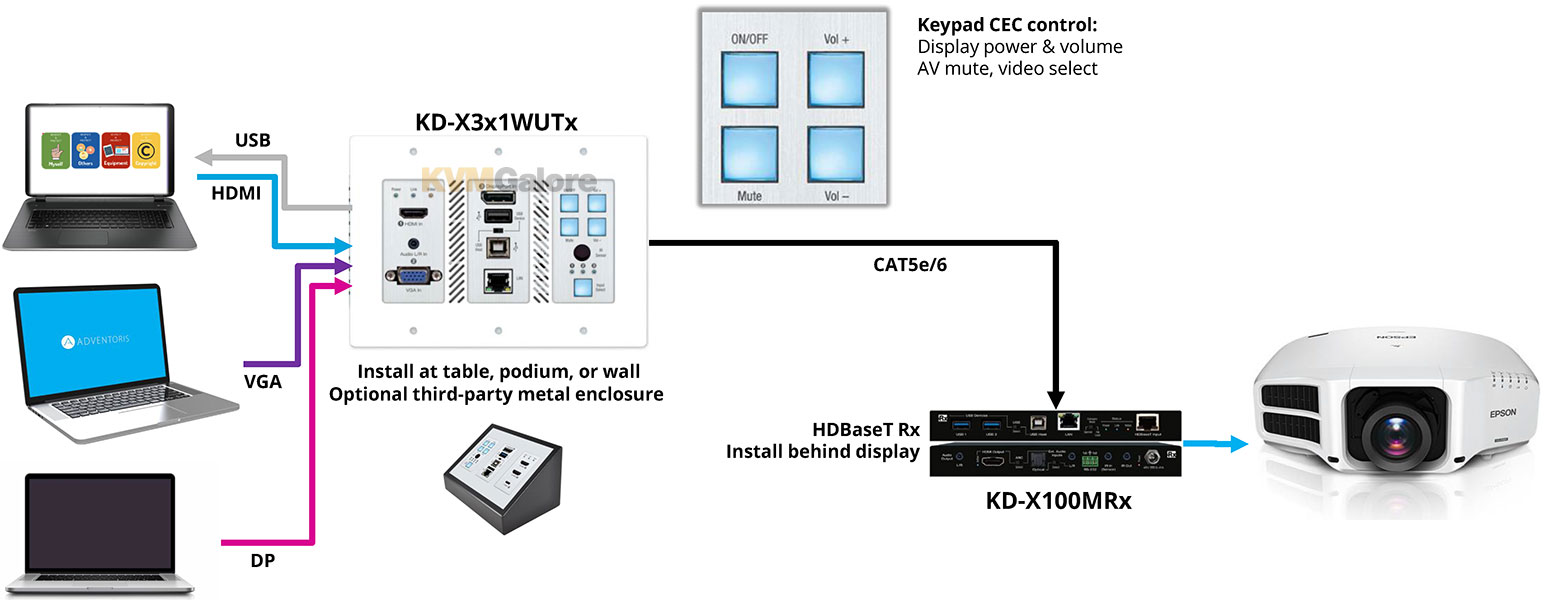

Image 3 of 3 - Application: Classroom</BR>
Products shown: KD-X3x1WUTx, KD-X100MRx</BR>
System Delivery: Connect USB and HDMI, Display Port, or VGA to your computer to present your content and extend USB devices such as keyboard, mouse, or interactive boards. CEC controls the monitor power and volume with no additional programming required. view

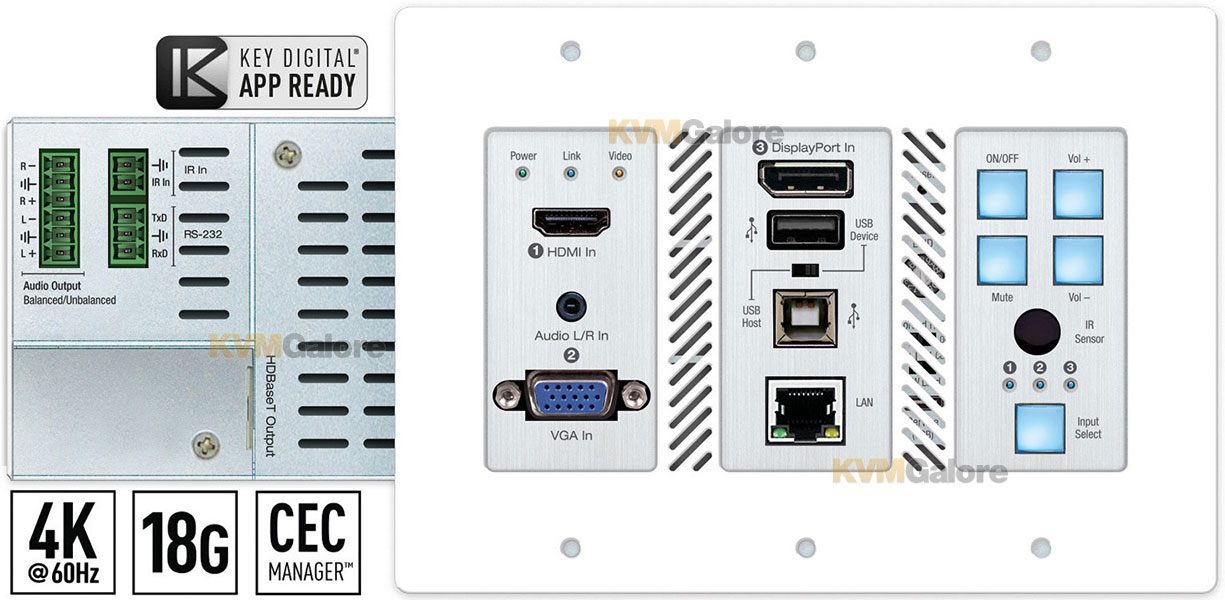

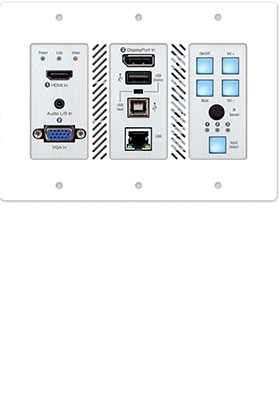

KD-X3x1WUTx

Model No. KD-X3X1WUTX In stock

KD-X3x1WUTx
Buy this item and earn 906 ClubPoints.

4K/Ultra-HD 18G HDMI, DisplayPort and VGA video + USB wall-plate transmitter

up to 328 feet over HDBaseT with auto switching, CEC control keypad, audio de-embedding, IR and RS-232 pass-thru, IP control, power over HDBaseT


Key Digital

Key Digital® KD-3x1WUTransmitter is an HDBaseT wall-plate transmitter + universal presentation switcher + soft-codec enabling interface with HDMI, Display Port, and VGA inputs, as well as USB Type-A and USB Type-B connections.

KD-X3x1WUTransmitter is ideal for professional video installations in conference rooms, class rooms, lecture halls, auditoriums, and more.

KD-X3x1WUTransmitter is natively received by KD-X100MRx or by KD-UPS52U presentation switcher. Both Receiver options have audio de-embedding for ease of integration with audio systems. Additional Key Digital presentation switchers also support integration with KDX3x1WUTransmitter.

KD-X3x1WUTransmitter features push-button or IP switching and is KD-App ready. CEC Manager™ keypad enables basic controls of the connected display for a simplistic all-in-one integration system.

KD-X3x1WUTransmitter is HDCP 2.2 compliant and supports 4K/Ultra-HD 24/25/30/60 (4:4:4) resolutions with up to 18Gbps bandwidth. 4K/Ultra-HD signals are  extended up to 328 feet and 1080p up to 492 feet via single CAT-5e/6 cable.

In addition to AV signals, KD-X3x1WUTransmitter extends USB 2.0, IR, RS-232 for controlling remotely located equipment.

The wall-plate unit fits in a standard US three-gang box and is powered by the Receiver unit or presentation switcher for convenient installation.

Features and Benefits
• Presentation Switching: 1x HDMI, 1x VGA+L/R, 1x Display Port, and 1x USB-C source selection by push button or IP control
• Installation: Fits in standard US 3-gang wall box or table and wall AV boxes
• Receiver Options: Native integration with KD-X100MRx black box HDBaseT Receiver or KD-UPS52U presentation switcher
• Soft-Codec and KVM Enabling System: USB Host + Device ports create connectivity hub for professional USB cameras and microphones, audio DSP, keyboard, mouse, or touchscreen display with connected computer
• Ultra-HD/4K: Supports up to 4096x2160 or 3840x2160 24/25/30/60hz at 4:4:4 (signals up to 18Gbps bandwidth)
• Auto-Sensing: Automatic selection of newly detected source and switching from newly disconnected source when enabled
• CEC Manager™: Power, volume, and muting controls of the connected displays/projectors without any additional control wiring
• Audio De-Embedding: Audio of the selected source is de-embedded at the unit's analog L/R balanced/unbalanced and PCM digital audio connectors
• ARC / eARC: Audio may be returned from the connected Receiver (KD-X100MRx) unit and output on the external analog output
• KD-App Ready: Network scan and detect populates pre-built GUI including connected display/projector controls via CEC Manager™
• KDPlug and Present™ Ready: Add KD-CX800 to build a programming-free automation system
• Ease of Integration: Complete configuration using Key Digital Management Software™ Pro
• HDCP Licensing: Fully licensed and compatible with HDCP 2.2
Key Digital App Ready• HDR10: More life-like images through a greater range of luminance levels
• Power over HDBaseT: Wall-plate unit powered by Receiver/Presentation Switch unit
• Installation: Transmitter unit designed for installation in standard US three-gang box
• Signal Extension: For resolution and cable quality – 4K/Ultra-HD (18G): Up to 328 feet; 1080p: Up to 492 feet
• Deep Color Support: Up to Ultra-HD/4K 30Hz 4:4:4/12 bits or 60Hz 4:4:4/8 bit
• Full Buffer System™: Manages TMDS re-clocking / signal re-generation, HDCP authentication to source and display, EDID Control handshake, and Hot Plug Detection Voltage
• EDID Management: Internal library with 15 internal EDID handshakes including 4K with HDR in addition to native EDID data copied from the Receiver display/device
KDMS-Pro• IR Sensor: Wall-plate collects line-of-sight IR from remote(s) without external IR wiring
• RS-232: Bi-Directional control to/from Transmitter and Receiver/Presentation Switch unit
• Lossless compressed digital audio: Support for Dolby® TrueHD, Dolby® Digital Plus, Dolby Atmos®, and DTS-HD Master Audio™
• Control System Support: Fully controllable by all TCP/IP and RS-232 supported control systems via open API: Compass Control® Pro, AMX®, Crestron®, KNX®, RTI®, Savant, URC®, Leviton® etc.

Included Accessories
1x USB Type-A to USB Micro data cable
1x Aluminum decora plate
6x Decora mounting screws with flat head
6x Gang-box mounting screws
1x 6-pin phoenix terminal
1x 3-pin phoenix terminal
1x 2-pin phoenix terminal
