CL3884NW - Model No. CL3884NW - KVMGalore® | Tech Solutions Made Easy™
ATEN
  • MSRP $3,740.00
  • Savings$187.00
  • Our Price $3,553.00
For additional views click on an image below
Image 1 of 7 view
Image 2 of 7 view

Image 3 of 7 view
Image 4 of 7 view

Image 5 of 7 view
Image 6 of 7 view

Image 7 of 7 view

CL3884NW

Model No. CL3884NW Ships in 7-10 business days or less

CL3884NW
Buy this item and earn 3,553 ClubPoints.

4-port USB-HDMI multi-view dual-rail LCD KVM rack-mount console/switch

18.5" wide-screen supporting Full-HD


• Multi-view console controls up to four video sources on one screen with display modes including quad view, picture in picture (PiP), picture by picture (PbP), and picture on picture (PoP)
• Integrated KVM console with an 18.5" LED-backlit widescreen LCD monitor in a dual-rail housing with top and bottom clearance for smooth operation in a 1U high system rack
• Easily resizes and/or repositions any PiP or PbP to suit users' viewing needs
• Superior video quality – 1920x1080 @ 60Hz

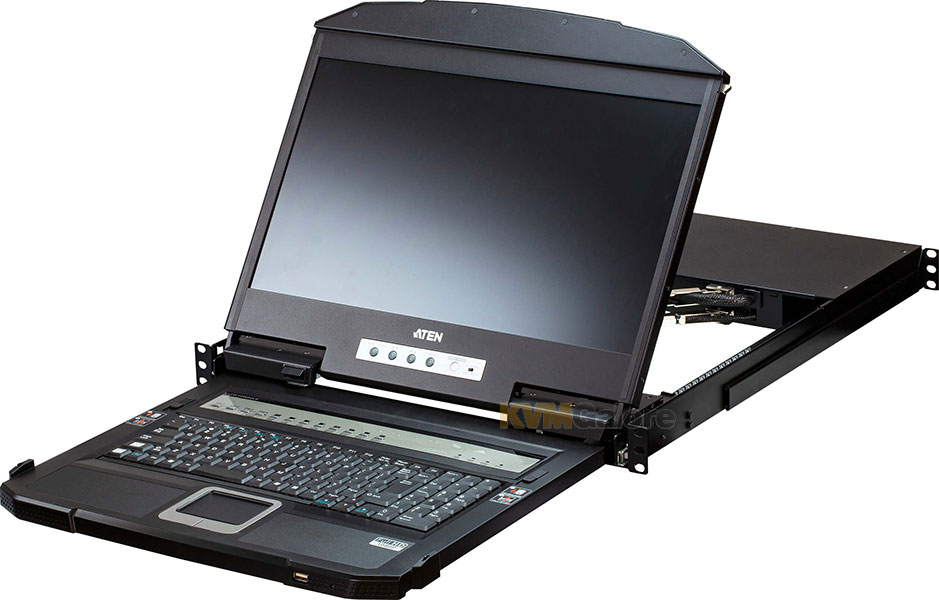

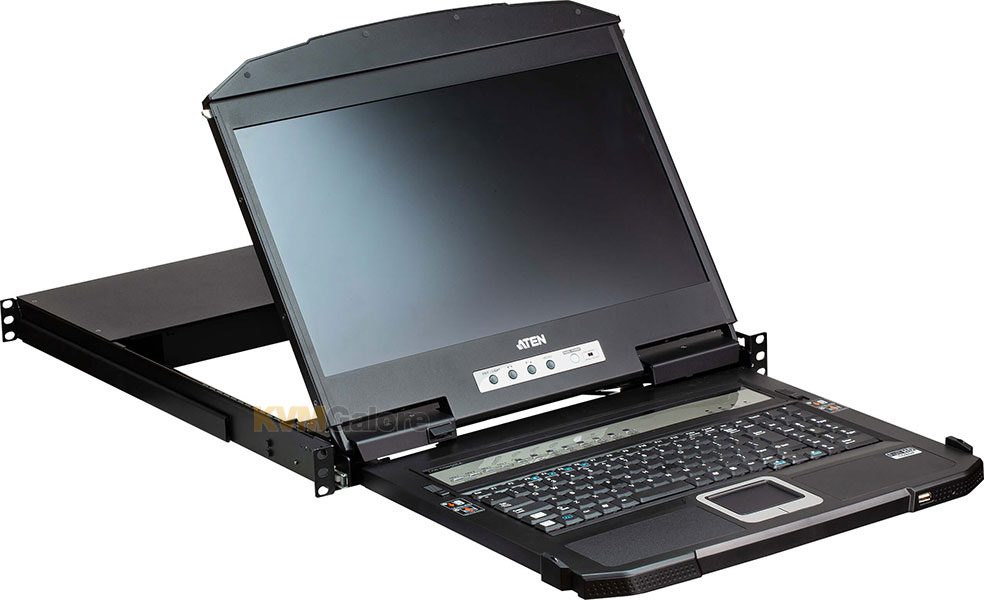

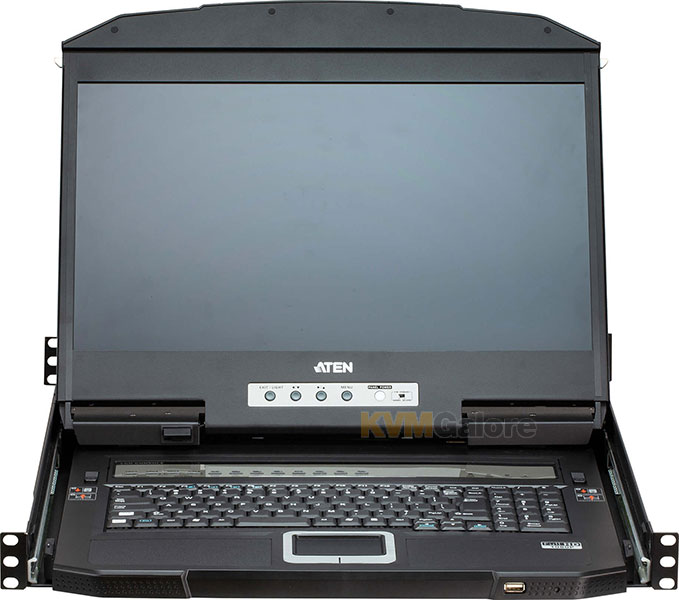

ATEN CL3884NW LCD KVM switch offers a space-saving, streamlined approach to KVM switch technology by integrating a keyboard, 18.5" LED-backlit LCD monitor, and a touchpad in a 1U rack-mountable slide housing.

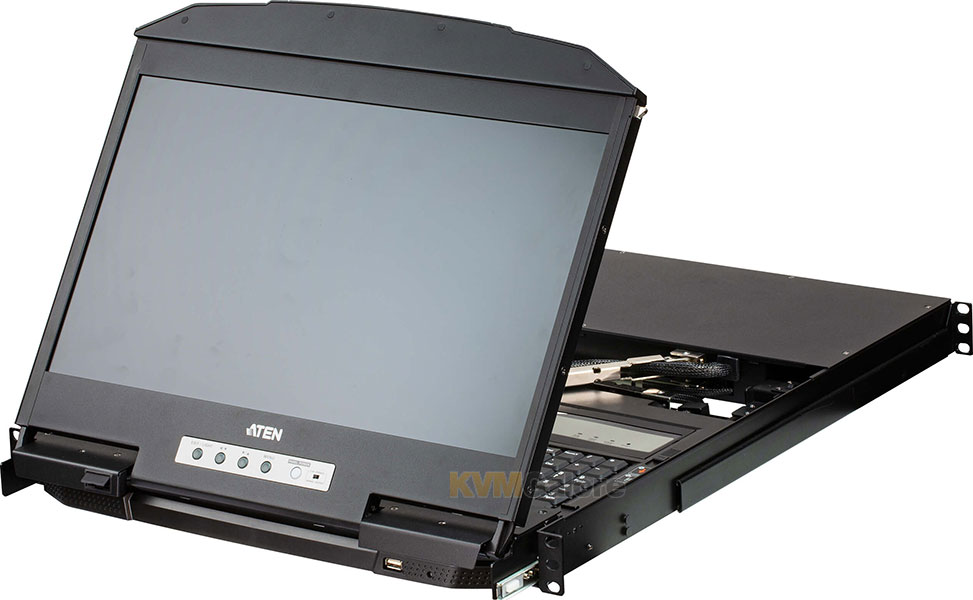

The dual-rail design enables the LCD monitor, keyboard and touchpad to operate independently of each other. To maximize space utilization, the keyboard and touchpad modules can slide back to "hideaway" when not in use, while the LCD monitor rotates back, flush against the rack, to allow convenient monitoring of computer activity.

CL3884NW offers dual-console outputs that guarantees users real-time monitoring functionality. You can control both outputs to display the following display modes:
• Quad view
• Picture in picture (PiP)
• Picture by picture (PbP), and
• Picture on picture (PoP)

CL3884NW



CL3884NW



CL3884NW

The display modes have different layout options to allow you to customize which sources are being displayed. In addition, being able to cascade up to 2 levels, CL3884NW can reach up to a maximum of 16 video sources that can be simultaneously displayed and controlled with independent keyboard and mouse.

Featuring Boundless Switching, CL3884NW allows users to switch control to another computer by simply moving the mouse cursor across a screen border and onto the target computer display without limitations.

With patented ATEN technology – Video DynaSync™, users can enjoy better display resolutions and faster switching between systems. What's more, the EDID modes are available for smooth power-up, high-quality display that eliminates monitor compatibility issue.

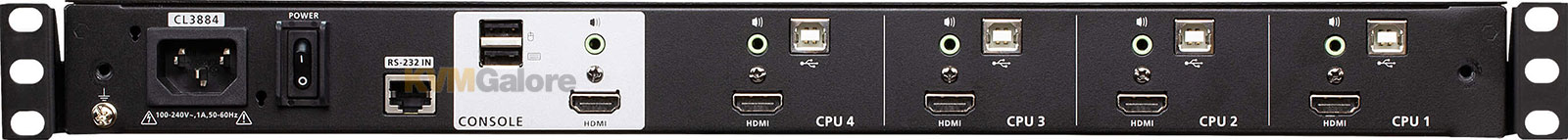

For added convenience, users can choose to manage the computer from an external console. CL3884NW features a USB peripheral port on the unit's front panel, ports for the external KVM console (USB keyboard/mouse and HDMI monitor) on the rear panel, and audio ports for connecting audio speakers.

As a feature-rich LCD KVM switch, CL3884NW is aimed not just to achieve but exceed the requirements for space utility optimization, superior video quality, adaptive deployment, and operational versatility, and is especially ideal for control rooms in any industry that seeks effective and efficient use of space.

Flexible Display Modes
CL3884NW supports quad view, picture in picture (PiP), picture by picture (PbP), picture on picture (PoP), and full-screen mode. Users can change size and location of each video source and easily click on demand to control PC.

Boundless Switching
Boundless Switching is a patented ATEN technology. By moving the mouse cursor across different windows, users are allowed to switch KVM focus among multiple sources. The mouse cursor can be moved to another window in any direction and instantly access the target computer.

Expandability

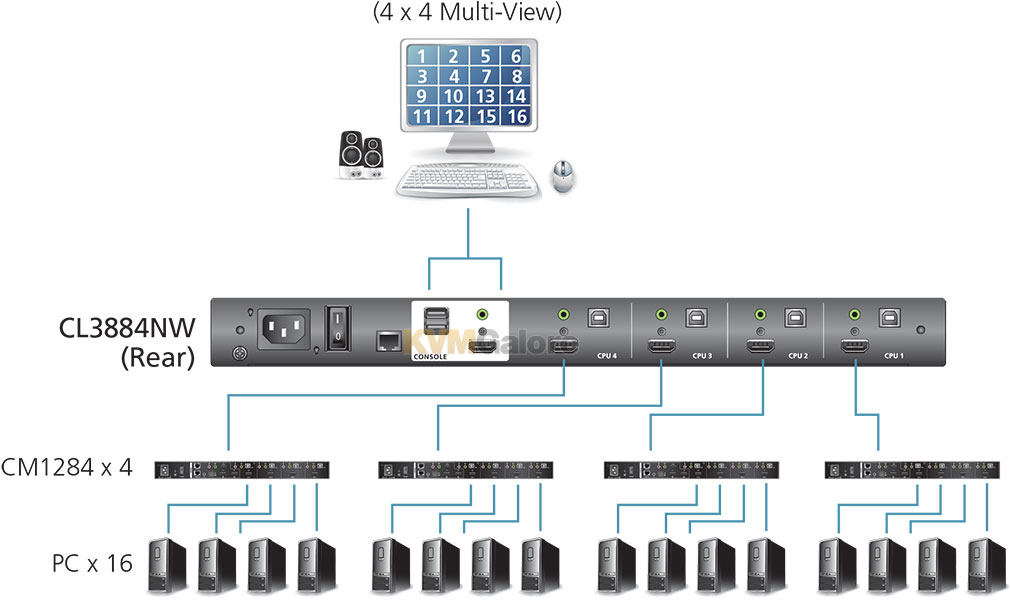

CL3884NW can be cascaded up to 2 levels to control 16 computers and support up to 4x4 Multi-View mode.

Video DynaSync™
ATEN's exclusive Video DynaSync™ technology automatically detects the horizontal and vertical offset values of each computer's display settings and synchronizes them with the monitor users are working on, ensuring that the display resolution will always be correct when switching among different video sources.

Reliability and Operational Versatility
• Multi-view console controls up to four video sources on one screen with display modes including quad view, picture in picture (PiP), picture by picture (PbP), and picture on picture (PoP)
• Quick Access Toolbar – intuitive user interface for editing
• Supports an extra console via USB/HDMI connectors for up to two console displays**
• Display mode layout customization
• Superior video quality – 1920x1080 @ 60Hz
• Computer selection via pushbuttons, hotkeys, OSD, and RS-232 commands
• Boundless Switching – simply moves the mouse cursor across windows to switch to other video sources
• Video DynaSync™ – an exclusive ATEN technology that eliminates boot-up display problems and optimizes the resolution when switching among different sources
• Easily resizes and/or repositions any PiP or PbP to suit users' viewing needs
• EDID Expert™ – selects optimum EDID settings for smooth power- up, high-quality display and use of the best video resolution across different screens
• Cascade up to 2 levels – controls up to 16 computers (with up to 4x4 multi-view mode)
• Auto-scan mode – enables continuous monitoring of user-selected computers
• Broadcast mode – allows you to send commands from the console to all computers to perform operations simultaneously
• Additional hot-pluggable USB peripheral port on front panel

Space Utility Optimization
• Exclusive LED illumination light – designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
• Integrated KVM console with an 18.5" LED-backlit widescreen LCD monitor in a dual-rail housing with top and bottom clearance for smooth operation in a 1U high system rack
• dual-rail design allows LCD monitor and keyboard/touchpad modules to operate independently
• Console lock – enables the console drawer to remain securely locked away in position when not in use

Installation Flexibility
• Standard rack mount kit included
• Optional easy-installation rack-mount kits available*
• No software required
• Firmware upgradable
• Supports hot-plugging

Rack Mount Kit
Slideaway™ LCD KVM switches/consoles allow you to choose from a host of optional rack mount kits to meet your needs, including the single-person easy-installation rack-mount kit, which streamlines the rack mounting process.
Normal rack mounting procedures call for at least two people to rack mount a KVM switch/console. The single-person easy-installation rack-mount kit enables one person to rack mount a Slideaway™ LCD KVM switch/console.

In just a matter of minutes, your new Slideaway™ LCD KVM switch/console can go from the box to the rack. For convenience and flexibility, there are one standard and three optional rack mount kits available:

CL3884NW

Package Contents
1x CL3884NW LCD KVM switch with standard rack-mounting kit
2x KVM cable sets (USB, HDMI, Audio; 1.8m)
2x L brackets
1x Power cord
1x User instructions

* The easy-installation rack-mount kit is sold separately.
** Both outputs can provide a combination of multi-view display modes simultaneously. However, you can only have one of the two outputs set to full-screen mode.
