GefenToolBox HD Pattern Signal Generator

Model No. GTB-HD-SIGGEN In stock

GefenToolBox HD Pattern Signal Generator
Buy this item and earn 968 ClubPoints.

GTB-HD-SIGGEN: Evaluate, calibrate and test digital video equipment

GefenToolbox HD Pattern Signal Generator is the most advanced testing device for your audio and video equipment: 39 built-in timings, 41 patterns, and 4 data analysis patterns provide over a thousand testing combinations for both analog and digital devices.

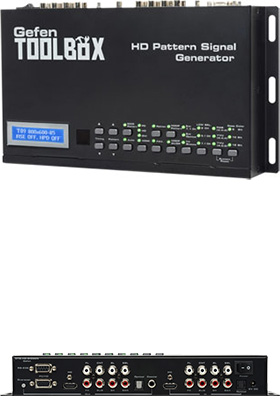

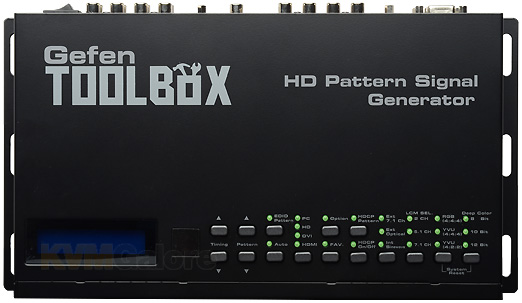

The front panel LCD screen provides easy viewing of functions and features for each timing/pattern.

This device can be conveniently controlled via the front panel buttons, the IR remote or the downloadable software from the Gefen Web site. In addition to its portability, this signal generator is wall-mountable and field-upgradeable.

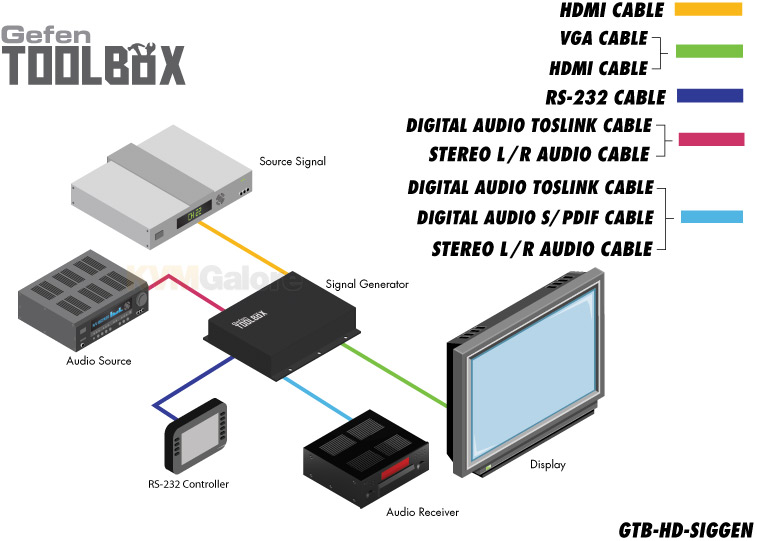

How It Works

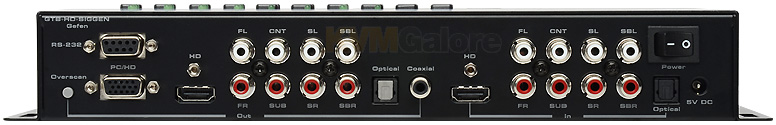

Connect the HDMI or VGA output ports of the GefenToolbox HD Pattern Signal Generator to your HDTV display (DVI displays can be connected using a HDMI-DVI adapter, and Component Video displays by using a VGA-Component Video adapter). Power-on all equipment. The front panel LCD will display all features and options of the active timing and pattern. You can feed digital or analog audio into the generator's rear panel and hear multi-channel digital audio or use the built-in sine wave test tone.

Features and Benefits
• Multi-format video output for SD and HD video up to 1080p
• PC/HD resolutions up to UXGA / WUXGA (1920 x 1200)
• 39 timings, 41 patterns, and 4 data analysis patterns
• Supports RGB 4:4:4, YCbCr 4:4:4, and YCbCr 4:4:2 color spaces
• Supports NTSC and PAL frame rates
• 2 CH, 5.1 CH, and 7.1 CH LPCM internal sine wave generator
• RS-232 control via the downloadable software from the Gefen Web site
• Small form factor; easy to transport
• Supports HD timings for VGA output
• HDCP Pattern
• Supports reading and copying EDID functionality
• User Friendly Interface - LCD Display, LED indicators and Software
• Deep Color support up to 12-bit
• HDMI 1.3 and DVI 1.0 Compliant
• HDCP Compliant

Package Includes
(1) GefenToolBox HD Pattern Signal Generator
(1) 6 ft. HDMI cable (M-M)
(1) 5 V DC Locking Power Supply
(1) User Manual
