XPRA120-103D20TL6 - Model No. 15654VH - KVMGalore® | Tech Solutions Made Easy™
Vertiv Geist
  • MSRP $816.00
  • Savings$123.00
  • Our Price $693.00
For additional views click on an image below
Image 1 of 1 view


Model No. 15654VH Usually ships within 7 business days or less

Buy this item and earn 693 ClubPoints.

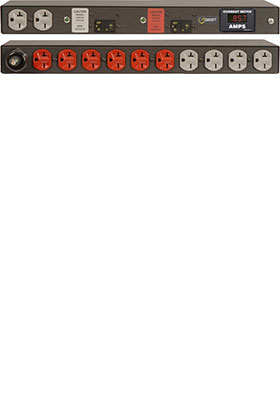

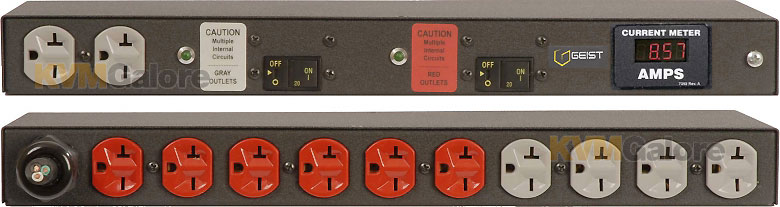

15654VH: Metered, standard PDU, 30A, 208V, rack-mount, 10x rear & 2x front NEMA 6-20R receptacles

breakered w/ on/off switch, 10-foot cord with twist-lock NEMA L6-30P plug, local current monitoring, black powder coat finish

Improve reliability, energy efficiency, and prevent crippling downtime caused by overloads using Geist's metered PDU. Equipped with a local digital display, this metered PDU provides power consumption metrics instantly, ideal for when deploying or moving critical server equipment.

Geist metered PDUWithout built-in surge protection, XPRA120-103D20TL6 is equipped with a local digital current meter that provides real-time local load monitoring and helps to avoid potential overloads.

This metered PDU is ideal for installations in facilities with proper surge protection at the main electrical service entrance.

Monitoring: Current; local; aggregate - total unit monitoring; digital RMS current meter +/- 2% accuracy with full scale 60Hz sine wave input.

Plug Receptacles
L6-30P NEMA 6-20R
Twist-lock NEMA L6-30P 10x rear & 2x front NEMA 6-20R

• Local display
• Horizontal, 19" rack-mount form factor, 1U
• Volts: 208V
• Amps: 30A
• kW-input: 4.9kW
• Cord length: 10 feet
• Circuit breaker: Yes
• On/off switch: Yes
