BREAN162-0020/16 - Model No. 12114 - KVMGalore® | Tech Solutions Made Easy™
Vertiv Geist
  • MSRP $440.00
  • Savings$66.00
  • Our Price $374.00
For additional views click on an image below
Image 1 of 1 view


Model No. 12114 Usually ships within 7 business days or less

Buy this item and earn 374 ClubPoints.

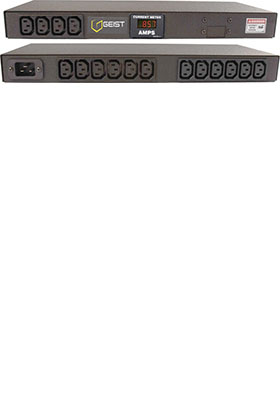

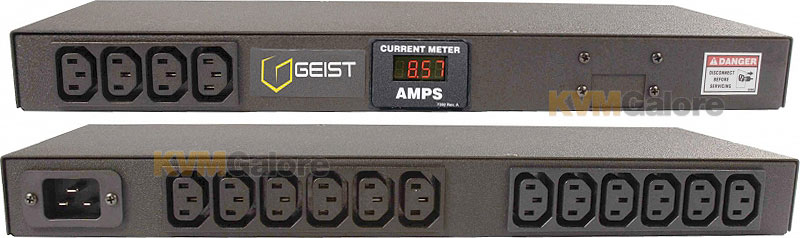

12114: Metered, standard PDU, 20A, 120V or 208V, rack-mount, 16x IEC C13 receptacles

with IEC 60320 C20 inlet (no cord), local current monitoring, black powder coat finish

Improve reliability, energy efficiency, and prevent crippling downtime caused by overloads using Geist's metered PDU. Equipped with a local digital display, this metered PDU provides power consumption metrics instantly, ideal for when deploying or moving critical server equipment.

Geist metered PDUWithout built-in surge protection, BREAN162-0020/16 is equipped with a local digital current meter that provides real-time local load monitoring and helps to avoid potential overloads.

This metered PDU is ideal for installations in facilities with proper surge protection at the main electrical service entrance.

Monitoring: Current; local; aggregate - total unit monitoring; digital RMS current meter +/- 2% accuracy with full scale 60Hz sine wave input.

Plug                                            Receptacles
C20                                       NEMA 6-20R
BREAN162-0020/16IEC 60320 C20 Inlet (no cord)      16x IEC C13 (12x rear; 4x face)

• Local display
• Horizontal, 19" rack-mount form factor
• Volts: 120V or 208V
• Amps: 20A
• kW-input: 1.9 or 3.3kW
• No cord
• Circuit breaker: No
• On/off switch: No
