BRCN100-1025 - Model No. 29061VH - KVMGalore® | Tech Solutions Made Easy™
Vertiv Geist
  • MSRP $412.00
  • Savings$63.00
  • Our Price $349.00
For additional views click on an image below
Image 1 of 1 view

BRCN100-1025

Model No. 29061VH Usually ships within 7 business days or less

BRCN100-1025
Buy this item and earn 349 ClubPoints.

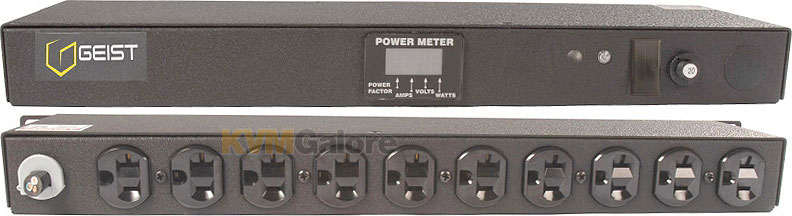

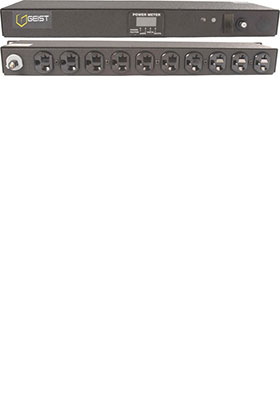

29061VH: Metered, standard PDU, 20A, 120V, rack-mount, 10x NEMA 5-20R rear receptacles

breakered, 10-foot cord with 5-20P plug, local power monitoring, black powder coat finish


Improve reliability, energy efficiency, and prevent crippling downtime caused by overloads using Geist's metered PDU. Equipped with a local digital display, this metered PDU provides power consumption metrics instantly, ideal for when deploying or moving critical server equipment.

Geist metered powerWithout built-in surge protection, BRCN100-1025 is equipped with a local digital current meter that provides real-time local load monitoring and helps to avoid potential overloads.

This metered PDU is ideal for installations in facilities with proper surge protection at the main electrical service entrance.

Monitoring: Power (Amps; Volts; Watts; Power Factor); local; aggregate - total unit monitoring; Digital RMS scrolling power meter +/- 2% accuracy with full scale 60Hz sine wave input.

Plug              Receptacles
5-20P            5-20R
BRCN100-10255-20P            NEMA 5-20R (quantity: 10)

• Local display: Yes
• Environmental: No
• Configuration: Horizontal
• Rack-mount / Length: 19 in / 483 mm
• Volts: 120V
• Amps: 20A
• kW-input: 1.9kW
• Plug type: NEMA straight blade
• Plug form: 5-20P
• Plug quantity: 1
• Cord length: 10 feet
• Circuit breaker: Yes
• On/off switch: No
• Receptacle type: NEMA 5-20R
• Receptacle quantity: 10
