EXT-DVI-FM1000: Extend DVI over one strand of fiber cable

up to 984 feet (300 m) away

The DVI-FM1000 Extender extends your DVI display up to 3280 feet (1000 m) away from your video source, with only two tiny transceivers required, using a 100% optical SC fiber solution with a single strand of fiber optic cable. It's a great way to extend DVI video easily and unobtrusively.

How It Works

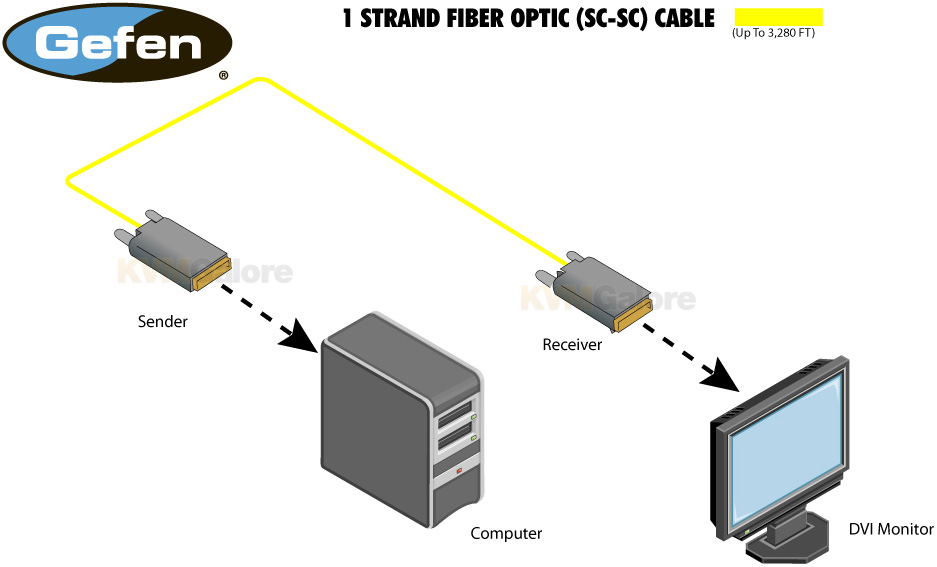

The DVI-FM1000 sender unit plugs into your computer. The DVI FM1000 receiver unit plugs into your DVI display. A single strand of multimode SC fiber optic cable connects the Sender and the Receiver units to each other.

100% optical signal transmission media insures that the video signal is completely invulnerable to electromagnetic interference (EMI).

Note: The distance that video can be sent will depend on the resolution of the signal being sent:
• 1920x1200 will be extended up to 984 feet (300 m)
• 1600x1200 will be extended up to 1640 feet (500 m)
• 1280x1024 will be extended up to 3280 feet (1000 m)

Features and Benefits:
• Extends any DVI (Digital Visual Interface)-compliant device up to 3280 feet (1000 m) from the computer
• Supports video resolutions up to 1080p and 1920x1200
• Uses inexpensive and widely available single-strand multimode SC fiber optic cable
• Automatic EDID Programming feature enables quick and correct sync of source to display
• Invulnerability to electromagnetic influences (EMI), thanks to all-fiber construction.
• Saves space on your desktop and increases productivity
• Eliminates computer noise where you work
• Supports DDWG standard for DVI compliant monitors

Package Includes
1x DVI FM Sender Unit
1x DVI FM Receiver Unit
2x 5V 1A Power Supplies
