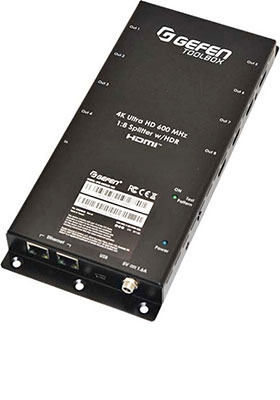

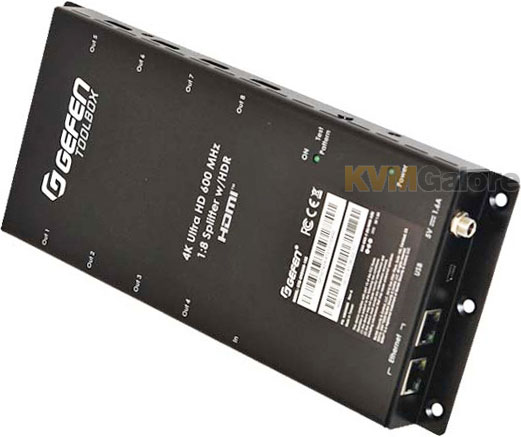

GTB-UHD600-18S-RT: 8-port, 4K Ultra-HD 600MHz HDMI splitter with HDR

• 600 MHz; 4K Ultra-HD @ 60Hz; 4:4:4
• Designed to support multiple layers of splitting/cascading, supporting hundreds of displays
• Supports the latest high dynamic range (HDR) sources and displays for stunning contrast and color accuracy

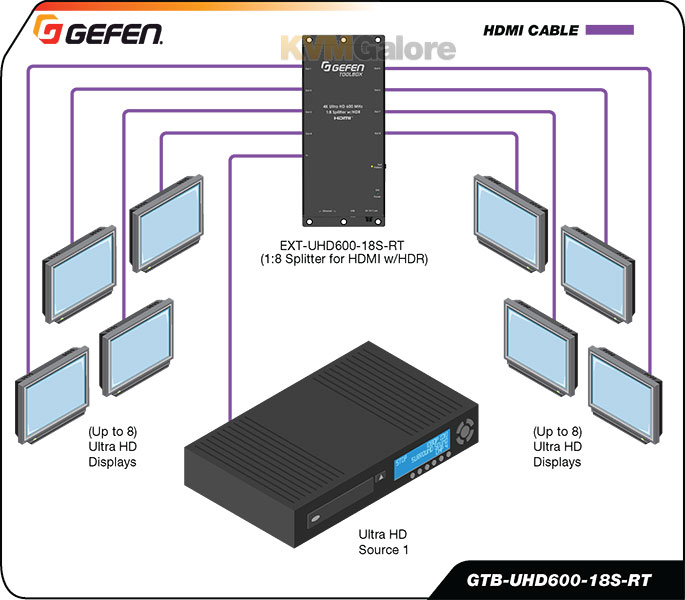

Gefen GTB-UHD600-18S-RT routes one full bandwidth 4K Ultra-HD 600 MHz source to eight 4K Ultra-HD 600 MHz or Full HD 1080p displays.

Independent scalers built into each output will automatically downscale the signal when connected to a 1080p TV.

This HDCP-compliant product has been specifically designed to support over 10 layers of splitting/cascading for flawless performance in large video distribution and signage applications, supporting hundreds of displays.

Cutting edge Smart CEC Management system built into GTB-UHD600-18S-RT communicates with the source, other compatible splitters and the displays. It guarantees that a picture is always present on all displays by ensuring that connected displays are on and switched to the correct input.

A built-in Pattern Generator helps in troubleshooting during installation or for routine maintenance.

Resolutions up to 4K DCI (4096x2160 at 60Hz), 4K Ultra-HD (3860x2160 at 60Hz, 4:4:4 color space), 1080p Full HD, and 1920x1200 WUXGA are supported.

HDR and multi-channel digital audio including 7.1 channels of LPCM and HBR (High Bit Rate) lossless formats are also passed through.

Gefen 1:8 splitter is the perfect choice for any small or large 4K video distribution system.

Gefen's GTB-UHD600-18S-RT is designed to work with Gefen's Syner-G™ software suite. EDID and HDCP management, status monitoring, and firmware updates can be done in minutes using the Gefen Syner-G™ software.

Features and Benefits
• Simultaneously displays an Ultra Hi-Def source on up to eight Ultra-HD displays
• Specifically designed to support multiple layers of splitting/cascading in large video distribution and signage applications, supporting hundreds of displays
• Supports resolutions up to 4K DCI-Cinema (4096x2160 at 60Hz, 4:4:4 color space), 4K Ultra-HD (3860x2160 at 60Hz, 4:4:4 color space), 1080p Full HD, and 1920x1200 WUXGA
• Supports HDR (High Dynamic Range) 10-bit Deep Color at 4K 4:4:4
• Supports 12-bit Deep Color at 1080p 4:4:4
• Supports HDR to SDR conversion
• Supports 4K to 1080P Auto-Downscale
• Supports built-in 1080P test pattern generator
• IP control via Telnet and UDP
• Supports Smart CEC control including IP to CEC bridge
• 3DTV pass-through
• Lip Sync pass-through
• EDID Management and Audio Mode selectors for rapid integration of source and displays
• Supports LPCM 7.1, Dolby Atmos®, Dolby® TrueHD, DTS:X™, and DTS-HD Master Audio™
• Supports the use of DVI sources and DVI displays with HDMI-to-DVI adapters (not included)
• Gefen Syner-G™ software’s Discovery and Show-Me features simplify initial IP configuration
• Advanced EDID Management via Virtual Serial over USB, Telnet or UDP
• In-field firmware update via USB or via web interface
• Low-profile, surface-mountable enclosure

Package Includes
1x 4K Ultra-HD 600 MHz 1:8 Splitter w/HDR and Scaling
1x 4K Ultra-HD 600 MHz 1:8 Splitter Quick-Start Guide
1x 5v/2.6A Power Supply (EXT-PS526AIP-LP-6)
