16-port ultra-short-depth single-rail wide-screen LCD KVM drawer/switch

supporting VGA computers with USB and PS/2 keyboard/mice

• Exclusive LED illumination light
• Integrated LCD KVM console with an 18.5'' LED-backlit wide-screen LCD monitor in a single rail housing with top and bottom clearance for smooth operation in a 1U high system rack
• Cascade up to 2 levels – control up to 256 computers from a single console
• Keyboard and mouse emulation (PS/2 and USB) for smooth switching and simultaneously booting multiple computers even when the console focus is elsewhere

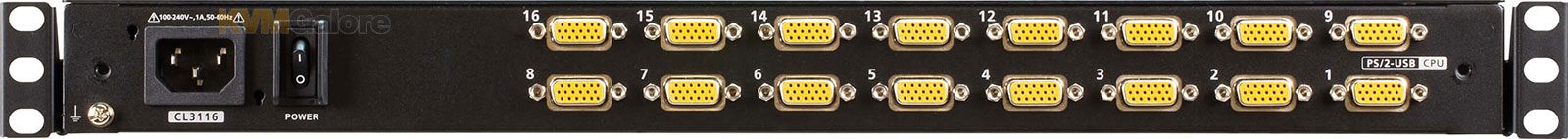

ATEN CL3116 LCD KVM drawer/switch offers a space-saving, streamlined approach to KVM switch technology by integrating a keyboard, 18.5" LED-backlit LCD monitor, and a touchpad in a 1U rack-mountable sliding housing. The short-depth design maximizes space utility for equipping rack-mounting devices in narrow spaces. In addition, its exclusive LED illumination light provides users with proper visibility when working in low-light conditions.

CL3116 can control up to 16 computers. When 16 additional KVM switches are cascaded, a single CL3116 LCD KVM drawer/switch can control up to 256 computers.

To achieve greater operational efficiency, CL3116 offers Broadcast mode, which the console spreads out the commands to all computers to perform operations simultaneously. Besides, the Auto-Scan mode fulfills the needs for continuous monitoring a specific group of computers, and establishing a reliable working environment for users.

To enhance information safety, CL3116 provides two-level password security which restricts unauthorized users from viewing and controlling the computers. For added convenience, CL3116 comes with an additional hot-pluggable USB mouse port that only supports HID device for keyboard and mouse.

As a feature-rich LCD KVM drawer/switch, CL3116 is aimed not just to achieve but exceed the requirements for space utility optimization, superior video quality, adaptive deployment, and operational versatility, and thus is ideal for control rooms with limited space in any industry.

Space Utility Optimization
• Exclusive LED illumination light – designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
• Integrated LCD KVM console with an 18.5'' LED-backlit widescreen LCD monitor in a single rail housing with top and bottom clearance for smooth operation in a 1U high system rack
• Short-depth design allows you to work with your rack-mounting equipment in narrow spaces
• Console lock – enables the console drawer to remain securely locked away in position when not in use

Reliability and Operational Versatility
• Superior video quality - up to 1366x768 @ 60Hz; DDC2B
• Cascade up to 2 levels – CL3116 controls up to 256 computers from a single console (with compatible CS1316 KVM switches)
• Dual interface – supports computers with PS/2 or USB keyboards and mice
• Auto PS/2 and USB interface detection
• Keyboard and mouse emulation (PS/2 and USB) for smooth switching and simultaneously booting multiple computers even when the console focus is elsewhere
• Computer selection via pushbuttons, hotkeys, and multilingual on-screen display (OSD)
• Broadcast mode – allows you to send commands from the console to all computers to perform operations simultaneously
• Two level password security – only authorized users can view and control computers
• Auto-Scan mode – enables continuous monitoring of user-selected computers
• Keyboard Language supports: English (UK), English (US), German (GER.), German (SWISS.), French, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish and Traditional Chinese
• Additional hot-pluggable USB mouse port on front panel that supports HID device for keyboard and mouse

Installation Flexibility
• Standard rack mount kit included
• Optional Easy Installation Rack Mounting Kit available*
• No software required
• Firmware upgradable
• Supports hot-plugging

Rack-Mount Kits
Slideaway™ LCD KVM switches/consoles allow you to choose from a host of optional rack mount kits to meet your needs, including the single person easy installation rack-mount kit, which streamlines the rack mounting process.

Normal rack mounting procedures call for at least two people to rack mount a KVM switch/console. The single person easy installation rack-mount kit enables one person to rack mount a Slideaway™ LCD KVM switch/console. In just a matter of minutes, your new Slideaway™ LCD KVM switch/console can go from the box to the rack. The easy installation rack-mount kit is sold separately.

For convenience and flexibility, there are one standard and two optional rack mounting kits available:

Package Contents
1x CL3116 LCD KVM drawer/switch with standard rack-mounting kit
2x Custom KVM cables (VGA, USB; 6 feet)
1x Firmware upgrade cable
1x Power cord
1x User instructions
