CL3800NW

Model No. CL3800NW In stock

CL3800NW
Buy this item and earn 2,138 ClubPoints.

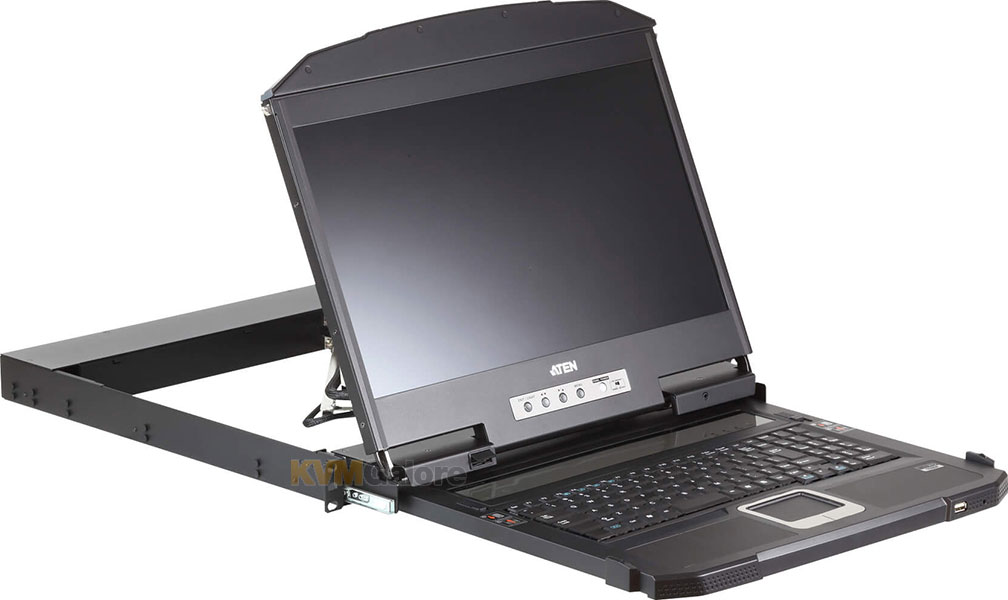

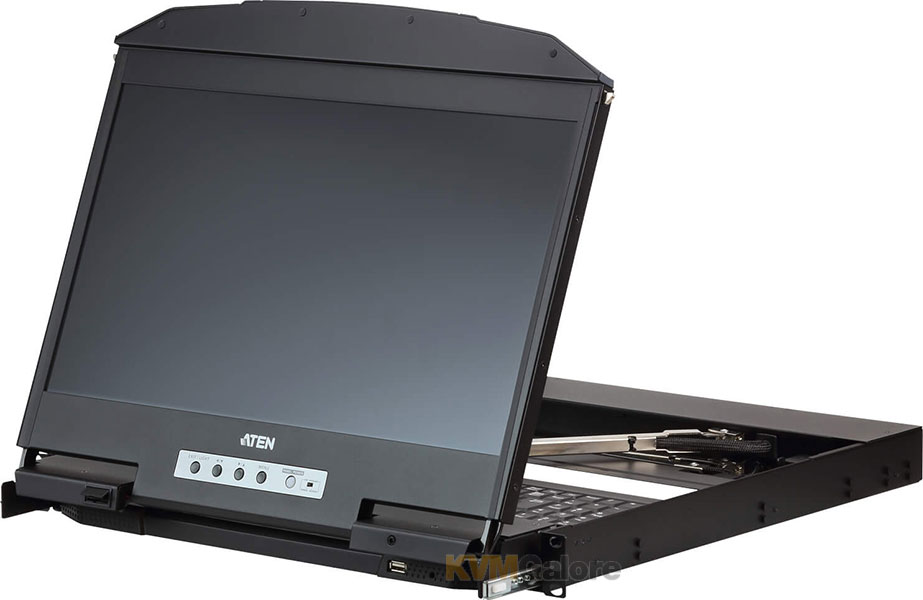

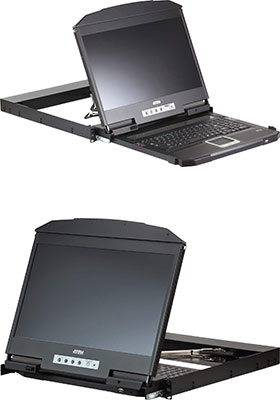

1U ultra-short-depth dual-rail 19" wide-screen LCD KVM console drawer

USB / HDMI / DVI / VGA


• Exclusive LED illumination light - designed to illuminate the keyboard and touchpad to allow visibility in low-light conditions
• Integrated KVM console drawer with short depth single rail design allows you to work in narrow spaces
• 18.5" LED-backlit LCD screen with Full HD resolution of 1920x1080 @ 60Hz
• Supports an external console with USB and HDMI or DVI or VGA connectors

ATEN ultra-short-depth LCD console drawers

CL3800 USB HDMI DVI VGA LCD KVM console drawer is a short depth dual rail LCD KVM console featuring an 18.5" LED-backlit widescreen LCD monitor with an integrated keyboard and touchpad. The short-depth design fits all 19" equipment cabinets, and is especially suitable for shallow racks. In addition to saving valuable space on the rack, CL3800 also provides a space-saving solution for special environments, such as outside broadcast vans (OB vans) and compact control rooms.

CL3800 supports three types of video input - HDMI, DVI, and VGA - and provides the ultimate in installation flexibility by allowing users to connect the computer (or KVM switch) via any of the three types of video source. CL3800NW's full HD widescreen LCD monitor ensures excellent video quality and provides ample viewing area.

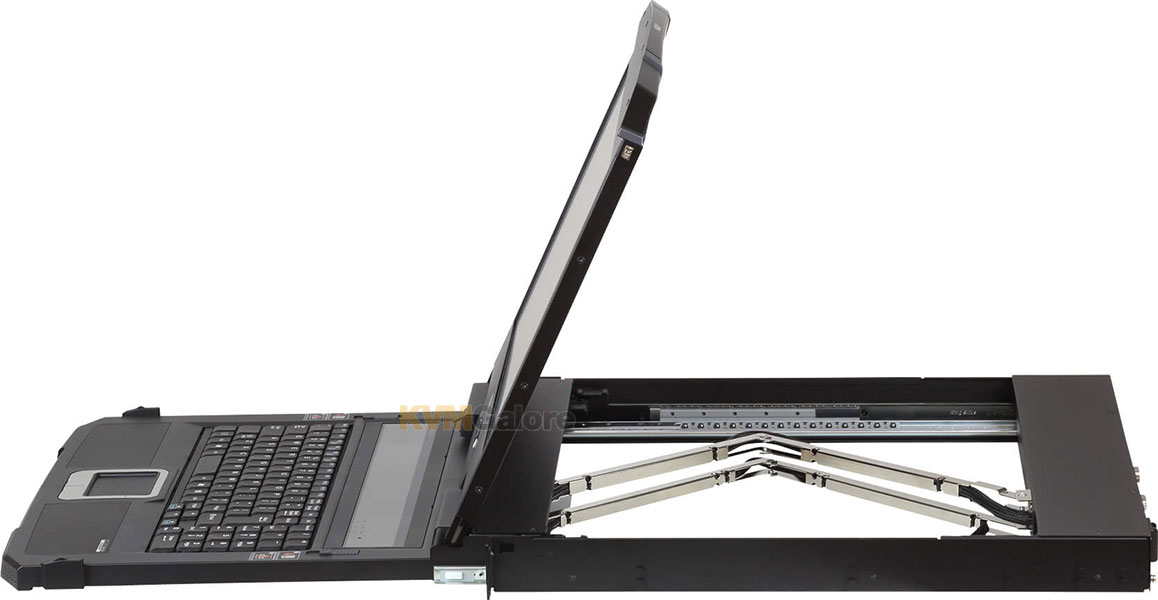

Furthermore, the dual rail design enables the LCD monitor, keyboard and touchpad to operate independently of each other. To maximize space utilization, the keyboard and touchpad modules can slide back to "hideaway" when not in use, while the thin profile LCD monitor rotates back, flush against the rack, to allow the convenient monitoring of computer activity.

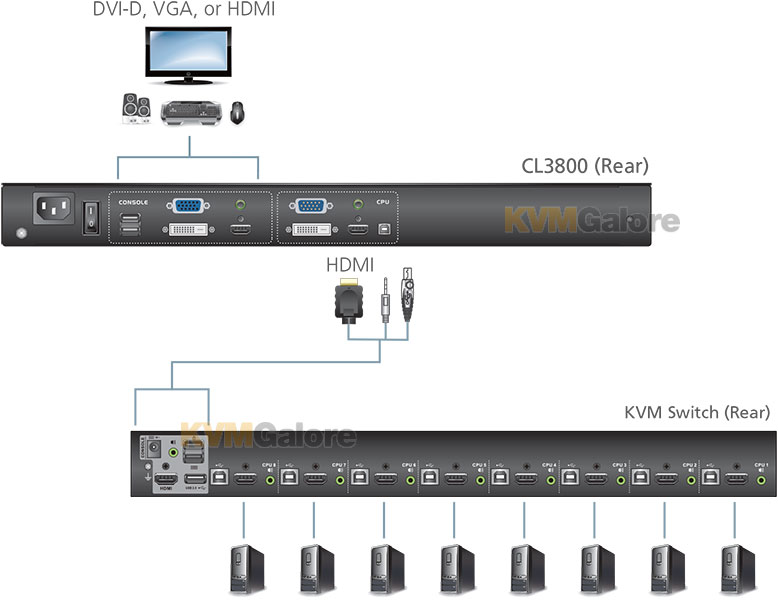

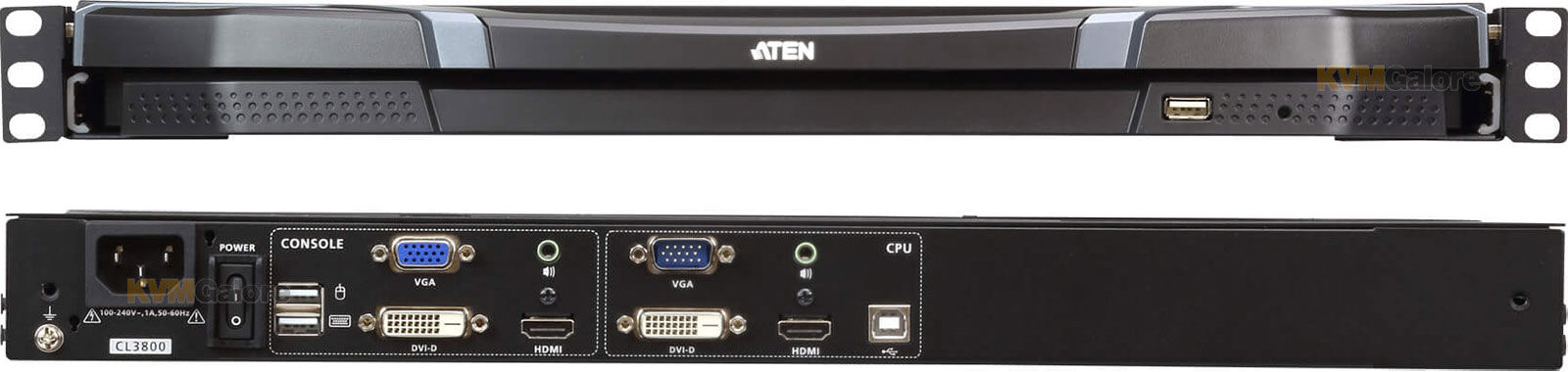

For added convenience, users can choose to manage the computer from an external console. CL3800 features a port for an external USB mouse on the unit's front panel, while ports for the second KVM console (USB keyboard/mouse and HDMI, DVI, or VGA monitor) are provided on the rear panel. CL3800 also includes two mini stereo ports for connecting audio speakers.

With a rich feature set, CL3800 is designed to exceed the requirements for space utility optimization, superior video quality, adaptive deployment, and operational versatility, and is ideal for applications such as mobile live streaming in the broadcasting sector or control rooms with limited space in any industry.

CL3800Space Utility Optimization
• Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
• Integrated LCD KVM console drawer with an 18.5'' LED-backlit widescreen LCD monitor in a single rail housing with top and bottom clearance for smooth operation in a 1U high system rack
• Short-depth design allows you to work with your rack-mounting equipment in narrow spaces

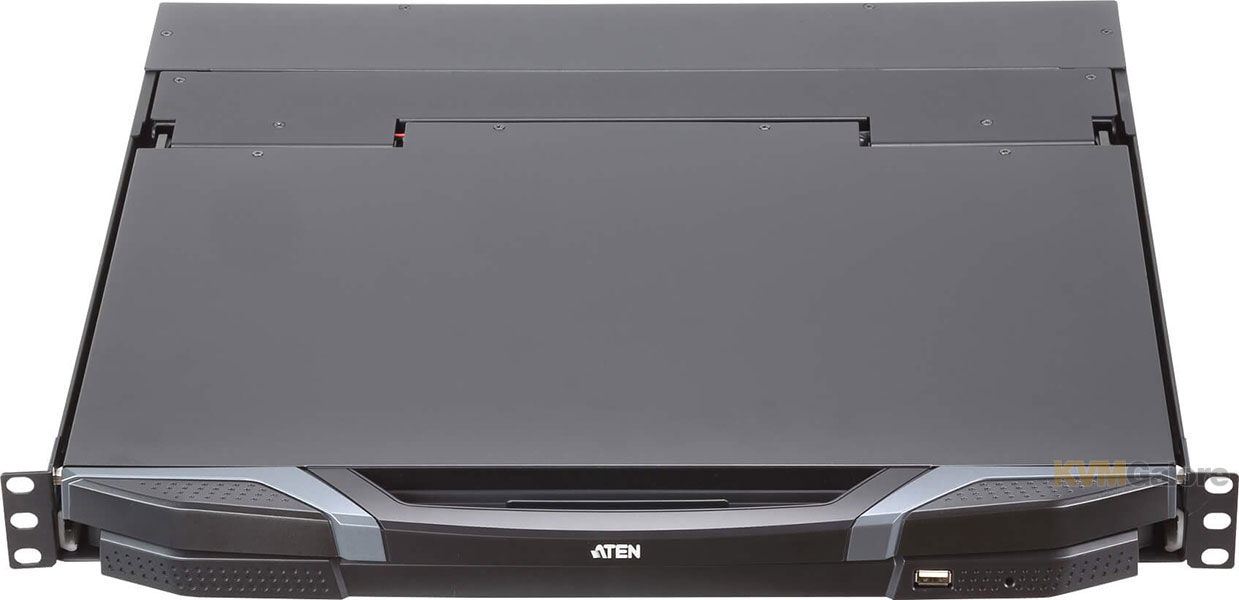

• Console drawer lock - enables the console drawer to remain securely locked away in position when not in use

Remarkable Audio/Video Experience
• Support three types of video inputs - HDMI, DVI, and VGA*
• 18.5" LCD screen supports Full HD resolution of 1920x1080 @ 60Hz
• External console supports input video resolutions up to 1920x1200 @ 60Hz
• Audio support for connecting speakers

Reliability and Operational Versatility
• Supports an external console with USB / HDMI / DVI / VGA connectors*
• Additional hot-pluggable USB mouse port on front panel (also functions as a USB peripheral port)
• Console selection via hotkey
• Standard 105-key keyboard
• Keyboard language support: English (US), English (UK), French, German, German (Swiss), Greek, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish, Traditional Chinese and Turkish
• The design complies to the UL 60950-1 and CAN/CSA standards

Installation Flexibility
• Standard rack mount kit included
• Optional Easy Installation Rack Mounting Kit available**
• No software required
• Firmware upgradable
• Supports hot-plugging

Single Person Easy Installation Kit
Slideaway™ LCD KVM switches/console drawers allow you to choose from a host of optional rack mount kits to meet your needs, including the Single Person Easy Installation Rack Mount Kit, which streamlines the rack mounting process.

Normal rack mounting procedures call for at least two people to rack mount a console drawer. The Single Person Easy Installation Rack Mount Kit enables one person to rack mount a Slideaway™ LCD console drawer. In just a matter of minutes, your new Slideaway™ LCD console drawer can go from the box to the rack.

For convenience and fl exibility, there is one standard, and two optional rack mounting kits available:
• Standard Rack Mount Kit: Supporting a mounting depth of 16.5 - 28 in. (42 - 72 cm)
• 2X-041G Short Easy Installation Rack Mount Kit (sold separately): Supporting a mounting depth of 16.5 - 27.5 in. (42 - 70 cm)
• 2X-042G Long Easy Installation Rack Mount Kit (sold separately): Supporting a mounting depth of 27 - 41 in. (68 - 105 cm)

Package Contents
1x CL3700 LCD KVM console drawer with standard rack-mount kit
1x USB/HDMI KVM cable (HDMI, USB, audio; 1.8 m / 6 feet)
1x Firmware upgrade cable
1x Power cord
1x User instructions

* Only one video signal (HDMI, DVI-D, or VGA) can be displayed at time
** The Easy Installation Rack Mounting Kit is sold separately
