Basic, 30A, zero-U (vertical) PDU with surge protection

120V; 16x NEMA 5-20R receptacles; 10-foot cord with NEMA L5-30P plug

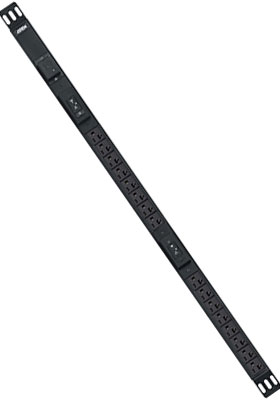

ATEN's PE0316SA, an 16-outlet, zero-U (vertical) power distribution unit (PDU), provides 16x NEMA 5-20R outputs. It distributes power to 16 receptacles from a single plug with unfiltered electrical pass-through.

PE0316SA also provides surge protection, prevents damage to your equipment from power surges and spikes. The integrated surge protector includes a LED indicator, letting you know the status of your equipment. Thanks to the built-in surge protection module, IT devices connected to the PDU are well-protected from sudden surges in electricity.

PE0316SA also features proactive overload protection (POP) – which automatically powers off the last outlet that causes a current overload, while allowing users to set shutdown priority, significantly reducing equipment downtime.

Aluminum housing helps prolong the units life with rugged casing made of impact-resistant material for maximum durability. The compact aluminum housing gives a sleek, yet robust look while minimizing installation space for work space efficiency.

Basic zero-U (vertical) PDU is designed for individuals who are in need of industrial-grade, easy-to-deploy power distribution unit in data centers, server rooms, and network wiring closets. It can also be easily mounted to wall, wooden furniture, or work bench.

Plug		Receptacles
NEMA L5-30P		16x NEMA 5-20R

Features and Benefits
• Vertical, zero-U form factor, 16 outlets
• Volts: 120V
• Amps: 30A (UL de-rated 24A max)
• kW-input: 3.6kW
• Cord length: 10 feet
• Surge protection
• Over-current protection
• Aluminum material
• Works with data centers, server rooms and telecom equipment

Package Contents
1x Basic PDU
1x Power cord
