Basic, 20A, 1U rack-mount PDU with surge protection

120V; 18x NEMA 5-20R receptacles; 10-foot cord with NEMA L5-20P plug

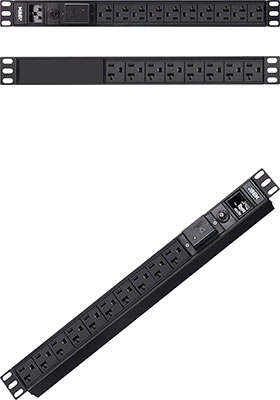

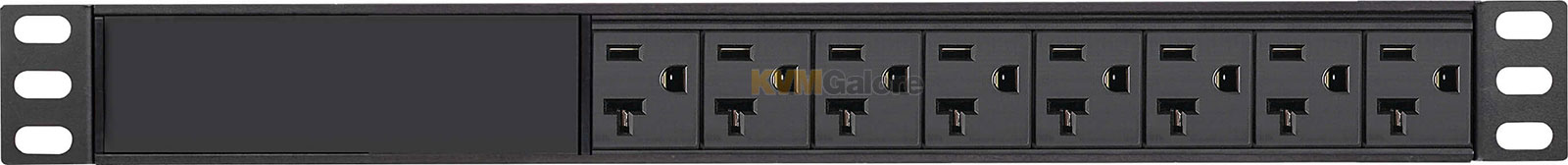

ATEN's PE0218SA, an 18-outlet, 1U rack-mount power distribution unit (PDU), provides 18x NEMA 5-20R output (10x facing the front; 8x facing tha back). It distributes power to 18 receptacles from a single plug with unfiltered electrical pass-through.

PE0218SA also provides surge protection, prevents damage to your equipment from power surges and spikes. The integrated surge protector includes a LED indicator, letting you know the status of your equipment. Thanks to the built-in surge protection module, IT devices connected to the PDU are well-protected from sudden surges in electricity.

PE0218SA also features proactive overload protection (POP) – which automatically powers off the last outlet that causes a current overload, while allowing users to set shutdown priority, significantly reducing equipment downtime.

Aluminum housing helps prolong the units life with rugged casing made of impact-resistant material for maximum durability. The compact aluminum housing gives a sleek, yet robust look while minimizing installation space for work space efficiency.

Basic 1U rack-mount PDU is designed for individuals who are in need of industrial-grade, easy-to-deploy power distribution unit in data centers, server rooms, and network wiring closets. It can also be easily mounted to wall, wooden furniture, or work bench.

Plug		Receptacles
NEMA L5-20P		18x NEMA 5-20R (10x front-facing; 8x back-facing)

Features and Benefits
• Horizontal, 19" rack-mount form factor (1U), 18 outlets
• Volts: 120V
• Amps: 20A (UL de-rated 16A max)
• kW-input: 2.4kW
• Cord length: 10 feet
• Surge protection
• Over-current protection
• Aluminum material
• Works with data centers, server rooms and telecom equipment

Package Contents
1x Basic PDU
1x Power cord
