19-inch single-rail PS/2 KVM LCD console drawer

with built-in illuminated keyboard and touchpad in 1U slideaway housing

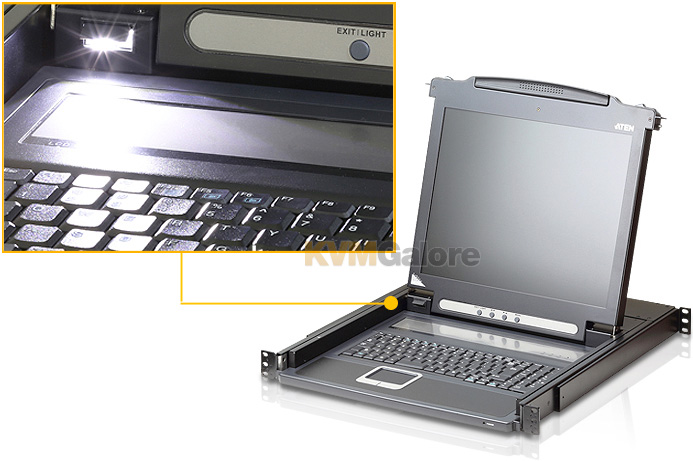

• Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
• Integrated KVM console with 19" LED-backlit LCD monitor – in a sliding housing with top and bottom clearance for smooth operation in a 1U high system rack
• Supports input video resolutions up to 1920x1200 @ 60 Hz

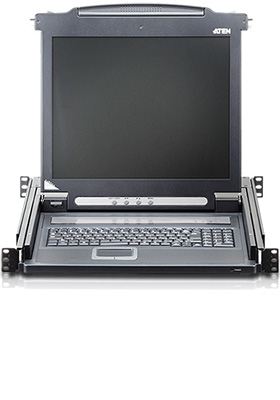

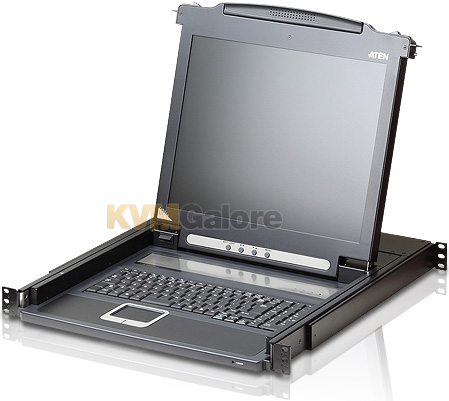

ATEN's economy LCD KVM console, CL1000N, offers a space-saving, streamlined approach to IT environments by integrating a keyboard, 19" LCD monitor, and touchpad in a 1U Slideaway™ housing. The LCD display is built into the cover; the keyboard and touchpad are built into the base.

Setup is fast and easy. There is no software to configure, no installation routines, and no incompatibility problems. Slide the console module section out; flip the cover up; and you are ready to go to work. When finished, flip the cover down and slide the console module away back into the rack.

There is no better way to save time and money than with a CL1000N installation. By using CL1000N to manage your installation, you: (1) save all the space those standard components, keyboard, mouse, and monitor would take up; (2) eliminate the expense of having to purchase a separate keyboard, monitor, and mouse for each computer if attaching to a KVM switch; (3) take advantage of upgrading your current system, since CL1000N is compatible with all types of KVM switches; (4) save time for installation. Just connect the cable between CL1000N and a KVM or a computer, and the CL 1000M is ready to serve you.

Features and Benefits
• LCD module rotates up to 115 degrees for a more comfortable viewing angle
Slideaway™ housing is less than 1U – with top and bottom clearance for smooth operation in a 1U high system rack
• Compatible with most PS/2 KVM Switches
• Internal power supply
• Adjustable depth to fit within a rack
• Supports DDC, DDC2, DDC2B
• DDC emulation of the LCD monitor–Video settings of attached computers are automatically adjusted for optimal output to the LCD monitor
• Keyboard Language support: English (US), English (UK), French, German, German (Swiss), Greek (CL1000N only), Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish, and Traditional Chinese
• Improved design – optional single person installation kit

Package Content
1x CL1000N Slideaway™ Console Module with Standard Rack Mounting Kit
1x Custom PS/2 KVM Cable (2L5202P, 6-foot)
1x Power Cord
1x User Manual
