VC840

Model No. VC840 Usually ships in 7-10 business days or less

VC840
Buy this item and earn 197 ClubPoints.

HDMI to 3G/HD/SD-SDI converter

VC840 HDMI to 3G/HD/SD SDI converter provides a professional way to exchange high definition signals in real time.

The SDI and HDMI signal conversion is 100% digital and guarantees no loss of quality for both the audio and video transmission.

VC840 provides 2 low jitter SDI outputs for dual display.

VC840 is the most dependable way to convert signals with confidence when monitoring in any post or broadcast application.

Features and Benefits
• Converts an HDMI input signal to 3G/HD/SD-SDI formats in real time while avoiding transformation loss for both audio and video signals
• Supports additional analog stereo audio and coaxial digital audio
• HDMI (Deep Color)
• LED indication of power and signal status
• Supports an SDI distance of up to 295 feet (3G-SDI); 492 feet (HDSDI); or 985 feet (SD-SDI of RG6)
• Supported SDI formats:

  • SD-SDI (SMPTE 259M, up to 270Mbps)
  • HD-SDI (SMPTE 292M, 296M, up to 1.485Gbps)
  • 3G-SDI (SMPTE 424M, 425M level A, up to 2.97Gbps)

• Video Support: 525i @ 59.96; 625i @ 50; 720p @ 50/59.94/60; 1080i @ 50/59.94/60; 1080p @ 23.97/24/25/29.97/30/50/59.94/60; 2048x1080
• Supports 8 audio channels @ 48kHz rate

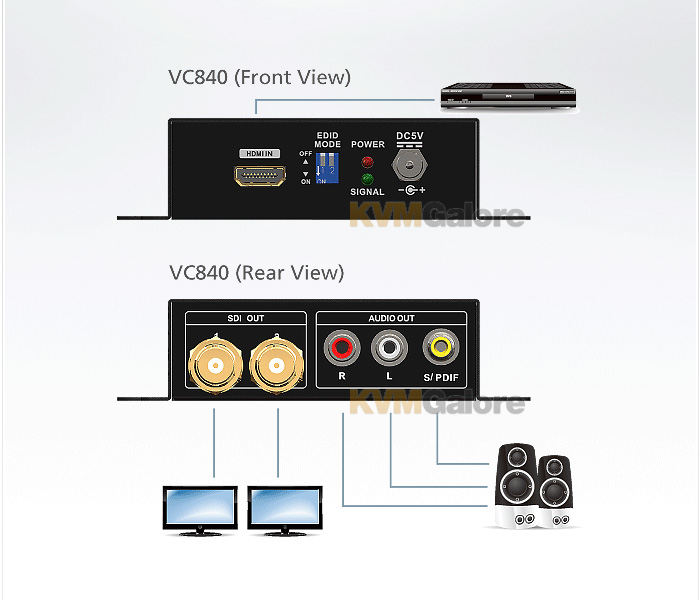

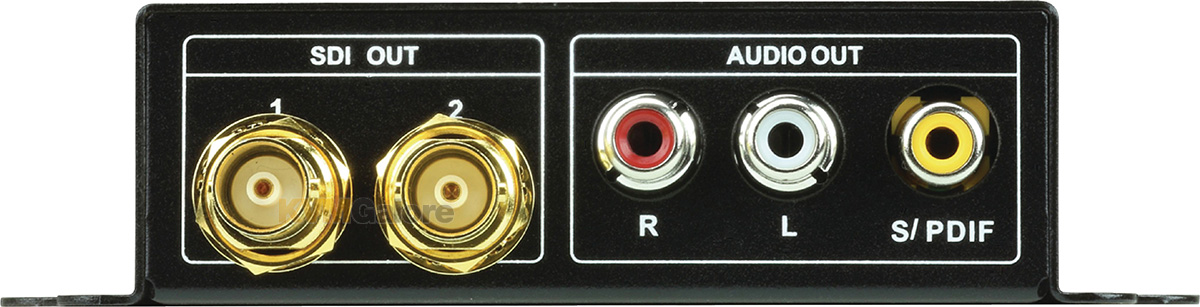

• Offers 2 low-jitter SDI outputs for dual display
• Features automatic detection of 3G/HD/SD-SDI signals
• Reclocking SDI signals for cascading and thus longer transmission
• Locking power connector for secure communications
• Selectable EDID settings and EDID learning mode

Package Contents
1x VC840 HDMI to 3G/HD/SD-SDI Converter
1x Power Adapter
1x User Instructions
