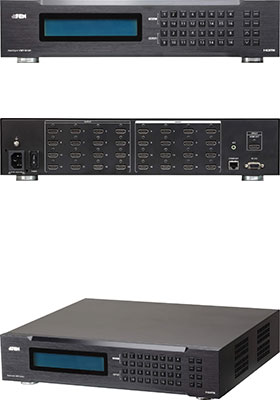

Image 1 of 5 view

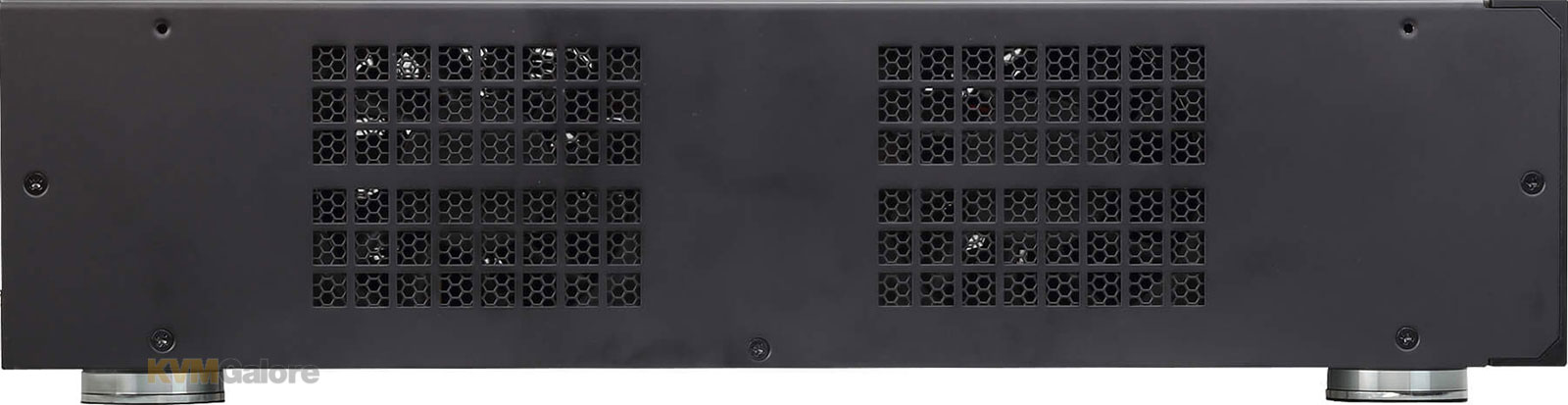

Image 2 of 5 - Side view. view

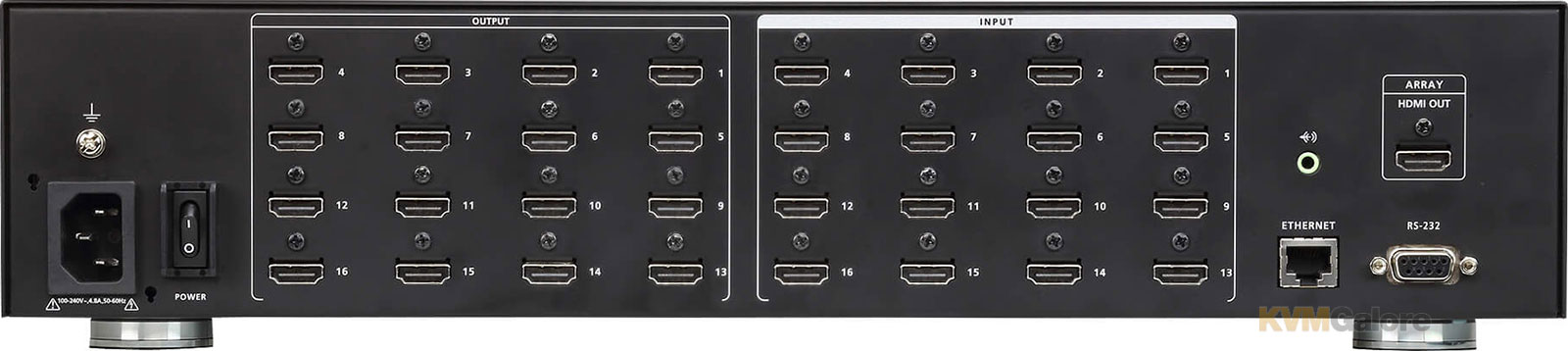

Image 3 of 5 - Back view. view
Image 4 of 5 view

Image 5 of 5 view

VM51616H

Model No. VM51616H Usually ships in 7-10 business days or less

VM51616H
Buy this item and earn 11,008 ClubPoints.

16x16 HDMI matrix switch and video wall

with scaling and fast seamless switching


• Connects any of 16 HDMI sources to any of to 16 HDMI displays
• Seamless Switch™ - features close-to-zero second switching for continuous video streams, real-time switching, and stable signal transmissions*
• Video Wall - allows you to create custom video wall layouts via intuitive web GUI*
• Local HDMI output -  allows multiple preview of 16 video sources

VM51616H is a 16x16 HDMI matrix switch that offers an easy and affordable way to route any of 16 HDMI video and audio sources to 16 HDMI displays, with a quick view of all port connections via the front panel LCD or local HDMI output for multiple source preview.

VM51616H features seamless switching that employs an FPGA matrix architecture to ensure continuous video streams, real-time control and stable signal transmissions. With a built-in high-performance scaler, VM51616H easily converts various input resolutions to optimum output display resolutions, giving viewers the best video and picture quality across all displays. The switch integrates video wall function with an intuitive web GUI that allows you create 32 connection profiles that can be customized into different video wall layouts.

VM51616H is an ideal solution for applications that require multiple HDMI displays with multiple HDMI sources to be conveniently delivered to multiple locations, such as railway stations, competition venues, casinos, control centers, conference rooms, logistics centers, security management, and more.

VM51616HSmooth and Seamless Viewing Experience
VM51616H's built-in FPGA design unifies video formats and provides continuous video streams, real-time switching and stable signal transmissions. It is capable of high-speed switching between all input/output ports - supporting TMDS high data transfer rates of up to 1080p / 1920x1200 @ 60Hz to minimize latency.

Video Wall
VM51616H is built-in with video wall functionality that allows you to customize display layouts using the intuitive web GUI which has won the Red Dot Interface Design award. Through the profile setup that comes with up to 32 connection profiles, multiple displays can be easily configured to show video as a single large screen in various layouts - to see "what you want, how you want it".

Scaler
VM51616H is equipped with a high-performance scaling engine that converts various input resolutions into the display's native resolution, giving viewers the best picture and video quality. Inputs with low resolutions are scaled perfectly to the best fit, so that video playback is smooth and pleasant. In addition, the premium scaling engine offers a range of aspect settings that automatically adjusts the picture ratio for maximum viewing comfort.

Multiple Source Preview
VM51616H is designed with a local HDMI output port that allows users to monitor the input sources in real time. Through the HDMI connection, users can directly preview up to 16 sources over one single display to quickly check on source status anytime from the local side. Moreover, the viewing mode of the local display can be easily set as array of 1x1, 2x2, or 4x4 via the web GUI accor ding to different application demand.

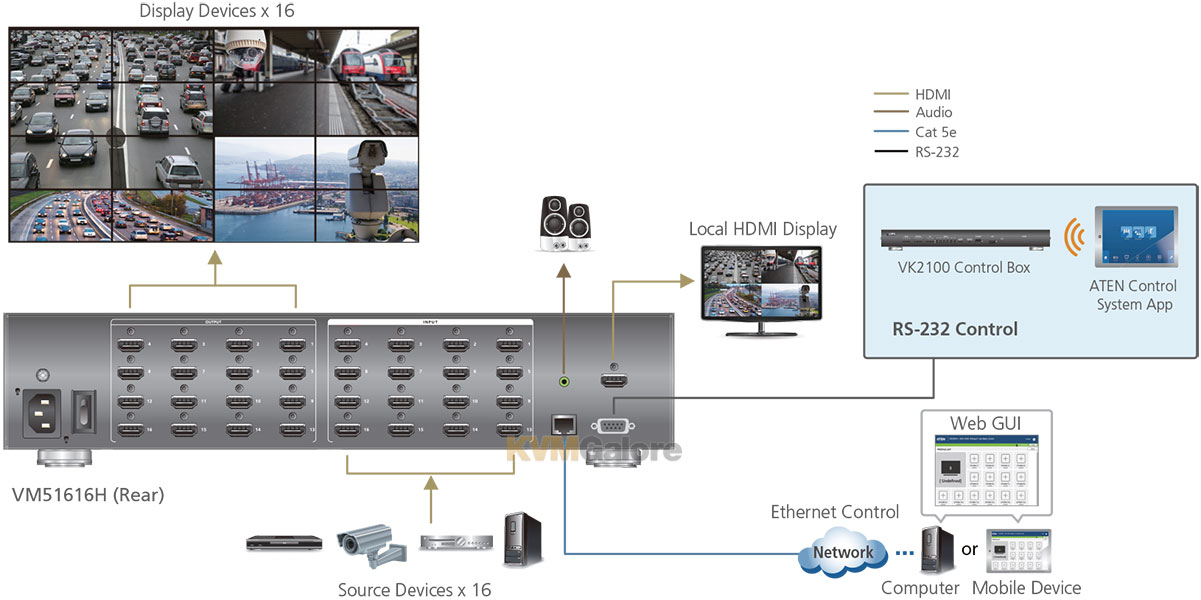

System Operation
• Browser Graphical User Interface (GUI)
• Serial controller
• Ethernet
• Telnet

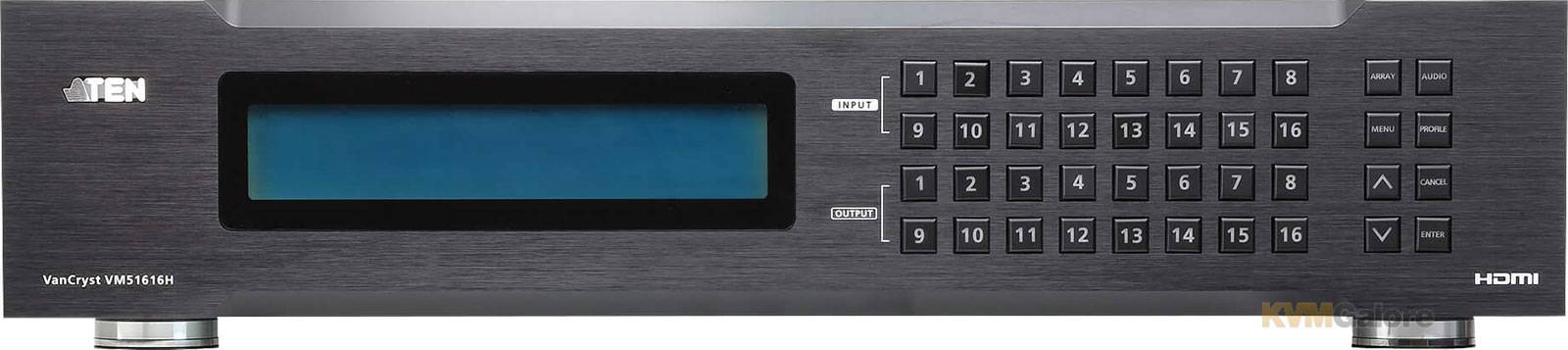

• Front panel LCD display and pushbuttons

Features and Benefits
• Multiple means for system configuration including front-panel pushbuttons, RS-232 control, and Ethernet connections for web-based GUI or Telnet
• Scaler - features a video scaling function to convert input resolutions to the optimum display resolutions
• EDID Expert™ - selects optimum EDID settings for smooth power-up, high-quality display, and use of the best resolution across different screens
• FrameSync - prevents image tearing by synchronizing the scaler output frame rate to the input signal frame rate
• Superior video quality - HDTV resolution of 480p, 720p, 1080i and 1080p (1920x1080)
• HDMI (3D, Deep color); HDCP 1.4 compatible
• Consumer Electronics Control (CEC) support
• Audio-enabled; HDMI audio can be extracted to stereo audio
• Supports Dolby True HD and DTS HD Master audio
• ESD protection for HDMI
• Rack-mountable (2U design)

Package Contents
1x VM51616H 16x16 HDMI Matrix Switch with Scaler
1x Power Cord
1x Rack Mounting Kit
1x User Instructions
Cables not included

Required Cables (per Port)
1x HDMI, male-male (input)
1x HDMI, male-male (output)

Notes:
* 1. When Seamless Switch™ is enabled, 3D, Deep Color, or interlace (i.e., 1080i) formats will not be supported. To use these formats, make sure to disable Seamless Switch™.
2. Videos may not display within range when Seamless Switch™ or Video Wall is enabled, in which case please adjust the display settings on your device.
