DisplayPort/HDMI optical KVM extender

extends transmission of True 4K video, KVM and control signals over a single fiber-optic cable up to 6.2 miles (10 km)

• DisplayPort/HDMI combo connector supports both DisplayPort and HDMI video interfaces
• Ultra-long distance transmission up to 6.2 miles (10 km)
• Supports True 4K video up to 4096x2160 @ 60Hz (4:4:4) with HDCP 2.2/2.3 compliance
• Dual console operation – supports local and remote system control with configurable privilege modes (Auto/Local and Auto/Remote) for streamlined access management and operational efficiency

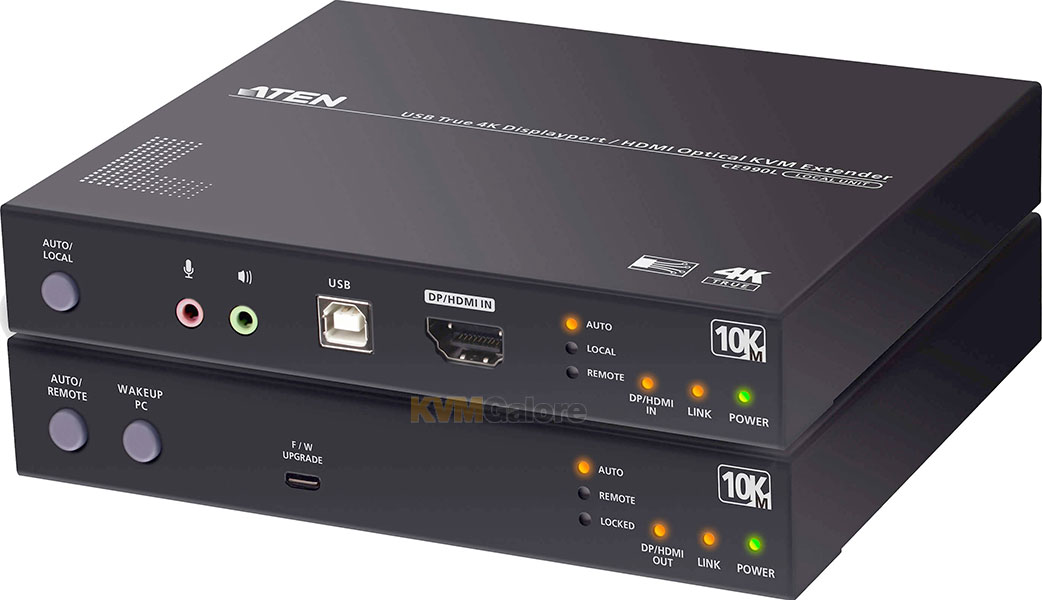

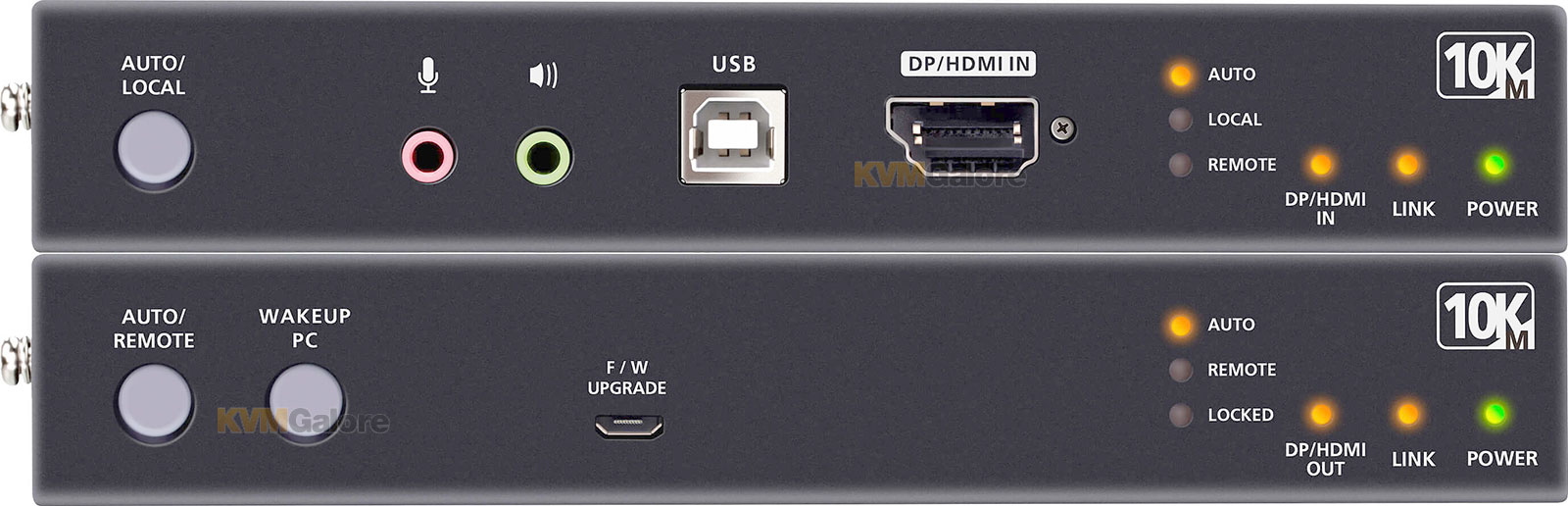

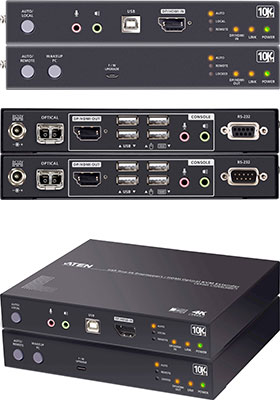

CE990 is a USB DisplayPort/HDMI optical KVM extender that extends KVM signals over fiber-optic transmission up to 6.2 miles (10 km), delivering True 4K, HDCP 2.3-compliant video quality.

It features DisplayPort and HDMI connectivity via a combo connector, simplifying installation with selectable video output at both local and remote consoles.

In addition to exceptional video clarity, it supports RS-232, USB 2.0 peripherals, and embedded DisplayPort/HDMI digital audio, including Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio, enabling versatile signal extension over a single fiber optic connection.

CE990 supports HDR10 to deliver unparalleled True 4K video quality (up to 4096x2160 @ 60Hz, 4:4:4) with full color accuracy.

Thanks to a built-in DisplayPort / HDMI combo connector, CE990 allows for either HDMI or DisplayPort connection on both local and remote consoles, with video input and output selectable for flexible installation and mixed / matched display configurations between both ends.

CE990 also extends keyboard / mouse control, RS-232, USB 2.0 data, and both stereo and embedded audio, including LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio, over fiber optic cabling.

The privilege control function enables easy access management between local and remote consoles through an Auto/Local or Auto/Remote push-button, allowing flexible control switching based on operational requirements.

CE990 is ideal for critical control environments such as transportation, manufacturing, utilities, and more. CE990 is perfect for applications that require high-quality, long-distance KVM operation extension, such as healthcare facilities, post-production, manufacturing, and more.

2-in-1 DisplayPort/HDMI Combo Connector
Featuring a combo connector, CE990 supports connection to either a DisplayPort or HDMI display for both local and remote KVM installations. This versatile design supports flexible display configurations at each end, allowing mixed or matched output types between the local and remote consoles.

Pristine True 4K Clarity with HDR10
Experience unparalleled True 4K clarity (up to 4096x2160 @ 60Hz, 4:4:4) and HDR10 support, delivering optimal image accuracy, enhanced contrast, and rich colors for razor-sharp video content.

Reliable Fiber Optic KVM Extension over Long Distances
Deploying CE990 enables long-distance KVM extension of up to 6.2 miles (10 kilometers) via a fiber optic connection, ensuring stable, interference-free transmission with inherent EMI resistance for reliable performance

Dual Console Access with Privileged Control
CE990 enables KVM access to a computer from both local and remote consoles, facilitating efficient operational collaboration. Using the Auto/Local or Auto/Remote push-button, you can toggle between Auto mode (access from both consoles) and Local/Remote mode (exclusive access from either local or remote console), determining which console has privileged control over the computer.

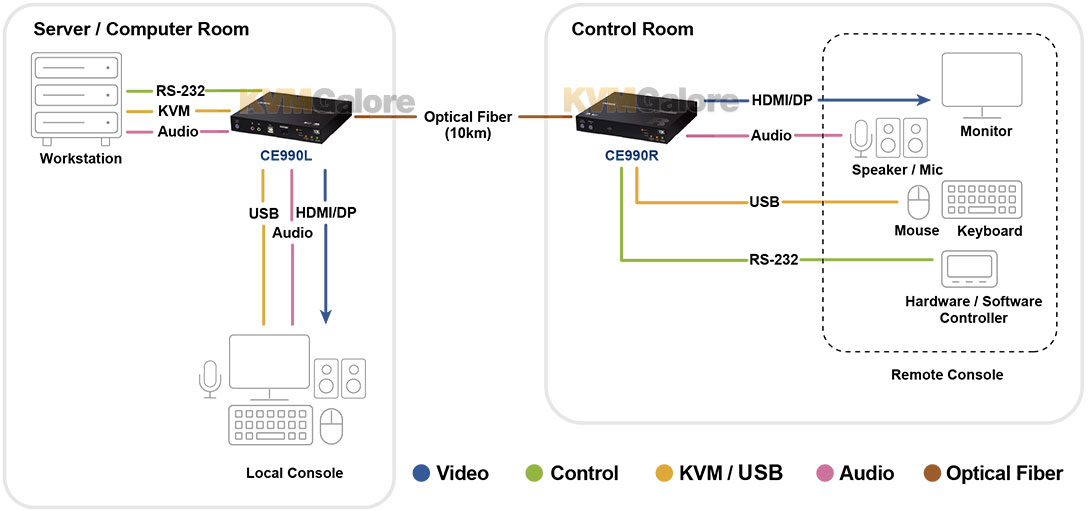

Applications
Designed for critical control environments such as transportation, manufacturing, and utilities, CE990 delivers stable long-distance KVM signal transmission and pristine video quality.

More Features and Benefits
• Extends DisplayPort/HDMI video, keyboard/mouse control, stereo/embedded audio, RS-232 control, and USB 2.0 signals over fiber optic cabling
• Supports HDR10 for enhanced video quality
• USB 2.0 Hub – supports 2 ports for USB Keyboard/mouse and 2 ports for other USB peripherals
• Easily switch EDID priority between Local and Remote via hotkey
• Supports wide screen format
• Supports dual independent stereo audio – mic and speaker
• Supports lossless digital audio formats such as LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio
• Works with SFP Module 2A-142G (single-mode) to offer 10Gbps transmission via a single fiber cable
• 2X-EA17 HDMI Lock Pro for combo connector to secure HDMI cables to selected devices and prevent signal loss caused by the connector detaching
• PC wakeup function via a single push-button through RS-232 channel
• Plug-and-play operation with no software or driver required
• DC Jack with screw-lock ensures stable and secure connection
• Built-in 8KV/15KV ESD protection
• Rack-mountable
• Firmware upgradeable

Package Contents
1x CE990 Local unit
1x CE990 Remote unit
1x DisplayPort cable (4.9 feet / 1.5 m)
1x HDMI cable (5.9 feet / 1.8 m)
1x Microphone cable (5.9 feet / 1.8 m)
1x Speaker cable (5.9 feet / 1.8 m)
1x USB Type-A to USB Type-B cable (5.9 feet / 1.8 m)
2x Single-Mode SFP modules (2A-142G)
2x Mounting kits
8x Foot pads
2x Power adapters and power cords
3x HDMI combo port cable locks
