DVI, USB and audio KVM extender over CAT-5e

up to 100 feet (30 m) with RS-232 serial functionality

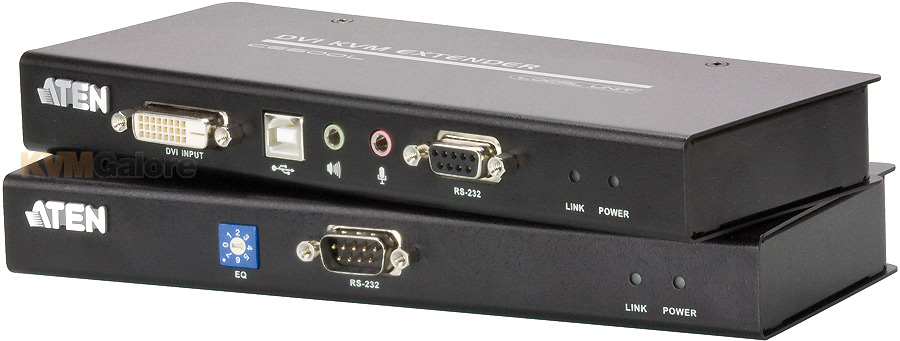

CE600 allows access to a computer system from a remote console (USB keyboard, monitor, and mouse). Because it allows access to a computer system from a remote console, the CE600 is perfect for use in any type of installation where you need to place the console where it is conveniently accessible, but you want the system equipment to reside in a safe location – away from the dust and dirt of the factory floor, or the harsh environmental infl uence of a construction site, for example. This allows users to deploy system equipment over large distances.

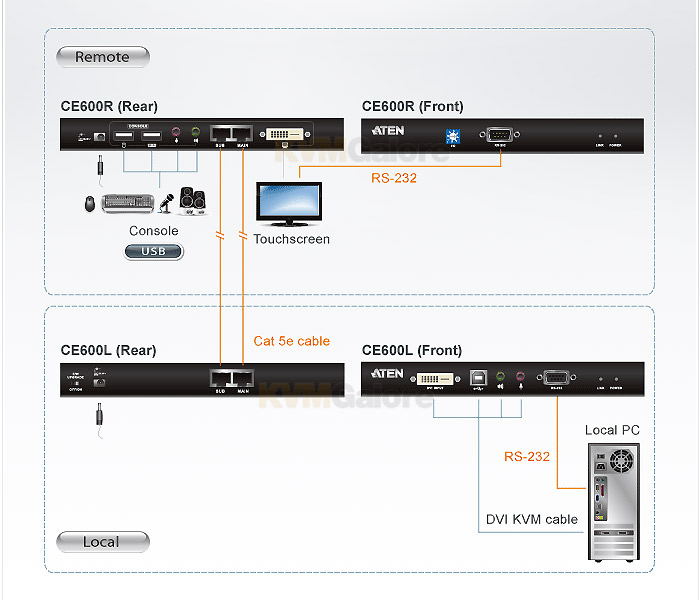

CE600 users one CAT-5e cable (DVI Single Link) to support up to 1920x1080 video resolution. The 2nd CAT-5e cable is used for HDCP, RS-232, and microphone signals.

Features and Benefits
• Local and Remote units connect at distances up to 100 feet (30 m) using CAT-5e cable
• Allows access to a computer or KVM installation from a remote console up to 100 feet (30 m)
• Features ATEN technology that allows A/V transmission over one CAT-5e cable
• The 2nd CAT-5e cable is used for HDCP, RS-232, and microphone signals
• Manual compensation control to adjust signal strength in order to compensate for distance
• RS-232 serial ports – connect to a serial terminal, or serial devices such as touchscreens and barcode scanners (Baud Rate 115200 bps)
• Audio Enabled – supports stereo speakers and microphone
• Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV)
• Supports Wide Screen formats
• Superior video quality of up to 1920x1200 @ 60 Hz at 100 feet (30 m); 1024x768 @ 60 Hz at 197 feet (60 m) – get an excellent, crisp image on your screen over long distance transmissions
• Hot pluggable
• Rack mountable
• Easy to install – no software required – connecting cables to the devices is all it takes
• Firmware upgrade

Package Contents
1x CE600L DVI KVM Local unit
1x CE600R DVI KVM Remote unit
1x 1.8 m USB DVI-D Single Link KVM Cable Set
2x Power Adapters
1x Rack Mount Kit
