CE611 - Model No. CE611 - KVMGalore® | Tech Solutions Made Easy™
ATEN
  • MSRP $652.00
  • Savings$163.00
  • Our Price $489.00
For additional views click on an image below

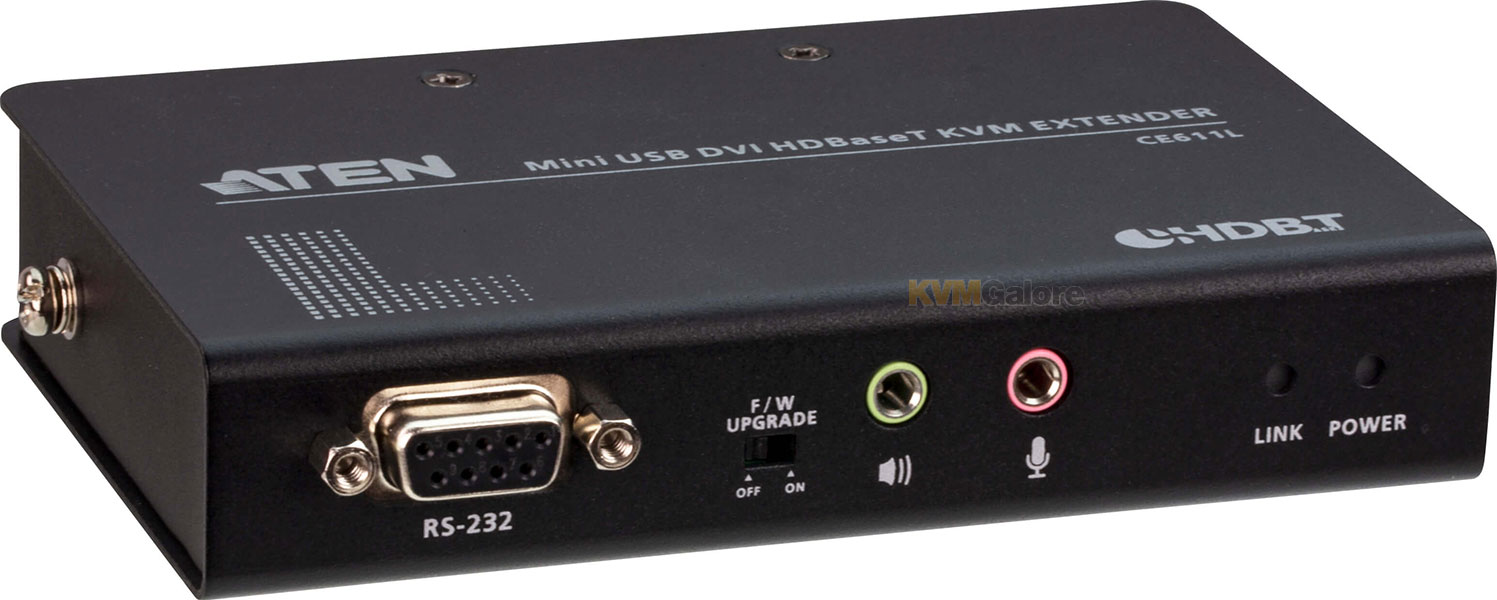

Image 1 of 5 - CE611 Local unit, front view. view

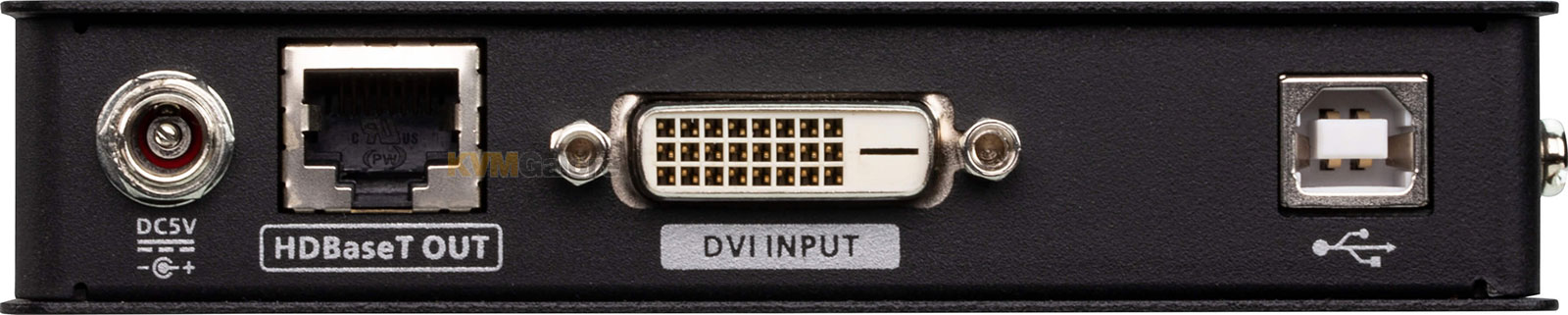

Image 2 of 5 - CE611 Local unit, back view. view

Image 3 of 5 - CE611 Remote unit, front view. view

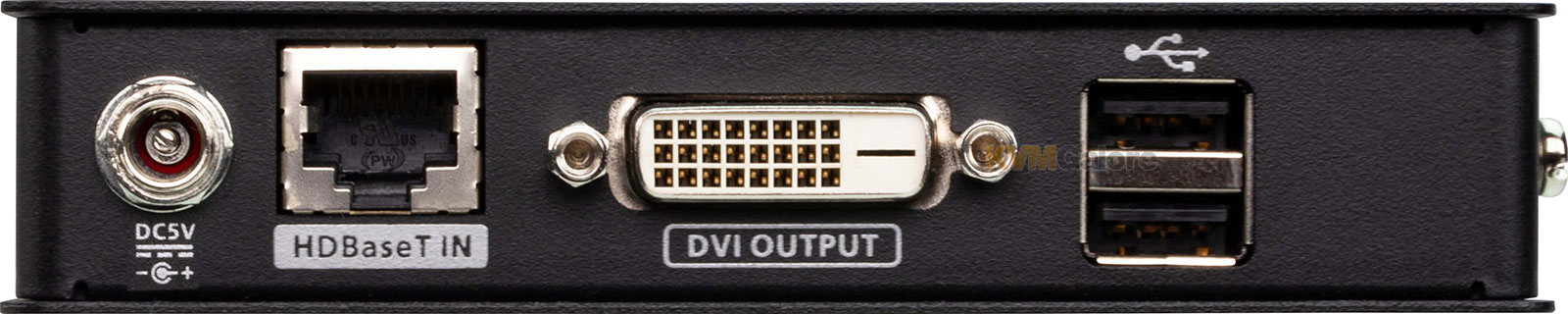

Image 4 of 5 - CE611 Remote unit, back view. view

Image 5 of 5 view

CE611

Model No. CE611 In stock

CE611
Buy this item and earn 489 ClubPoints.

Mini USB-DVI-audio-RS232 KVM extender over CAT-6

using HDBaseT™ technology; 1920x1200 up to 328 feet


• Extends video, audio, USB, and RS-232 signals via a single CAT-6/6a / ATEN 2L-2910 CAT-6 cable
• Long distance with superior video quality – up to 1920x1200 @ 328 feet (CAT-6/6a cable / ATEN 2L-2910 CAT-6 cable)
• USB 2.0 high speed ports – ensures fast transmission speeds for peripherals
• Supports individual 2-channel stereo audio for high-quality audio applications

ATEN CE611 is a USB DVI HDBaseT™ KVM extender that integrates the latest HDBaseT™ technologies to transmit 1920x1200 DVI video, stereo audio, USB, and RS-232 signals up to 328 feet using a single CAT-6/6a cable / ATEN 2L-2910 CAT-6 cable. This cost-effective extender comes with a small form factor design that includes DVI/audio interfaces, USB 2.0 full-speed ports, and serial console to fulfill most of extended KVM control and console demands.

CE611 mini USB DVI HDBaseT KVM extender can extend DVI, RS-232 serial, and USB 2.0 signals up to 328 feet using a single CAT-5e/6 or ATEN 2L-2910 cable and HDBaseT™ technology.

The KVM extender is equipped with USB 2.0 connectors which allow you to extend signal transmission of USB 2.0 devices. The USB functionality provides support for peripheral sharing, touch panel control and file transfers.

CE611 ensures superior video quality with 1920x1200 resolutions so that you get the most out of your DVI-enabled displays.

CE611CE611 supports the HDBaseT™ technology with which you can extend the KVM installation up to 328 feet @ 1920x1200 and preserve highquality video by enhancing bit error detection and correction to resist signal interference.

CE611 allows access to a computer system from a remote console (USB keyboard, monitor, and mouse). It is perfect for use in any type of installation where you need to place the console where it is conveniently accessible, but you want the system equipment to reside in a safe location – away from the dust and dirt of the factory floor, or the harsh environmental influence of a construction site, for example. This allows users to deploy system equipment over large distances.

CE611 is useful for control and security purposes, where you can have the system in a secure area with the console in the most convenient location for user access. This is ideal for managing highly confidential data systems. CE611 is also ideal for transportation centers, medical facilities, and shopping malls, industrial kiosks and for syncing files and folders between computers.

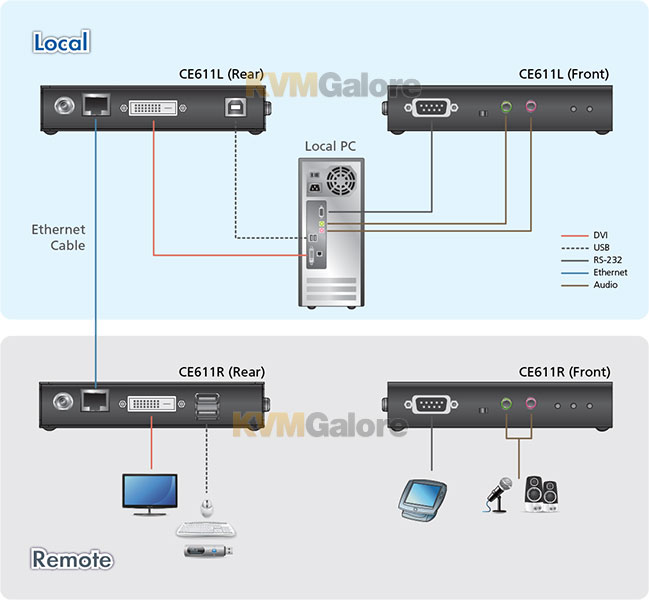

Setup is as easy as can be – simply connect the computer; run the CAT-5e/6 or ATEN 2L-2910 cable up to 328 feet to the remote unit of CE611 and then plug the remote console into the remote unit of CE611.

With an easy cable installation that supports various signals, CE611 is ideal for applications where convenient remote access is required, such as transportation control centers, medical facilities, industrial warehouses, and extended workstations.

Features and Benefits
• Supports HDBaseT™ technology
• Enhanced bit error detection and correction to resist signal interference during high-quality video transmissions
• Status detection and LED indication for HDBaseT™ signal transmission
• Built-in 8KV / 15KV ESD protection (contact voltage 8KV; air voltage 15KV)

Package Contents
1x CE611L (Local Unit)
1x CE611R (Remote Unit)
2x Power Adapters
1x User Instructions
Input cables are not included - see listing below for compatible DVI-USB-audio KVM cables, or click here for more options
