CS1762A - Model No. CS1762A - KVMGalore® | Tech Solutions Made Easy™
  • MSRP $244.00
  • Savings$61.01
  • Our Price $182.99
For additional views click on an image below

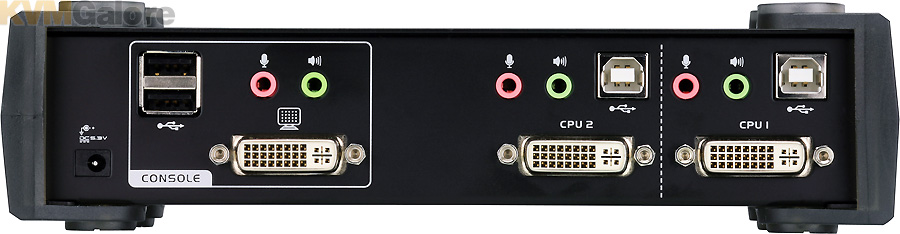

Image 1 of 2 view

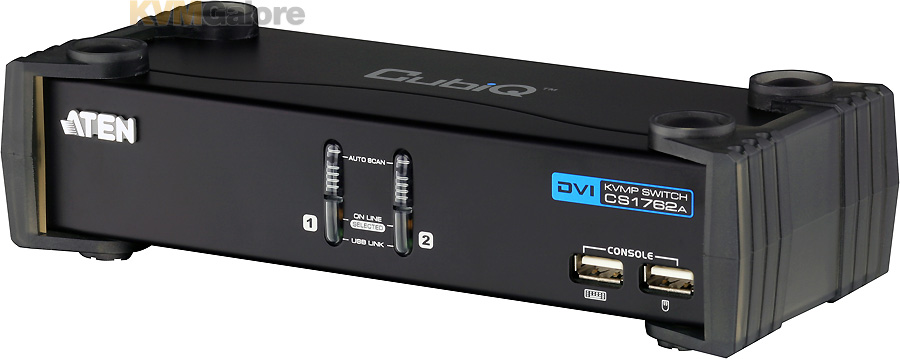

Image 2 of 2 view


Model No. CS1762A Usually ships in 7-10 business days or less

Buy this item and earn 183 ClubPoints.

2-port USB/DVI KVM switch

with audio and USB 2.0 peripheral sharing

CubiQ™ CS1762A USB 2.0 DVI KVMP Switch charts a revolutionary new direction in KVM (Keyboard, Video, Mouse) switch functionality by combining a 2 port KVM switch with a 2 port USB 2.0 hub at the same time as it provides an interface for a digital monitor (DVI).

In addition, the CS1762A comes with ATEN's Video DynaSync™ technology, which optimizes display resolution, and power on detection, which means if one computer is powered off, the CS1762A will automatically switch to the next powered-on computer.

As a KVM switch, the CS1762A allows users to access two computers from a single USB keyboard, USB mouse, and monitor console. As a USB 2.0 hub, it permits each computer to access any peripherals connected to the hub on a 'one computer at a time' basis.

Features and Benefits
• One USB console controls two DVI computers and two additional USB 2.0 devices
• Fully compliant, built in 2-port USB 2.0 hub
• Computer selection via front panel pushbuttons or hotkeys
• Audio enabled – full bass response 2.1 channel sound
• Multiplatform support – Windows Vista or Later, Mac, Linux, and SUN
• Superior video quality – 1920 x 1200, 60Hz; DDC2B
• Independent switching of KVM, USB, and Audio focus
• DVI digital and analog monitor support – fully compliant with the DVI specifications
• HDCP compliant
• Video DynaSync – stores the console monitor’s EDID (Extended Display Identification Data) to automatically optimize display resolution and refresh rate
• Power on detection – if one computer is powered off, the CS1762A will automatically switch to the next powered-on computer
• Console mouse port emulation/bypass supports multifunction/programmable mice
• Mac/SUN keyboard support and emulation
• Auto Scan Mode for monitoring all computers
• Firmware upgradeable via USB

Package Content
1x CS1762A
2x Custom DVI-D cables (6 feet)
1x Power adapter
1x User manual
1x Quick start guide


Listed below are additional products to consider which are compatible with CS1762A. These items may be required to complete your system.


1) 2L-7D02U

    Model No. 2L7D02U


MSRP: $54.00 - You save $13.51


2) 2L-7D03U

    Model No. 2L7D03U


MSRP: $86.00 - You save $21.51


3) 2L-7D05U

    Model No. 2L7D05U


MSRP: $112.00 - You save $28.01
