True 4K HDMI/USB CAT-6 KVM extender

enables 230 feet (70 m) distance transmission of multiple signals as well as dual console operation

• Extends HDMI video, USB keyboard/mouse control, embedded audio, and RS-232 control signals across 230 feet (70 m) over a CAT-6 cable
• Long reach mode – 1080p extension up to 328 feet (100 m)
• Supports resolutions up to 3840x2160 @ 60Hz (4:4:4) and HDR10; HDCP 2.2 / 2.3 compliant
• Dual console USB keyboard / mouse operation – control privilege between the remote and local units switchable via USB control mode push-button

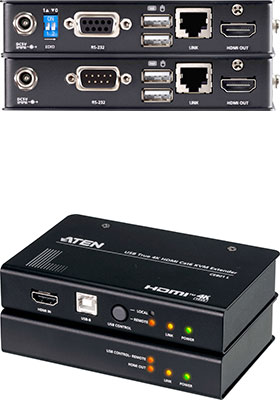

CE801 is an extender kit that allows for sharp, life-like True 4K (3840x2160 @ 60Hz 4:4:4) HDMI, RS-232, and USB transmission across 230 feet (70 m) over one single CAT-6 cable.

Dual console USB keyboard/mouse operation is enabled by the USB control mode push-button switching USB console control privilege between the remote and local units.

RS-232 extension capability facilitates uninterrupted communication between serial-interfaced devices and equipment, which are crucial in industrial control systems.

CE801L (Local unit) and CE801R (Remote unit) are designed to bridge the gap between local and remote consoles with smooth, efficient KVM operations. With the source computer connected to the Local unit, you can benefit from instantly responsive KVM control at the Remote unit console – featuring uncompromising True 4K video, crystal-clear digital audio, high-speed USB peripheral data, and uninterrupted serial control over distances up to 230 feet (70 m), all via a single CAT-6 connection.

When it comes to simplified KVM extension and ergonomic remote access with hardware securely located away from the workspace, CE801 speaks for itself. It is ideal for medium to large scale applications where incredibly sharp and detailed visualization, multisignal extension, and privileged USB control via local/remote console are essential, including control centers, retail shops, factories, medical facilities, and home theaters.

True 4K KVM Extension up to 230 feet (70 m)
CE801 extends KVM control up to 230 feet (70 m) over a CAT-6 connection – transmitting stunning True 4K video with HDR, along with USB data, digital audio, and serial control between local and remote consoles.

Full-HD Long-Reach KVM Extension up to 328 feet (100 m)
With the Long-Reach mode, CE801 enables KVM extension up to 328 feet (100 m) over a CAT-6 connection – delivering crisp 1080p video clarity with ease.

Dual Console Access with Privileged KVM Control
Pressing the push-button on the Local unit grants the local console priority KVM access to the source PC at any time (Local Mode). Pressing the button again releases this priority (Auto Mode), allowing KVM access from either the local or remote console – whichever gains control first.

Optimal Video with EDID Switching
To ensure optimum output quality on both the local and remote consoles, the EDID switches on CE801L can be adjusted to configure the EDID for both HDMI outputs.

RS-232 Serial Communication for Extended Control
CE801R is equipped with a serial port for connection to a serial device – such as a touchscreen or barcode scanner – which can be remotely communicated via RS-232 commands from a serial terminal (or PC) connected to CE801L, facilitating real-time device interaction and data transmission between the local and remote consoles.

Secure Installation for Reliable Power Supply
The power adapter is secured with a screw lock on the DC jack, ensuring a stable power supply while preventing accidental disconnections.

Rack-Mountable Design
The KVM extender is compact and rack mountable, making it flexible for a space-efficient installation.

More Features and Benefits
• Supports HDR 10 for enhanced video quality
• Supports wide screen format
• Supports digital audio formats such as 7.1ch Dolby and DTS audio
• Plug-and-play with no software or driver required
• Built-in 8KV/15KV ESD protection
• Rack-mountable
• DC Jack with screw-lock ensures stable and secure connection

Package Contents
1x CE801L (Local Unit)
1x CE801R (Remote Unit)
1x USB Type-A to USB Type-B cable
2x Mounting kits
8x Foot pads
2x Power adapters
