TMP00-NIST2: Temperature sensor

with calibration check

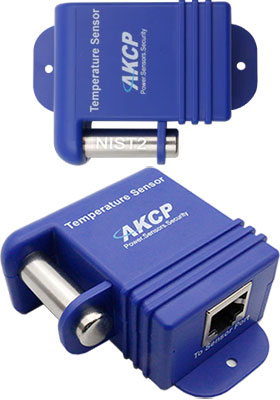

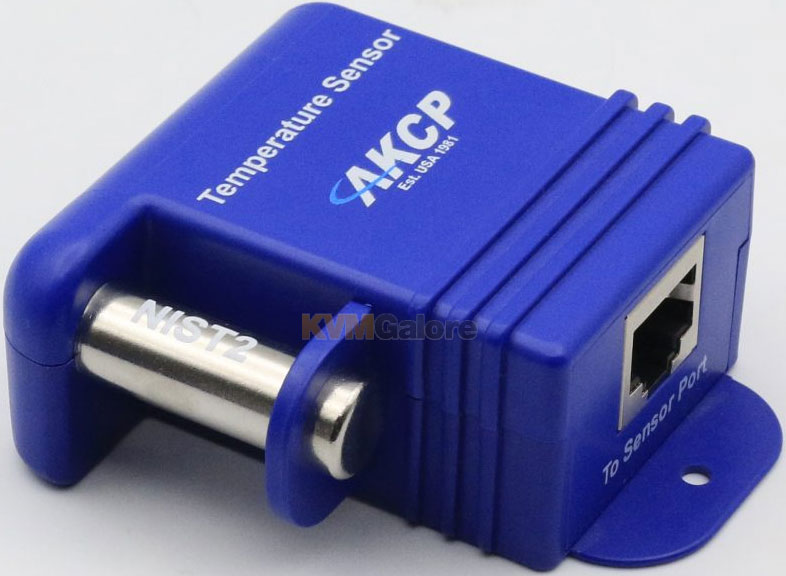

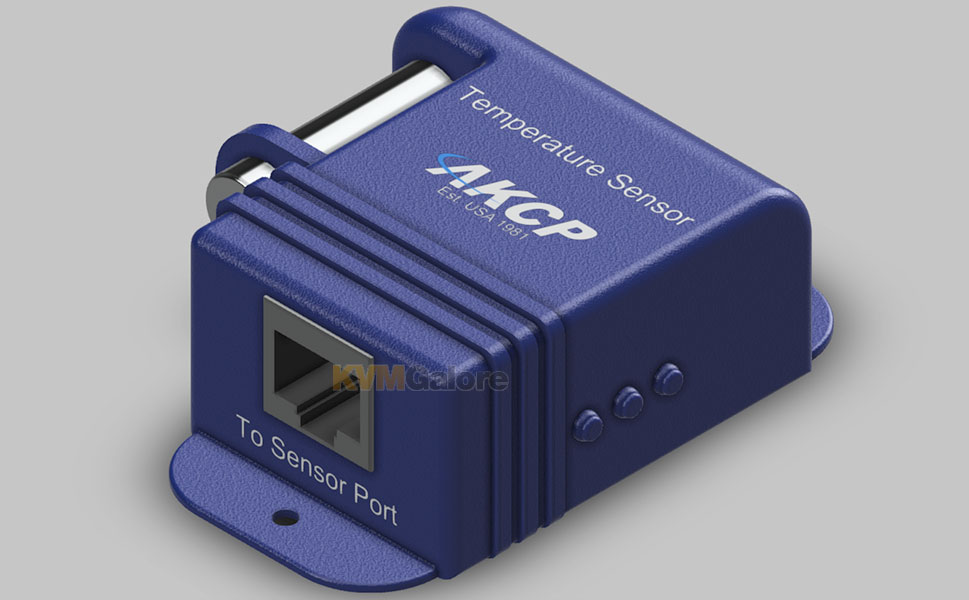

A temperature sensor housed in a stainless steel tubing that is water-resistant, reducing the risk of sensor failures caused by water damage.

AKCP temperature sensor is ideal for data-center monitoring or anywhere a temperature sensor is needed. AKCP temperature sensor is network-enabled SNMP temperature sensor with calibration check.

AKCP temperature sensor is compatible with all of AKCP sensorProbe+ and securityProbe series environmental monitoring appliances. Designed to record accurate temperature data it is ideal for giving advanced warnings of temperature fluctuations that can potentially damage sensitive equipment. This advance notification can protect your data and systems from catastrophic events.

AKCP temperature sensor is NIST2 certified, with calibrated temperature being compared once a second for accuracy. AKCP temperature NIST2 sensors feature a built in calibration check. Each unit has 2x NIST calibrated and certified temperature sensors. The primary sensor value is checked by the secondary sensor, and if AKCP detects a range of greater than the stated accuracy, AKCP will alert that the sensor is out of calibration. This makes these sensors ideal for situations where a high degree of accuracy is required and assurance of the calibration state.

Setup is simple with the sensorProbe+ and securityProbe auto-sense function. Once plugged into the intelligent sensor port the environmental monitoring appliance automatically detects the presence of the sensor and configures it for you. All you need to do is set your thresholds for low and high warning and critical parameters. The built-in graphing function of the environmental monitoring appliance gives you a pattern of temperature trends over time.

For those who require an industrial-strength temperature sensor for extremes of high or low temperatures, we recommend AKCP Thermocouple sensor or the Ultra Cold Temperature Sensor.

Features and Benefits
• A The stainless steel tubing helps to protect the temperature sensor from everyday use in busy server room environments
• Water-resistant sensor housing
• The stainless steel tube reduces the risk of sensor failures caused by water damage
• Semiconductor, microprocessor-controlled type temperature sensor
• Can be extended up to 165 feet* (50m) with standard CAT-5 cable
• Has its own SNMP OID for data collection over a network
• 0.5º C resolution
• Ships with clips for easy installation in server cabinets
• Powered by an AKCP environmental monitoring appliance
• AKCP can provide custom-length cables suitable for any installation

Package Includes
1x Temperature sensor with calibration check
1x 5-foot CAT-5 cable with 2x RJ-45 connectors

Note: AKCP does not recommend connecting the temperature sensor though patch panels, or using RJ-45 couplers to extend them.

* Maximum length compatible with SP1+ and SP2+ appliances is 40 feet. Maximum length compatible with sensor ports 1-4 on a SPX+ appliance is 40 feet.
