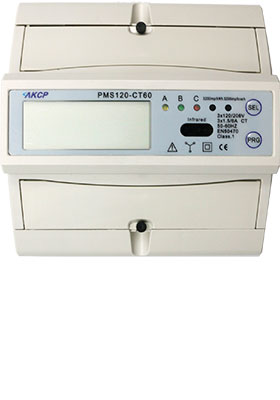

Power Monitoring Sensors

100A, 110~400V, 50~60Hz, 3-phase and 1-phase (four wire) meters, power monitoring sensors (PMS)

AKCP's power monitoring sensors (PMS) give vital information and allows you to remotely monitor power, eliminating the need for manual power audits as well as providing immediate alerts to potential problems.

AKCP power monitoring sensors (PMS) are specifically designed to be used with AKCP's sensorProbe+ and securityProbe base units, connecting to the Modbus port of those environmental monitoring appliances.

AKCP's power monitoring sensors (PMS) have been integrated into the sensorProbe+ and securityProbe's web interface with their own Power Management menu, allowing multiple three-phase and single phase power monitoring sensors to be set up on a single sensorProbe+ or securityProbe depending on which readings are required.

Power meter readings can also be used with the sensorProbe+, AKCPro Server and Quicklime live PUE calculations that analyze the efficiency of power usage in your data center. Data collected over time using the power monitoring sensors (PMS) can also be viewed using the built in graphing tool. Combining these durable power monitoring sensors (PMS) with the sensorProbe+ and securityProbe creates an IP-enabled power monitoring capable of monitoring / measuring:
• Phase Line Voltages
• Current
• Power Factor
• Active Energy
• Active Power

These four-wire power monitoring sensors (PMS) are encased in sturdy white plastic cases and mount on a 35mm DIN rail. They function with three-phase and one-phase circuits, and meet international standards for active and reactive energy – IEC 62053-21 and IEC 62053-23, respectively.
