Dominion KX IV-101

Ultra-performance single-port 4K HDMI KVM-over-IP

control of a single computer/server by up to 8 users, with virtual-media support and remote power control

• Single-port, unblocked, BIOS-level, KVM-over-IP access for up to 8 users
• 4K Ultra-HD performance
• Native HDMI video format; also supports VGA, DVI, DisplayPort, Mini-DisplayPort and USB-C
• Embedded HDMI digital audio
• User configurable bandwidth for LAN, WAN and Internet ssage
• 3x faster virtual media
• Productive, Java-free HTML5 user interface
• Apple iPhone/iPad configuration via USB
• LDAP, AD, and RADIUS authentication
• PC-share access by up to 8 users
• Configurable user-group permissions
• 256-bit AES encryption
• Remotely power on/off a computer system using the KX IV-101 web-based interface
• Local access

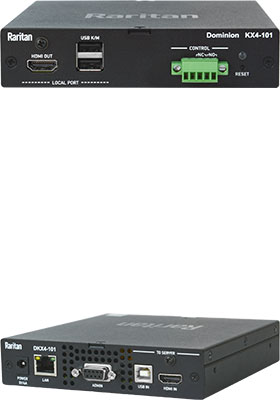

Dominion KX IV-101, Raritan's fourth generation KVM-over-IP gateway, provides Ultra-HD performance for KVM-over-IP remote management. More powerful than any other KVM-over-IP gateway, it supports unblocked, Java-free anytime/anywhere, BIOS-level remote access of servers, PC's and workstations.

The KX IV connects to a single computer, providing un-blocked access to multiple users via laptop, PC or Dominion User Station.

Dominion KX IV-101 supports access to servers with 4K video resolution (3840x2160), up to 30 frames per second with 4:2:2 color. It also supports HD resolutions up to 1920x1080 and 1920x1200 at up to 60 frames per second with high quality 4:4:4 color.

The KX IV has an all-digital architecture for ultra fast video performance and high video quality, with virtual media transfers up to 3 times faster than Dominion KX III. The KX IV has user-configurable bandwidth to operate across LAN, WAN and Internet.

The KX IV supports many of the popular Dominion features such as: virtual media, absolute mouse synchronization, LDAP/Radius/AD authentication, AES encryption, support for up to 8 simultaneous sessions, and much more. Users can use Dominion KVM clients for Java-free access, as well as Dominion KX User Stations for high performance access in labs, studios and control rooms.

Dominion KX IV is incredibly scalable. A large number of KX IV gateways can be integrated through Dominion User Station and/or Raritan's CommandCenter Secure Gateway, with convenient single sign-on. The powerful Dominion User Station works standalone or with CommandCenter.

Supporting up to 4K video resolution, the KX IV-101 has an all-digital architecture for ultra-HD video performance, high video quality, and virtual media transfers up to 3 times faster than Dominion KX III. It has a productive, web-based, HTML5 user interface, available on PC, laptops, and smartphones.

KX IV-101 is perfect for the most demanding broadcast and control room applications, as well as remote IT administration, lab management, and more. As a single-port device, it is perfect for colo's, remote offices, facilities and edge applications.

With the Virtual Power Button feature, users can remotely power on/off computers, without the use of a switched PDU.

Dominion KX IV-101 also features a pass-through digital local port providing fast, at-the-rack access via HDMI and USB for high performance, local server access.
