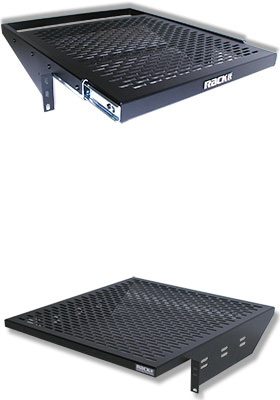

EIA Shelves

Single-sided, stationary or sliding 2-post shelves

with a mounting-surface that fills the space between the two rack's uprights for better weight distribution

EIA shelves are designed to work with 2-post relay racks, integrating with the relay-rack's design.

EIA shelves' design takes advantage of the relay-rack's uprights to form a mounting surface that gets fully integrated by utilizing the space between the rack's uprights for mounting equipment on the shelf.

A 4¼" portion of the shelf's surface gets conveniently situated between the two rack's uprights, creating a cohesive installation that helps with weight distribution and occupies a smaller footprint.

For added strength and rigidity, EIA shelves feature two ¾" flanges running the width of the shelf, both in the front and in the back, providing for an unconstrained mounting surface.

Available with a vented surface and 2U mounting flaps, stationary EIA shelves are available in 14- and 18-inch deep versions, constructed of 16-gauge steel with a weight capacity of 80 lbs.

A pull-out (sliding) EIA shelf is also available, featuring a 17½ inches deep vented surface that pulls-out 14 inches. Constructed of 16-gauge steel and featuring 3U mounting flaps, EIA Sliding Shelf is rated at 60 lbs.

Rackit's EIA shelves are perfect for light-weight non-rack mountable peripherals such as modems, wireless routers, KVM switches and LCD-screens.

All Rackit's EIA shelves are meticulously constructed with rounded corners, eliminating sharp edges which could potentially damage equipment, cabling, or installers' hands while handling.

Rackit's EIA shelves are compatible with any-type 2-post IT rack-mounting, with either pre-tapped or cage-nut style mounting rails.

Made in the USA and offered with a lifetime warranty, Rackit's EIA shelves feature a textured black powder coat finish that lends durability to the shelf, while helping to keep it free of scratches.

19-14V EIA shelf: Stationary shelf, 14 in. deep

19-17V EIA shelf: Pull-out (sliding) shelf, 17½ in. deep

19-18V EIA shelf: Stationary shelf, 18 in. deep
