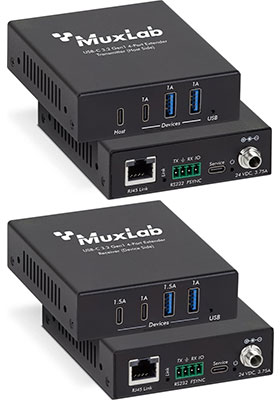

500534: USB-C 3.2 Gen1 4-port extender kit

328 feet (100 m)

The USB-C 3.2 Gen1 4-port extender kit (model: 500534) enables USB 3.2 Gen1 connectivity at data rates up to 5Gbps and extends true USB up to 328 feet (100 m) over standard CAT-6a UTP cable.

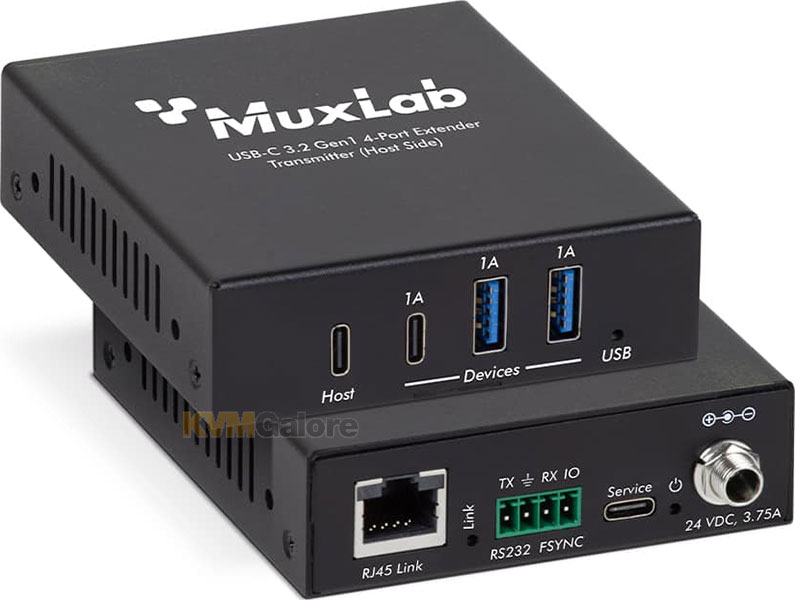

The Transmitter connects to the host via a USB 3.2 Gen1 Type-C connector, and features three local USB ports (1x USB Type-C and 2x USB Type-A). The Transmitter also features 1x FSYSNC GPIO input and 1x RS-232 pass-through.

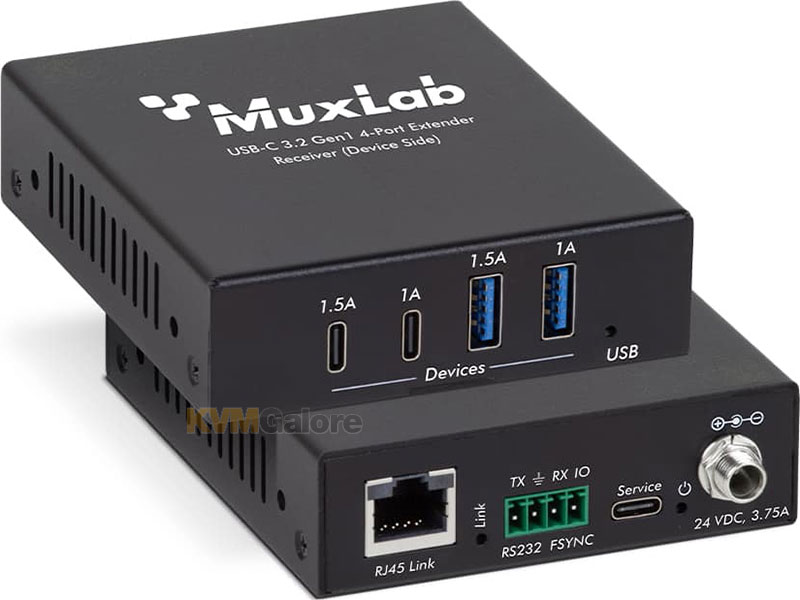

The Receiver features four USB 3.2 Gen1 ports (2x USB Type-C and 2x USB Type-A), 1x FSYSNC GPIO output and 1x RS-232 pass-through.

The extender also supports 24V bi-directional PoC.

The USB-C 3.2 Gen1 4-port extender kit is true plug and play, requires no additional software drivers, and is compatible with all major operating systems.

The unit supports a wide variety of USB extension applications including security, industrial control, digital signage, scientific data acquisition and other implementations of USB standards.

Features and Benefits
• Extension of USB 3.2 Gen1 up to 328 feet (100 m) over CAT-6a cable
• USB 3.2 Gen1 connectivity with data transfer rate up to 5Gbps
• Backwards compatible with USB 2.0 and USB 1.1
• Hardware acceleration for isochronous and bulk transfer
• USB Type-C and USB Type-A ports supports 5VDC up to 1.5A and 1A on the Receiver
• Support RS-232 pass-through and FSYNC GPIO pass-through (for industry camera use)
• Support bi-directional 24VDC PoC
• Simple plug and play, no driver and setting installation required

Package Contents
1x USB-C 3.2 Gen1 Transmitter
1x USB-C 3.2 Gen1 Receiver
1x 24VDC/3.75A Locking Power Supply
2x 4pin-3.5mm Phoenix Connectors (Male)
4x Mounting Ears
8x Screws (KM3*4)
Cables are not included

Required Cable Connecting to Host
1x USB Type-A to USB Type-C or
1x USB Type-C to USB Type-C
