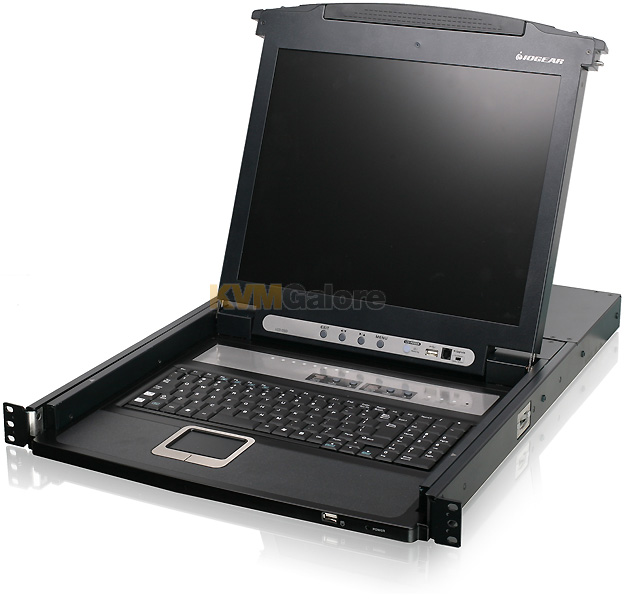

GCL1808KITU: 8-port, rack-mount, 17" LCD KVM console drawer

with KVM access to eight VGA, USB or PS/2 computers

• Integrated 8-port KVM console featuring a 17" TFT LCD active matrix monitor, keyboard and touchpad
• 1280x1024 resolutionon 17" rack mount LCD display
• Adjustable depth to fit different sizes of racks

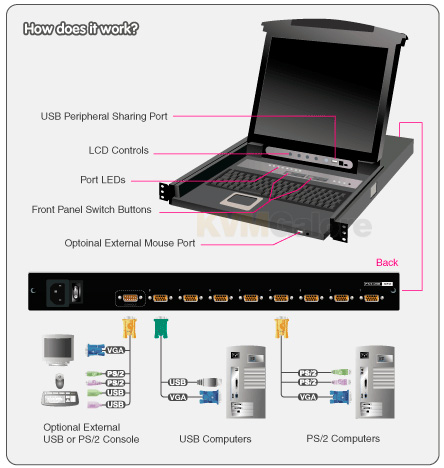

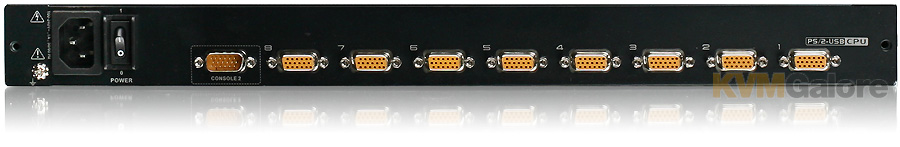

• External USB or PS/2 and VGA console port
• USB media port support for attached USB computers (system upgrades, etc) **

IOGEAR's 8-port 17" LCD combo KVM switch integrates a 17" LCD console with an 8-port KVM (keyboard, video, and mouse) switch, offering secure access to 8 VGA, USB or PS/2 computers.

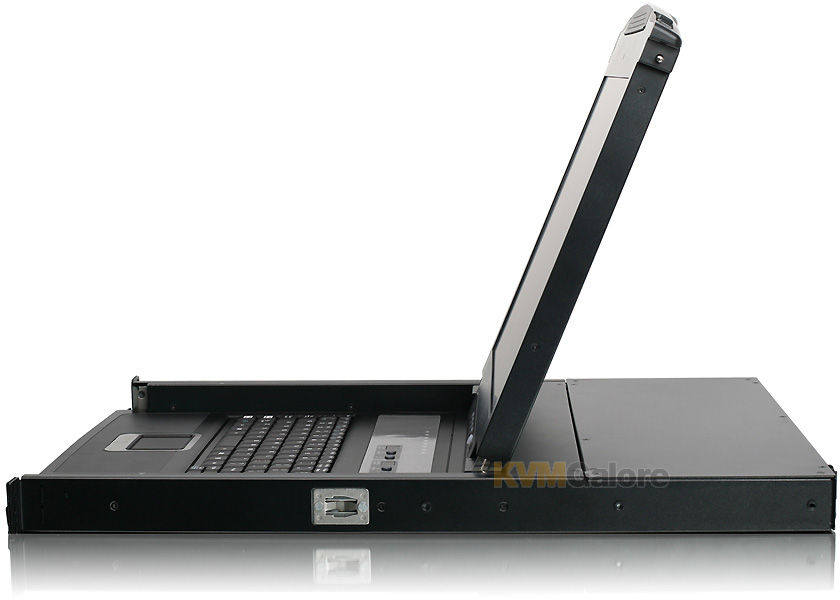

This 8-port LCD KVM console drawer features a convenient rack mountable sliding / retractable 17" TFT LCD active matrix monitor and keyboard with built-in touchpad for a space-saving and streamlined integration.

For added convenience it also supports an external USB mouse. All this in a universal 1U rack mount space.

Ease of Installation and Operation

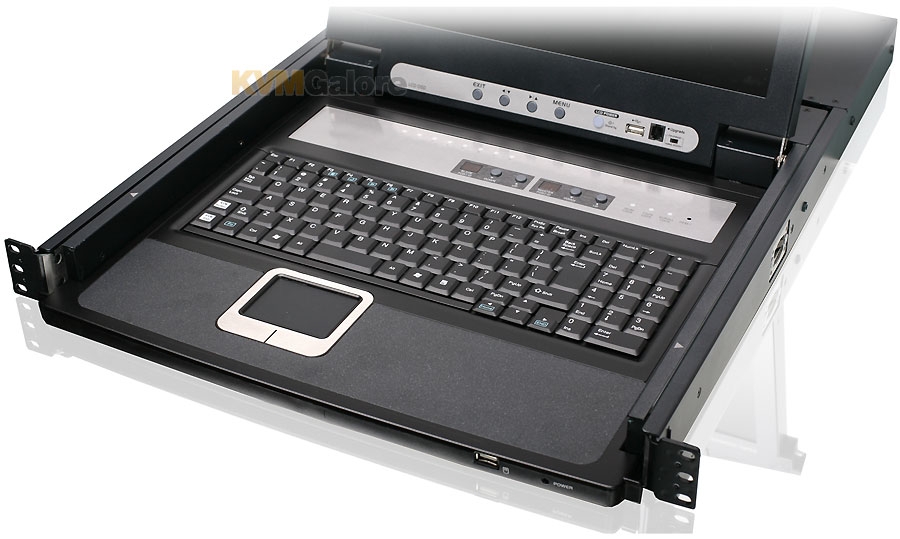

The LCD display is built into the cover. The keyboard and touchpad are built into the base. Setup is fast and easy with the included mounting brackets. There is no software to configure, no installation routines and no incompatibility problems. Simply slide the console module section out, flip the cover up, and you are ready to go to work. When finished, flip the cover down and slide the console module back into the rack.

Expand and Control More
This 8-port LCD KVM console drawer supports cascading additional compatible KVM switches. Conveniently switch and control up to 128 computers* from a single keyboard, monitor, and mouse console.

Features and Benefits
• Increases space, productivity, and provides as an energy cost savings solution
• It contributes to a greener environment by reducing the amount of waste generated by multiple components
• An easy/efficient way to organize and streamline a growing or expanding server operation
• Multi platform OS support - Windows^®, Mac, Sun Solaris™ , and Linux^®

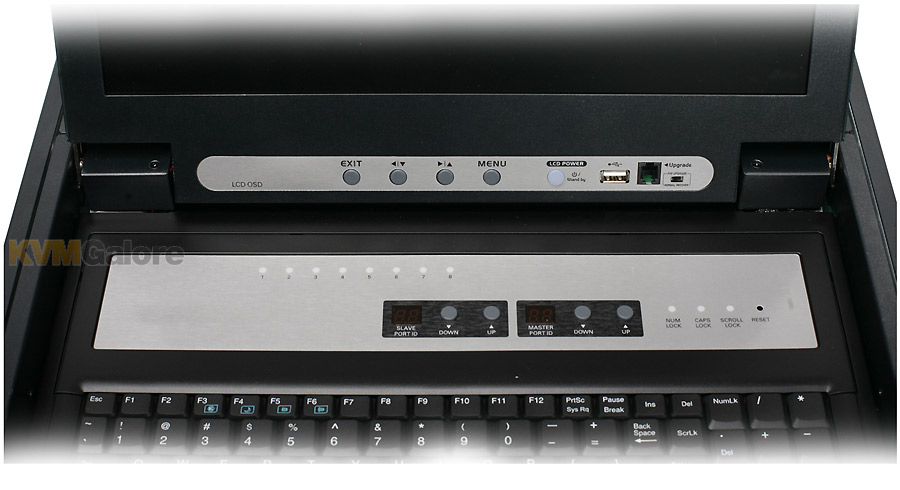

• Easy to operate - computer selection via front panel push-button LEDs, intuitive OSD (on screen display), and hotkeys
• External USB mouse port for convenience
• Cascade up to 2 levels - control up to 128 computers from a single console*
• Security - 2 level password protection for OSD
• DDC Emulation - Video settings of each computer are automatically adjusted for optimal output to the monitor
• Rack mountable in a 19" (1U) system rack
• Custom ASIC provides an auto-sensing function that recognizes the position of each station on the installation
• Fully supports DDC2B
• 3-Year warranty

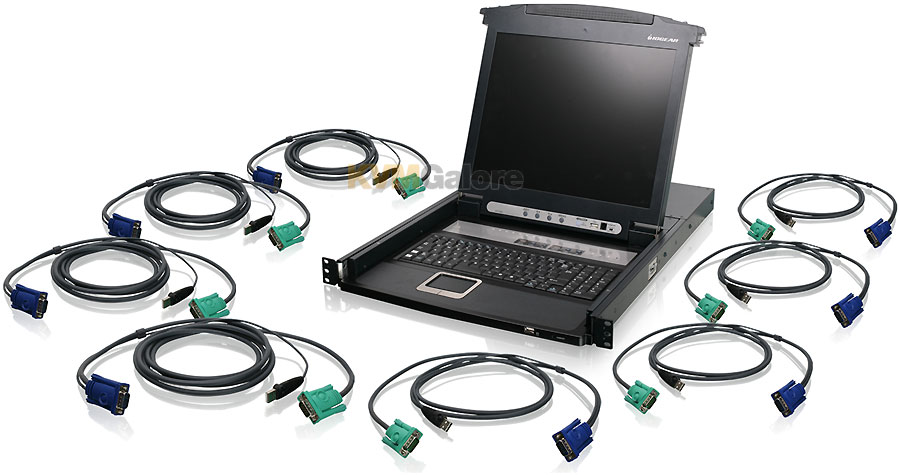

Package Content
1x 8-Port LCD KVM Console Drawer
4x USB KVM Cable (6 feet - G2L5202U)
4x USB KVM Cable (10 feet - G2L5203U)
1x PS/2 KVM Cable (6 feet - G2L5202P)
1x Console Cable
1x Cascade Cable
1x Firmware Upgrade Cable
1x Rack-Mount Kit (Short and Long L Brackets)
1x Grounding Wire
1x Power Cord

Need help with product selection?
Call KVMGalore at 1-800-636-3434, or submit your question on KVMGalore HelpCenter.

* Cascade with IGOEAR 8/16-Port VGA Combo KVM Switches (Model No. GCS1808 and GCS1716).
** Only systems connected with the USB KVM cables will be able to access the front USB port for system upgrades and shared peripherals.
