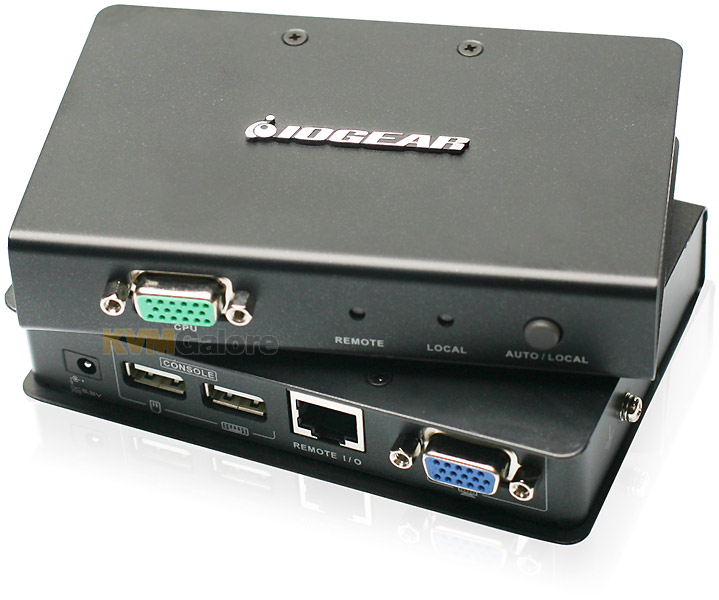

GCE500U: USB-VGA KVM console extender over CAT-x cable

500 feet

• Extend your KVM console (VGA monitor, USB keyboard and mouse) connection up to 500 feet via CAT-5e cable
• Auto Signal Compensation (ASC) helps make installation easy, with no need to configure DIP switches
• Built-in Application-Specific Integrated Circuit (ASIC) for greater reliability and compatibility
• Dual Console Operation - Control your system from either the local or remote console
• Built-in 8KV ESD protection and 2KV surge protection

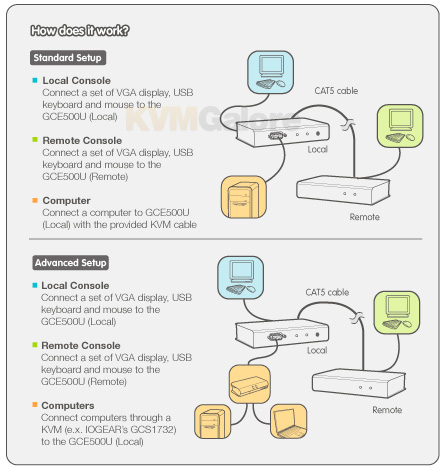

IOGEAR USB VGA KVM console extender allows access to a PC or a KVM switch from a remote USB-VGA console (VGA monitor, USB keyboard, and USB mouse) via CAT-5e/6 cable up to 500 feet away.

This unit is perfect for moving the console away from the computer or the KVM switch. Your console can be moved out of the server room to a location that may be more comfortable and quieter. It is also useful for security and monitoring purposes - you can place the unit in a secure area at the same time that you put the console in the most convenient location for user access and monitoring.

The USB VGA KVM console extender is a cost effective solution because it uses inexpensive UTP (CAT-5e/6) cabling to extend the distance, versus expensive and bulky coaxial cabling. It is easy to install and operate thanks to its Auto Signal Compensation (ASC) technology, which senses the distance and adjusts the signal levels accordingly so there is no need to do any DIP switch setting. It also provides a built-in Application-Specific Integrated Circuit (ASIC) for greater reliability and compatibility.

Dual Console Operation
GCE500U has 2 modes for local console use and remote consoles via a push-button switch on the front of the extender. This allows for operation at both ends of the extender for ease of use.

Convenience and Comfort
GCE500U is perfect for moving the console away from the computer or the KVM switch. Your console can be moved out of the server room to a location up to 500 feet away via CAT-5e/6 cable.

Cost Effective Solution
GCE500U is a cost-effective solution because it uses inexpensive UTP (CAT-5e/6) cabling to extend the distance, compared to other models that use expensive and bulky coaxial cabling.

Ease of use and reliability
GCE500U is easy to install and operate thanks to its Auto Signal Compensation (ASC) technology, which senses the distance and adjusts the signal levels accordingly so there is no need to do any DIP switch setting. It also provides a built-in Application-Specific Integrated Circuit (ASIC) for greater reliability and compatibility.

More Features and Benefits
• Maximum video resolution up to 1920x1200 @ 60Hz (100 feet - 30 m); 1600x1200 @ 60HZ (330 feet - 100 m); 1280x1024 @ 60Hz (500 feet - 150 m)
• USB over-current detection and prevention
• Easy To Operate - Push-button selection between local and remote console
• Local monitor supports DDC; DDC2; DDC2B
• Rack-mountable (rack mount kit included)
• Plug-N-Play - No need for any software driver installation
• 3- year warranty

Package Content
1x GCE500U Local Unit
1x GCE500U Remote Unit
2x Rack-Mount Kit
1x USB KVM Cable
2x Grounding Wire
2x Power Adapters
