GVE4K60KIT: Split* 4K HDMI^® video transmission

up to 10 screens, 165 feet from each other, over CAT-6

Note: A Receiver unit is required for each connected display

• Extend video to a single display, or add addtional receivers to cascade video to up to 10 displays
• Supports resolutions up to 4096x2160 @ 30Hz or 3840x2160 @ 60Hz (4:4:4)
• Near zero latency (1ms) allows use for gaming or other low latency dependent uses

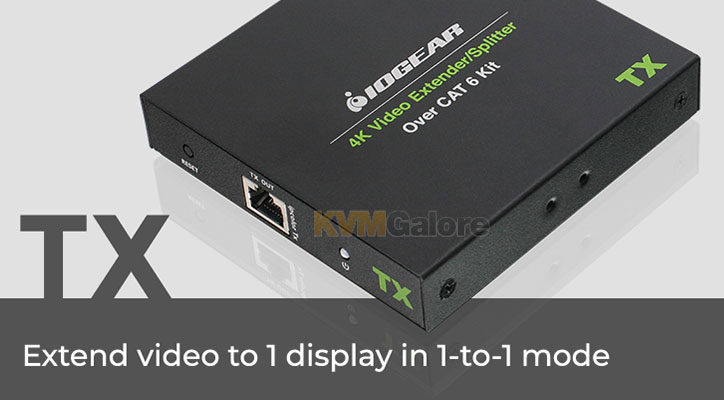

• Transmitter features HDMI output for local display connection

IOGEAR's 4K video extender/splitter over CAT-6 kit is the perfect choice for users who wish to extend or split video over longer lengths than HDMI cables can handle without video degradation issues. HDMI cables max out at 50 feet, while CAT-6 can extend to 230 feet (165 feet between receivers). CAT-6 cables are more efficient to run through walls, attics and crawl spaces. And, CAT-6 cables are 60% less expensive than HDMI cables and are less likely to fail over time.

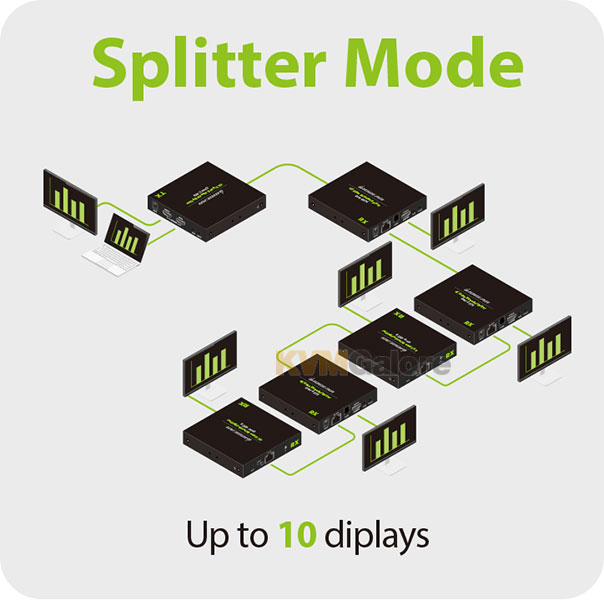

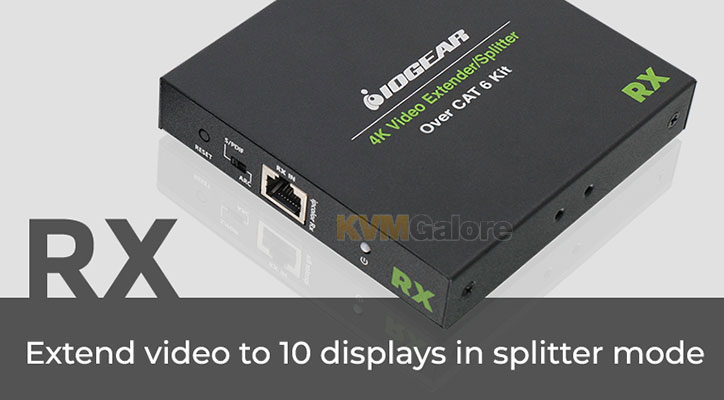

Splitter Mode: The major benefit of this mode is taking one source video and playing it on many receiving screens. For example, in an office/store setting, you have multiple monitors that need to play the same video and are rather far in distance from each other. Cascade up to 10 display devices with 10 receivers.

4K Video Quality
Enjoy cinema-quality video. This 4K extender kit transmits resolutions up to 4096x2160 @ 30Hz or 3840x2160 @ 60Hz (4:4:4) with 18 Gbps bandwidth, with close to zero latency.

Superior Audio Quality

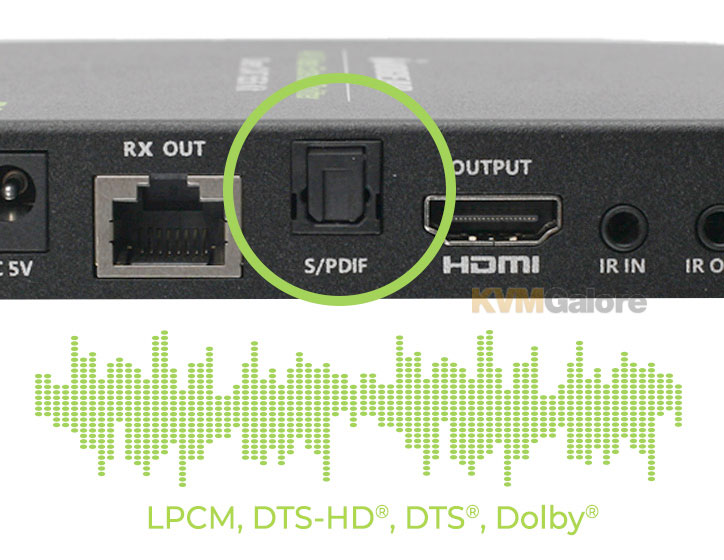

IOGEAR's 4K video extender/splitter kit includes the S/PDIF port to support LPCM, DTS-HD^®, DTS^®, Dolby^® TrueHD 7.1, Dolby^® Digital 5.1 audio formats. With the flip of a switch, select ARC for returning audio from compatible displays. An HDMI loop-out allows an additional display to be connected on the transmitter side.

More Features and Benefits
• Supported audio: LPCM, DTS-HD, DTS, Dolby TrueHD 7.1, Dolby Digital 5.1
• ARC support
• HDR support
• Only one transmitter is needed to cascade up to 10 receivers
• Range of 230 feet to the first receiver; 165 feet between all cascading receivers
• S/PDIF connection for external digital audio
• Bi-directional IR capability allows soure unit control from display and display control from source (additional IR receiver and emitter required for full bi-directional functionality)
• Aluminum housing
• Electrostatic protected

Package Content
1x Transmitter
1x Receiver
2x IR Extension Cables
2x Power Adapters
2x Mounting Kits

Need help with product selection?
Call KVMGalore at 1-800-636-3434, or submit your question on KVMGalore HelpCenter.

* Up to nine Receiver units (purchased separately - see listing below) can be added to this kit, for a total of up to 10 Receiver units
