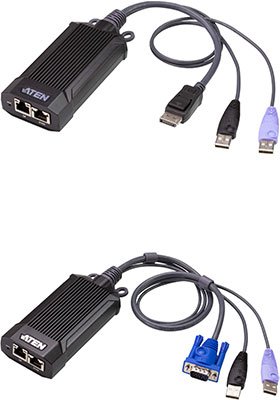

KVM DigiProcessors

DisplayPort, HDMI, DVI or VGA and USB KVM DigiProcessors (dongles)

with fast virtual media for KG-series KVM over IP switches

• Superior video quality - supports video  resolution up to 4K (3840x2160 @ 30Hz) 24-bit color depth
• Distortion-free dynamic video performance up to 328 feet (100m) via a CAT-5e/6 cable
• Virtual media supports fast transmission speeds up to read 265Mbps / write 188Mbps
• Light-weight aluminum die casting shroud - enhanced passive cooling design with streamlining stripe all around the shroud to help quick radiation
• Space saving - 0U and compact design with SR mounting hanger for organized server rack installation
• Bus-powered - no external power adapter required with ultra-low power consumption
• Firmware upgradable

KVM DigiProcessor can centrally connect from the KVM over IP OmniBus Gateway to the target computer.

Their digital signal delivers superior signal compensation for greatly enhanced video quality up to 3840x2160 @ 30Hz, 24-bit color depth and raises the data transfer rate faster than traditional KVM solutions. This plug and play KVM DigiProcessor is built with a powerful SoC that provides excellent video compression performance.

Their zero-U and light weight design allows for an efficient and tidy installation, providing an ideal space-saving solution.

KVM DigiProcessor is perfectly suited to data center, server room, control room and high tech production line applications.

Virtual Media Support for Prompt Server Updates
Mapping media to a remote server as though it were saved locally does the trick for timely troubleshooting, reducing travel cost and minimizing mean time to repair (MTTR). With a superb data transfer rate (i.e. read: 265 Mbps, write: 188 Mbps) proven to be 10 times faster than standard KVM over IP switches, performing firmware upgrades, diagnostic tests, file transfers, and installing software and application patches can all be accomplished smoothly and quickly from a single console located anywhere.

KG1900T: VGA; 1080p

KG6900T: DVI; 1080p

KG8900T: HDMI; 1080p

KG8950T: HDMI; 4K

KG9900T: DisplayPort; 1080p

KG9950T: DisplayPort; 4K
