4x4 HDMI scaling matrix switch and video wall

with fast seamless switching, audio output, and local output, TAA-compliant

• Routes any of 4 HDMI sources to any of 4 HDMI displays
• Local HDMI output – enables previewing of up to 4 video sources in a multi-view window
• Multiple system configuration methods including front panel push-buttons / RS-232 / Ethernet (Telnet / Web GUI) connection, ATEN Video Matrix Control app, and ATEN Control System
• ATEN seamless switching technology – adopts FPGA to unify video formats so as to provide continuous video streams, real-time switching, and stable signal transmission

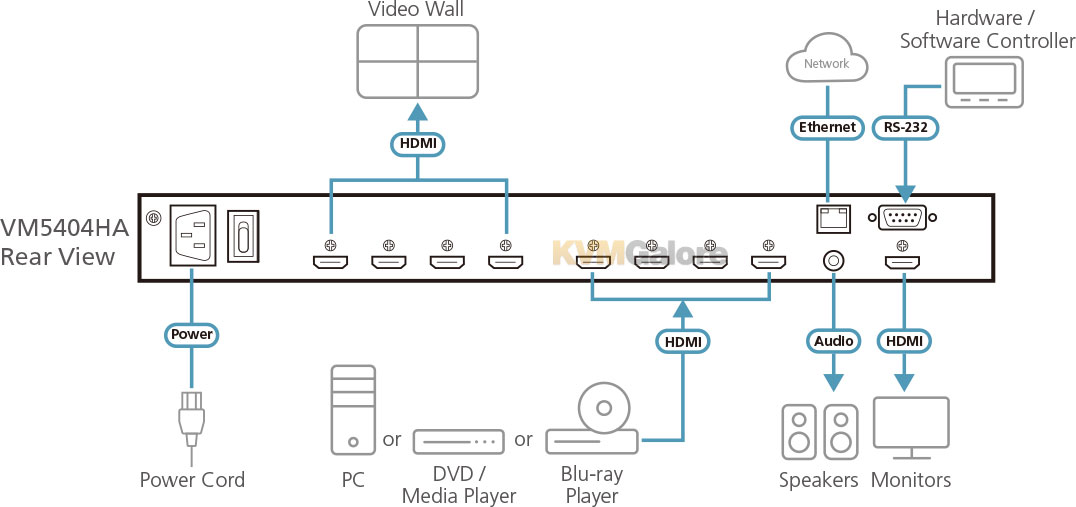

ATEN VM5404HA 4x4 HDMI scaling matrix switch and video wall allows any of the 4 HDMI input signals to be routed to any of the 4 HDMI output channels with no compromise on flexibility.

Multiple methods are available when it comes to controlling the device, such as through the front panel push-buttons, RS-232, and Ethernet (Telnet / Web GUI) connections. Plus, VM5404HA supports ATEN Video Matrix Control app for device status viewing and controlling. It can also be integrated with ATEN Control System, a platform where Ethernet-based ATEN video matrix switches and third-party devices (such as projectors, lights, AV devices) are centrally monitored, managed, and controlled.

Signal management is made efficient with the front panel LCD, giving users a quick view of all port connections. In addition, the local HDMI output port allows real-time monitoring of multiple sources on a single display exactly where the Matrix Switch is located.

As the ultimate video wall solution, the FPGA-based VM5404HA features ATEN's exclusive seamless switching technology, ensuring uninterrupted video streams, real-time control, and stable signal transmission.

The built-in scaler automatically scales any input video feed to match the native resolution of the output display for the best video and picture quality. To prevent screen tearing, VM5404HA adopts FrameSync technology to synchronize the scaler output frame rates to the input signal frame rates, guaranteeing stunning tear-free video walls.

Speaking of audio functionality, the matrix switch features audio de-embedding, enabling digital audio from any HDMI input to be assigned to the stereo output for added flexibility of installation.

VM5404HA is an HDMI video routing solution ideal for scenarios where customizable, real-time AV signal transportation from multiple sources to one or more destinations is required, from control centers, server rooms, to any kind of video wall applications.

Features and Benefits
• Device status can be viewed and controlled via ATEN Video Matrix Control App
• Video-wall functionality via intuitive web GUI* allows for customization of up to 8 layouts for any type of video walls
• Built-in scaler automatically converts input resolutions for optimal appearance on the display
• FrameSync – prevents image tearing by synchronizing the scaler output frame rate to the input signal frame rate
• ATEN seamless switching technology* – adopts FPGA to unify video formats so as to provide continuous video streams, real-time switching, and stable signal transmission
• EDID Expert – selects optimum EDID settings for smooth power-up, high-quality display, and use of the best resolution across different screens
• Audio enabled; HDMI audio can be extracted to stereo audio
• HDMI (3D, Deep color)
• HDCP 1.4 compliant
• Supports Dolby True HD and DTS HD Master audio
• Supports consumer electronics control (CEC)
• ESD protection for HDMI
• Firmware upgradeable
• Rack mountable (1U design)

Package Contents
1x VM0404HA 4x4 4K HDMI matrix switch
1x Power adapter
1x Mounting kit
• Cables are not included

Required Cables (per Port)
1x HDMI, male-male (input)
1x HDMI, male-male (output)

Need help with product selection?
Call KVMGalore at 1-800-636-3434, or submit your question on KVMGalore HelpCenter.

* If seamless switching is enabled, the video output will not display 3D, Deep Color or interlace (i.e., 1080i) resolutions. To make these features available, disabling Seamless Switching is a must.
