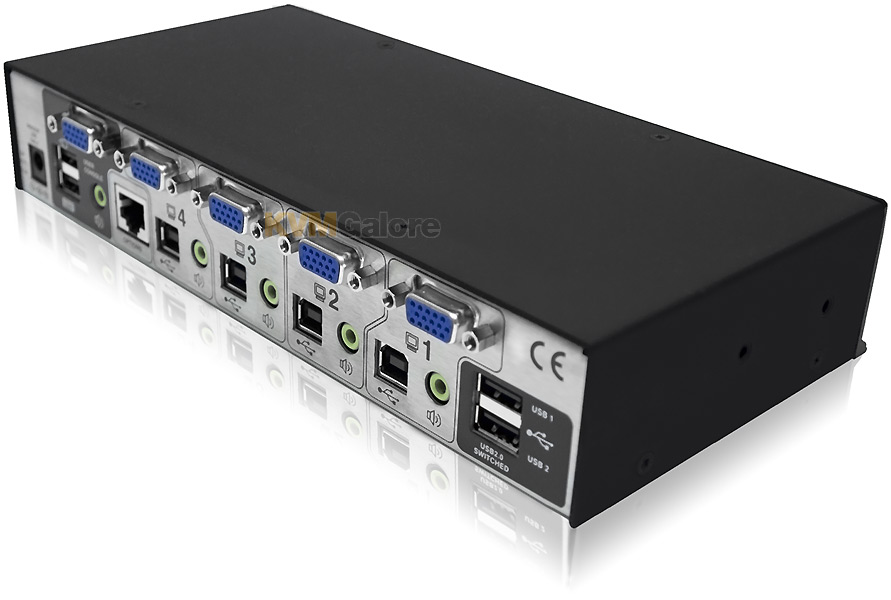

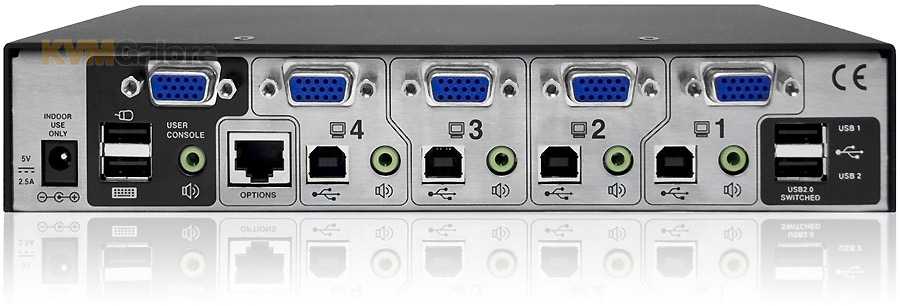

AdderView 4 PRO VGA

Model No. AV4PRO-VGA-US In stock

AdderView 4 PRO VGA
Buy this item and earn 423 ClubPoints.

AV4PRO-VGA: Professional VGA, USB 4-port KVM switch

with USB true emulation technology

AdderView PRO VGA is designed to enable four (4) computers to be controlled from a single high resolution KVM console using high definition analog VGA video links.

AdderView PRO VGA switch makes use of Adder's True Emulation technology which enables USB HID devices to be continuously emulated to each computer. This unique technology enables instantaneous and reliable hot key switching while also supporting the extra keys and features of enhanced keyboards and mice.

Furthermore, AdderView PRO VGA includes two independently switchable USB 2.0 channels and an audio channel, giving the user the flexibility to attach selected peripherals to different computers.

High Definition VGA with Extended Profile DDC EDID
The AdderView PRO features high resolution VGA video with extended profile DDC EDID. The extended DDC EDID profile ensures that the switched graphics card is always optimised to work with your screen. The high definition analog VGA video capabilities enable users to work at very high resolutions on each head for resolution intensive applications such as medai/graphic design or detailed medical imaging.

True Emulation USB 2.0 Technology
The AV4PRO-VGA belongs to the first KVMA range of switches to feature Adder's advanced True USB Emulation technology. Emulated USB provides an instantaneous and reliable switching action and makes keyboard hotkey and mouse switching possible. Previous implementations have used generic emulations and consequently have only been able to support the most basic keyboard and mouse features. Adder's revolutionary True Emulation technology overcomes this frustrating limitation by emulating the true character of the connected devices to all the computers simultaneously. This means that you can now use the extra function keys, wheels, buttons and controls that are commonly found on modern keyboards and mice. With AdderView PRO VGA, a whole new group of users can take advantage of the flexibility KVM switches have to offer. Users in architecture, graphic design, post production, animation, medical imaging etc. often need to use specialised interface devices such as graphics tablets, 3D explorers, joysticks, and so on. The AdderView PRO VGA makes all this possible.

Independent Simultaneous Device Selection
Flexibility is key to the AdderView PRO. The switch enables you to use the KVMA console to work on one computer whilst your USB peripherals are connected to other computers and your speakers are playing music from yet another. You can of course still switch all connected devices to any one of the connected computers as with any other KVM switch.

Channel Selection Options
The AdderView PRO can be switched using selectable keyboard hotkeys, 3 button mice or the front panel controls. Optionally, you can also use the RC4 remote switch to make your selection.These switching options allow you to rapidly reasign connected devices to any of the connected computers.

Broad USB 2.0 Hi Speed Device Support
A vast range of USB devices can be connected to the AdderView PRO, from non standard human interface devices to printers and scanners. This gives great flexibility. For example, you could be scanning a set of documents onto one computer whilst working on another and printing from yet another, all at the same time. The USB 2.0 switching action has been carefully engineered to ensure maximum computer reliability when connecting and disconnecting USB devices.

Options Port for Control, Synchronisation and Upgrade
An 'Options' port enables the AV4PRO-VGA to be remotely switched using simple ASCII codes. When the channel is switched, the same ASCII codes are echoed to the 'Options' port and so, by linking 'Options' ports, two or more units can be switched in synchrony to switch more than 4 video heads. The port enables a 4 button switch unit (RC4) to be used with the AdderView PRO. The same port can also be used to upgrade the firmware to guarantee that your hardware investment continues to deliver real value well into the future.

In the Box
1x AV4PRO-VGA unit
4x Self-adhesive rubber feet
1x Power adapter (12.5W) and U.S. power lead
Cables are not included

Required Cables (per port)
1x VGA/USB/Audio KVM cable
1x VGA, male-male
1x USB, Type-A to Type-B
1x 3.5mm audio cables, male-male
