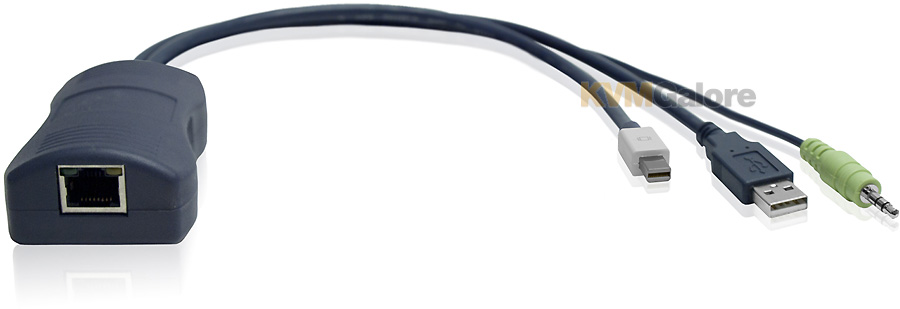

CATX-MDP-USBA: CATx USB/Mini-DisplayPort/audio computer access module (CAM) "dongle"
CAT-X USB/Mini-DisplayPort/Audio computer access module (CAM) is a highly compact device that allows you to extend your Mini-DisplayPort equipped computer over CATx cable up to 300 meters.
The CAM connects to the Mini-DisplayPort video connector plus USB and audio ports on your computer and then connects via CAT-5, 5e or 6 cabling to the AdderView CATx KVM switches and/or Adder extender receivers (either AdderLink X2 Silver or X200), each of which can be located up to 300 meters from the module.
Your video display, keyboard, mice and speakers are then all linked to the remote device.
The CAT-X Mini DisplayPort CAM uses the USB port to derive its power from the host computer, dispensing with the need for a separate power supply and thus simplifying installation. Therefore the USB cable must always be connected to a USB port on the computer that is capable of providing up to 500mA. Power is not taken from the DisplayPort connector.
EDID Display Information
The module will check during power up the EDID information available from the KVM switch or extender that is connected to the monitor and passes this back to the computer.
The CAM supports low speed (1Mb/s) HID USB devices only.
2 channel CD quality audio is supported via a 3.5mm jack plug. Audio is not available through the Mini-DisplayPort connector.
