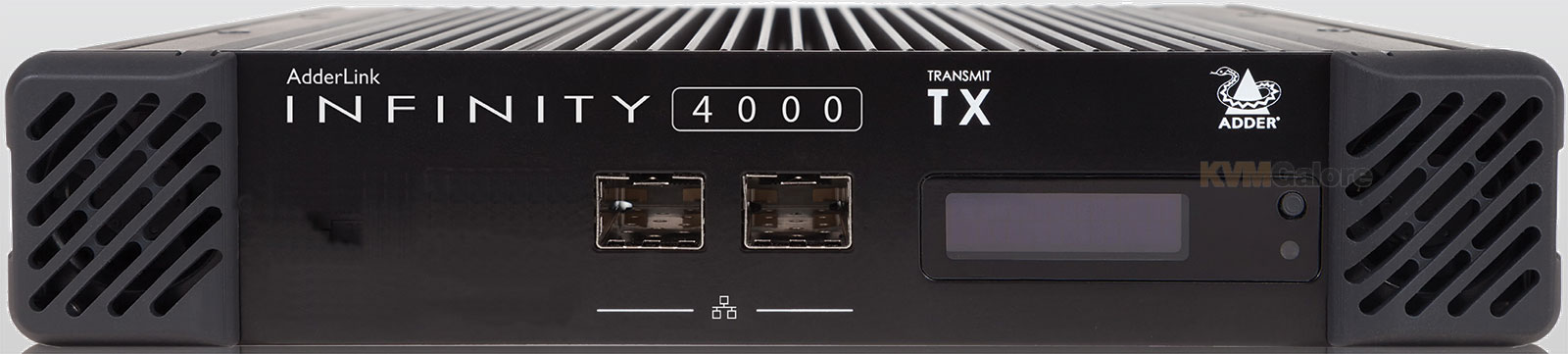

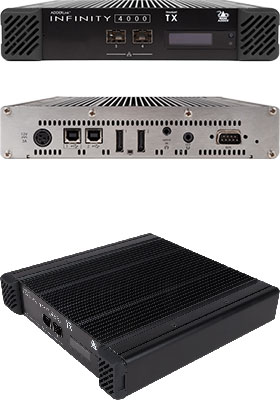

Image 1 of 6 - AdderLink INFINITY 4001 Transmitter, Front view. view

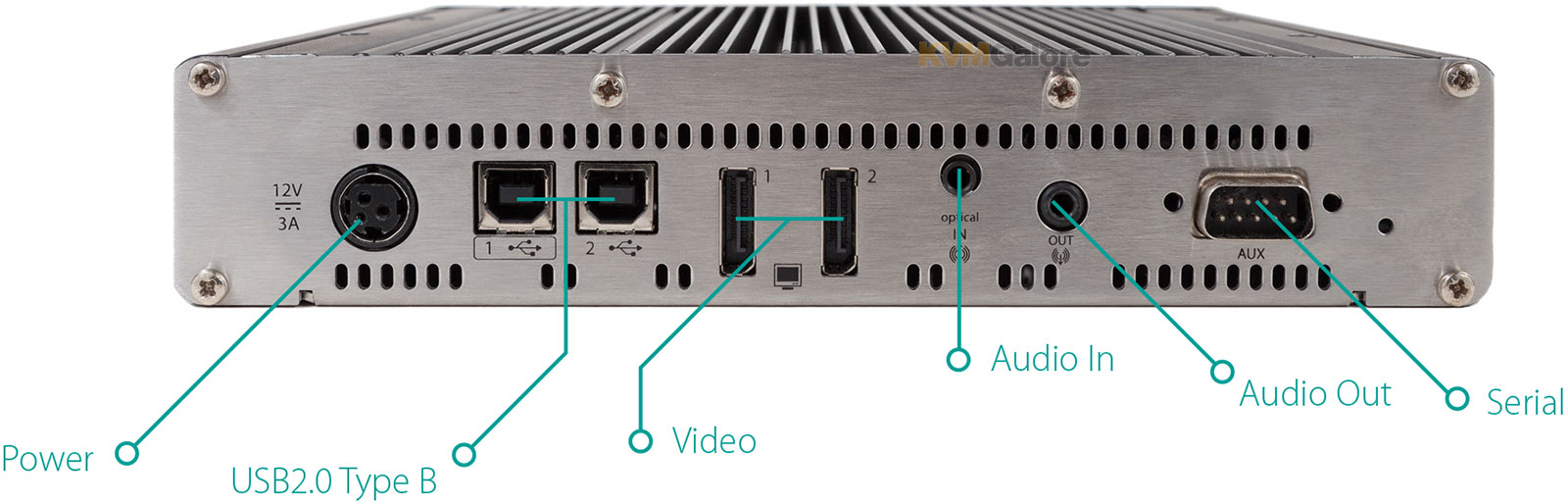

Image 2 of 6 - AdderLink INFINITY 4001 Transmitter, back view. view

Image 3 of 6 - AdderLink INFINITY 4000 Transmitter and Receiver are directly linked to each other for a point-to-point extension (no network) application. view
Image 4 of 6 - AdderLink INFINITY 4000 Transmitter and multiple Receivers are connected via networked links for a one-to-many (true-share or reverse KVM) application. view

Image 5 of 6 - AdderLink INFINITY 4000 multiple Transmitters and multiple Receivers are connected via networked links for a many-to-many (matrix switching) application (A.I.M. Manager is required). view
Image 6 of 6 view

AdderLink INFINITY 4001 Transmitter

Model No. ALIF4001T-US In stock

AdderLink INFINITY 4001 Transmitter
Buy this item and earn 2,469 ClubPoints.

ALIF4001T: A dual-head 5K DisplayPort, audio and USB 2.0 IP KVM extension/switching/matrix system

over CATx or fiber using a standard 1~10GbE IP network


Note: Receiver units are purchased separately

• Dual-head 5K video, digital audio and hi-speed USB 2.0 over a single link
• Supports up to 10-bit per color SDR and HDR10
• Pixel-perfect image quality
• Support for 240Hz frame rate at HD resolutions
• Multi-channel digital audio via DisplayPort™ connectivity
• Adder's USB True Emulation for fast switching
• Backwards compatibility with all of the ALIF range
• Flexible and scalable
• Full touch screen control with floating launch icon and on screen keyboard
• Plug and play

AdderLink INFINITY 4000 series (ALIF4000) is the world's first dual-head, 5K high performance IP KVM matrix over a single fiber. Fully compatible with the existing AdderLink INFINITY (ALIF) range, and supported by AdderLink INFINITY Manager (AIM), ALIF4001 can be used as a point-to-point extender or easily integrated into a wider matrix system.

With support for multigigabit Ethernet connectivity, improved dual-head 5K video resolutions and enhanced multi-channel digital DisplayPort audio, AdderLink INFINITY 4001 is the ideal solution to help you take control of your KVM workflow.

AdderLink INFINITY 4001 (ALIF4001) is a dual-head 5K DisplayPort, audio and USB 2.0 CATx or fiber IP KVM system for A/V and KVM extension and switching over a single link using a standard 1/2.5/5/10GbE IP network.

AdderLink INFINITY 4001 delivers pixel-perfect, color accurate picture quality and USB 2.0 with fast switching. Fully compatible with the existing INFINITY range and supported by the trusted AdderLink INFINITY Manager (AIM), AdderLink INFINITY 4001 can be used as a point-to-point extender or easily integrated into a wider matrix system, enabling KVM users to migrate to 5K without the need to rip and replace.

Configurations
AdderLink INFINITY can be configured to deliver the ultimate in system flexibility:
• Multicasting: The video output from any Transmitter can be multicast to many Receivers. The video data only exists once on the network, and each connected user (Receiver) can view the output simultaneously.
• Full Control: A user has full control of computer 1. The user is viewing the video output, listening to the audio, using a local USB peripheral and has full keyboard and mouse control.
• Mixed Receiver: Here a user is viewing the output video from computer 2 with full keyboard, mouse and local USB device control at the user's desk. At the same time, this user is listening to audio from Computer 1.
• A/V Only: A user position is configured to display video and play audio only. A/V selection may be from different sources.
• Share Mode: In share mode, two or more users have simultaneous access to a shared computer enabling collaboration or advanced control applications.
• Any to Any: In Any to Any mode, connections are fully independent enabling one user to access the first computer while another user accesses another computer etc. This mode supports large scalable matrix switching scenarios.

One-to-one configuration (extension)
The simplest configuration links one Receiver unit to a single Transmitter unit, either by a direct link or over much greater distances via a 10GbE Ethernet network.

One-to-many configuration (also known as True Share or Reverse KVM)
Using multicast techniques, an unlimited number of Receivers can receive video and audio data streams from a single Transmitter unit. A maximum of twelve concurrent USB inputs (via multiple Receiver units) are permitted to a single Transmitter unit.

Many-to-one and many-to-many configuration
Each Receiver unit can switch between different Transmitter units. Multiple instances of many-to-one and one-to-many configurations produce a highly flexible many-to-many installation.

Creating an unmanaged matrix
Although AdderLink INFINITY 4000 units are most often organised and managed by a central AIM server, it is possible to create small networks of AdderLink INFINITY 2000/4000 units, most often in matrix arrangements, i.e. multiple Transmitter and Receiver units which can freely cross-connect.

This method of connection works well for small numbers of Transmitter and Receiver units, but will become more difficult to manage as more units are attached. The maximum number of Transmitter sources that can be made available to any Receiver unit is 16 (sixteen).

AdderLink INFINITY managed matrix
With the addition of the AdderLink INFINITY Management System (AIM), multiple point-to-point extenders can be turned into a truly scalable digital KVM matrix system, that allows any workstation to link with any computer connected to the network.

Adderlink Infinity

Learn more...

IP Network-Based
Leverage standard 10GbE networking infrastructure to extend or matrix your computing resources to your users! AdderLink INFINITY 4001 units can be used as point-to-point extenders over CATx or fiber cable, or made into a flexible IP-based matrix using standard Ethernet switches and the AIM Manager. AdderLink INFINITY 4001 is the perfect solution for any application including for an office, campus, command center, video wall, editing studio, or as a digital signage solution.

Dual-head 5K screens over a single link
AdderLink INFINITY 4001 (ALIF4001) can deliver two 5K screens over a single link

10-bit per color and HDR10
Allows greater color depth, supports both SDR10 and HDR10

Perfect digital video
Using the same encoding system as the other products in AdderLink INFINITY (ALIF) range, the digital video is spatially lossless, with 1:1 pixel mapping, ensuring that the digital video you receive is the same as the one leaving your remote computer

Support for 5K resolution
5K video resolution supported for high resolution and ultra-wide video applications (5120x1440 @ 60Hz or 5120x2880 @ 30Hz)

High frame rate support
Refresh rates up to 240Hz supported for HD video resolutions

Audio capability
Multi-channel digital audio, via DisplayPort™, provides a high-quality immersive sound experience

High speed USB 2.0 with emulation and class control
AdderLink INFINITY 4001 supports transparent USB communication up to 480Mbps of USB devices from mice and keyboards to touch screens, graphics tablets, jog shuttles, joysticks and 3D explorers, alongside mass storage devices. True USB emulation technology also allows for fast keyboard and mouse or touch switching. For applications where security is of high importance, the system can disable the use of non-HID devices, meaning there is no need to physically block USB ports to prevent the use of mass storage devices.

Multigigabit Ethernet support
Multirate (1/2.5/5/10) GbE support enables premium video performance over standard CAT-6 cable up to 328 feet (100 m)

Enterprise-grade security
All AdderLink INFINITY units have built-in security measures compliant with universal enterprise grade security standards inlcuding AES 256 bit encryption and RSA 2048 bit public key authentication

Isochronous communication
Plug and play support for USB devices and third-party tools, such as Blackmagic® Design DaVinci Resolve® Color Grading Panels

Backward compatibility
ALIF4001 can integrate seamlessly into your existing AdderLink INFINITY setup, replacing or working in conjunction with your existing ALIF endpoints

Unlimited extension distances
10GbE fiber-optic technology offers much greater extension distances over traditional CATx cables. Extension distance is also not limited to a single fiber cable length - If you need to extend further, simply add a 10GbE network device. This can be repeated many times for longer distances.

Redundant network operation
AdderLink INFINITY 4001 units are able to detect whether the network is in operation and can automatically change to its second network 10GbE SFP port if it detects a failure

Onboard diagnostics tool
Diagnostics tool maximizes uptime and assists with technical support enquiries by allowing the customer to troubleshoot network issues directly from the unit

Flexible and scalable
Each ALIF4001 unit can be configured as a simple extender or distributed KVM switch - each receiver can see up to 16 sources or can be connected to AdderLink INFINITY Manager (AIM) to create a larger and more fully featured matrix

Rack-mounting option
AdderLink INFINITY 4001 units can be used at a desktop or be rack mounted two side-by-side in 1U with the optional RMK12 mounting kit

Features and Benefits
• Dual-head 5K screens over a single link: AdderLink INFINITY 4001 can deliver two 5K60 screens over a single link
• Multigigabit Ethernet support: Multirate (1/2.5/5/10) GbE support enables premium video performance over 5Gb/s copper links using 328 foot of standard CAT-6 cable
• Support for 1GbE: Integrated 1GbE ports enable easy delivery of 4K/60 video over ubiquitous 1Gb/s copper links using 328 foot of standard CAT-5e or CAT-6 cable
• Support for 5K resolutions: 5K video resolutions supported for high resolution and ultra-wide video applications (5120x1440 @ 60Hz or 5120x2880 @ 30Hz)
• IP-based: use your existing standard 1~10GbE networking infrastructure to extend or matrix your computing resources to your users. Supports teaming for network resilience and redundancy
• Perfect digital video: using the same encoding system as the other products in AdderLink INFINITY range, the digital video is spatially lossless, with 1:1 pixel mapping, ensuring that the digital video you receive is the same as the one leaving your remote computer
• Backwards compatibility: AdderLink INFINITY 4001 can integrate seamlessly into your existing AdderLink INFINITY setup, replacing or working in conjunction with your existing ALIF endpoints
• Digital KVM matrix: by the addition of AdderLink INFINITY Management system (AIM) you can turn multiple point to point extenders into a matrix system that allows any workstation to connect to any computer connected to the network. See the AIM datasheet for details
• Audio capability: analog audio (Line In, Line Out) to support headsets and microphones
• EDID management: the system has intelligent EDID management to either allow the true characteristics of the monitor to be passed back to the computer, or controlled resolutions to be imposed
• Plug and Play: AdderLink INFINITY 4001 devices are shipped in a zero configuration state so you can plug them in and start working on them straight away - There is no need for drivers or software to be installed

Package Contents
1x AdderLink INFINITY 4001 Transmitter (Tx) unit
1x Power adapter with locking connector and country-specific power cord
2x DisplayPort video cables (6.5 feet)
2x USB Type-A to Type-B cables (6.5 feet) (VSC24)
2x 3.5mm stereo audio cables (6.5 feet)
4x Self-adhesive rubber feet
1x Quick start guide
1x Safety document
